30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) CAMSHAFT AND VALVES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

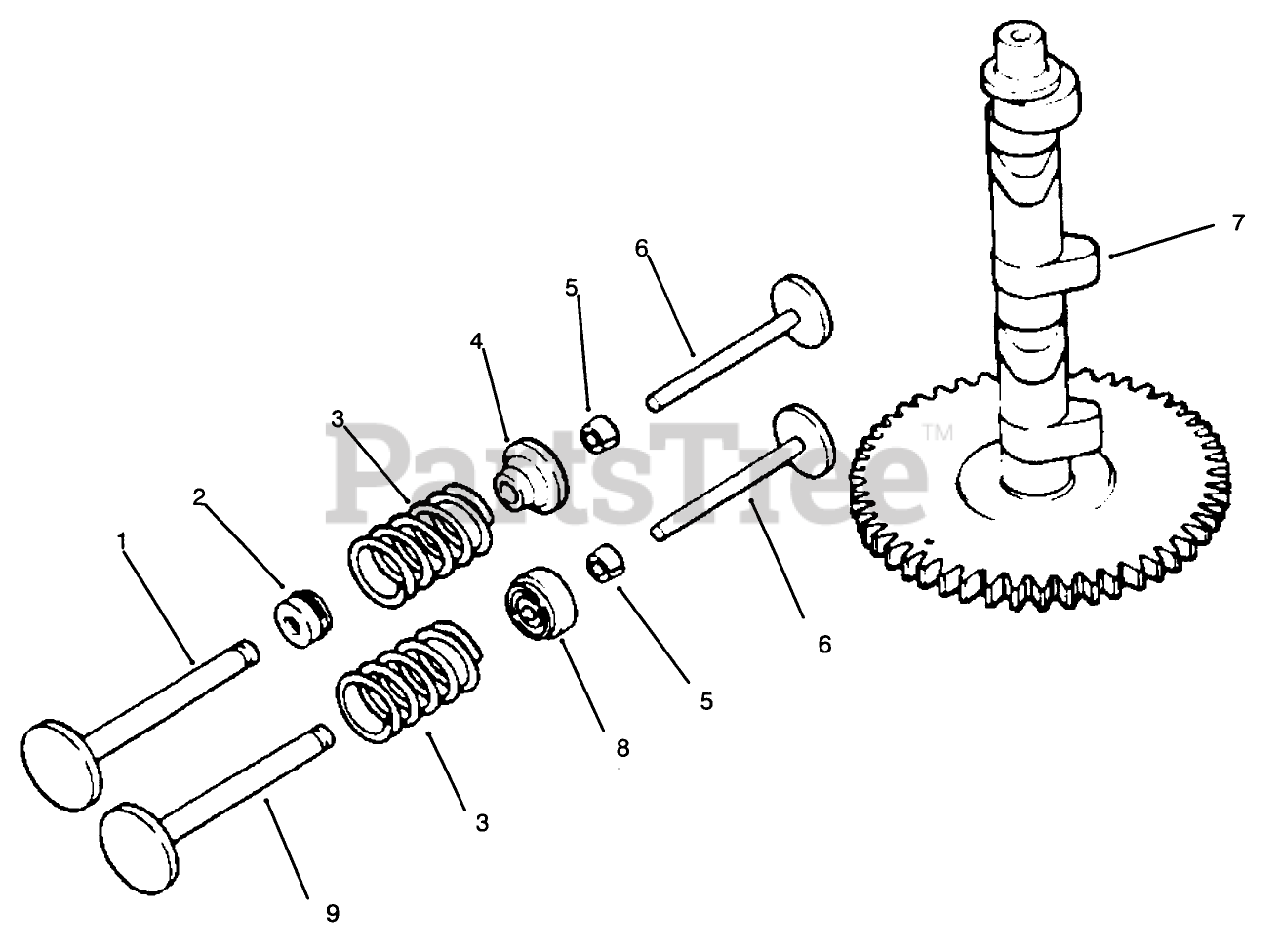

CAMSHAFT AND VALVES Parts Diagram

  • Title

1

5201708

Valve-Intake

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

5203213

Seal-Intake Valve Stem

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

2508901

Spring-Valve

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$9.49

$

In Stock, Qty 11

0

5

Kohler 4175510

Kit-Retainer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

5201903

Tappet

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

5201209

Camshaft

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

Kohler 52 413 01

Rotator-Valve
(Superseded to 52 413 01-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$35.99

$

Usually ships in 2-5 days

0

9

5201605

Valve-Exhaust

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
