30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) CARBURETOR Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

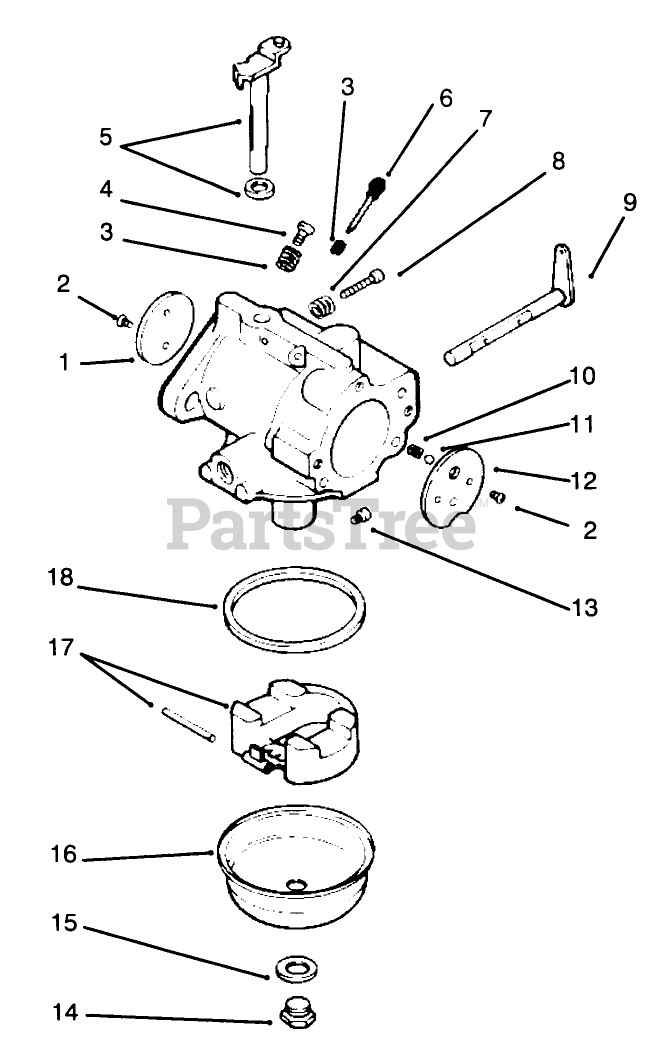

CARBURETOR Parts Diagram

  • Title

1

2514602

Plate-Throttle

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

2508627

Screw

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

2508902

Spring

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

2536801

Needle-Idle Fuel Adj.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

5214424

Shaft-Throttle

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

Kohler 25 368 03

Needle-Main Fuel
(Superseded to 25 368 03-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$9.99

$

Usually ships in 2-5 days

0

7

2508904

Spring

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

2508626

Needle-Main Fuel

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

5209013

Lever-Choke

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

10

2508903

Spring-Choke Friction

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

11

2519401

Ball-Choke Friction

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

12

2514603

Plate-Choke

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

5233706

Jet-Main

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

14

2510005

Screw-Bowl Retainer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

15

2504103

Gasket-Retainer Screw

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

16

2510401

Bowl-Fuel

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

17

2575709

Kit-Float

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

18

2504104

Gasket-Bowl

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

Kohler 25 757 11

Carburetor Repair Kit
(Superseded to 25 757 11-S)

Note: Not illustrated

$88.99

$

In Stock, Qty 6

0

Kohler 25 757 11

Carburetor Repair Kit
(Superseded to 25 757 11-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$88.99

$

In Stock, Qty 6

0

5275598

Kit-High Altitude

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5275598

Kit-High Altitude

Note: Not illustrated

$

$

Not available

Kohler 52 853 25

Carburetor Kit w/Linkage
(Superseded to 52 853 25-S)

Note: Not illustrated

$

$

Not available

Kohler 52 853 25

Carburetor Kit w/Linkage
(Superseded to 52 853 25-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
