30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) CYLINDER HEAD, CRANKSHAFT, PISTONS AND CONNECTING RODS Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

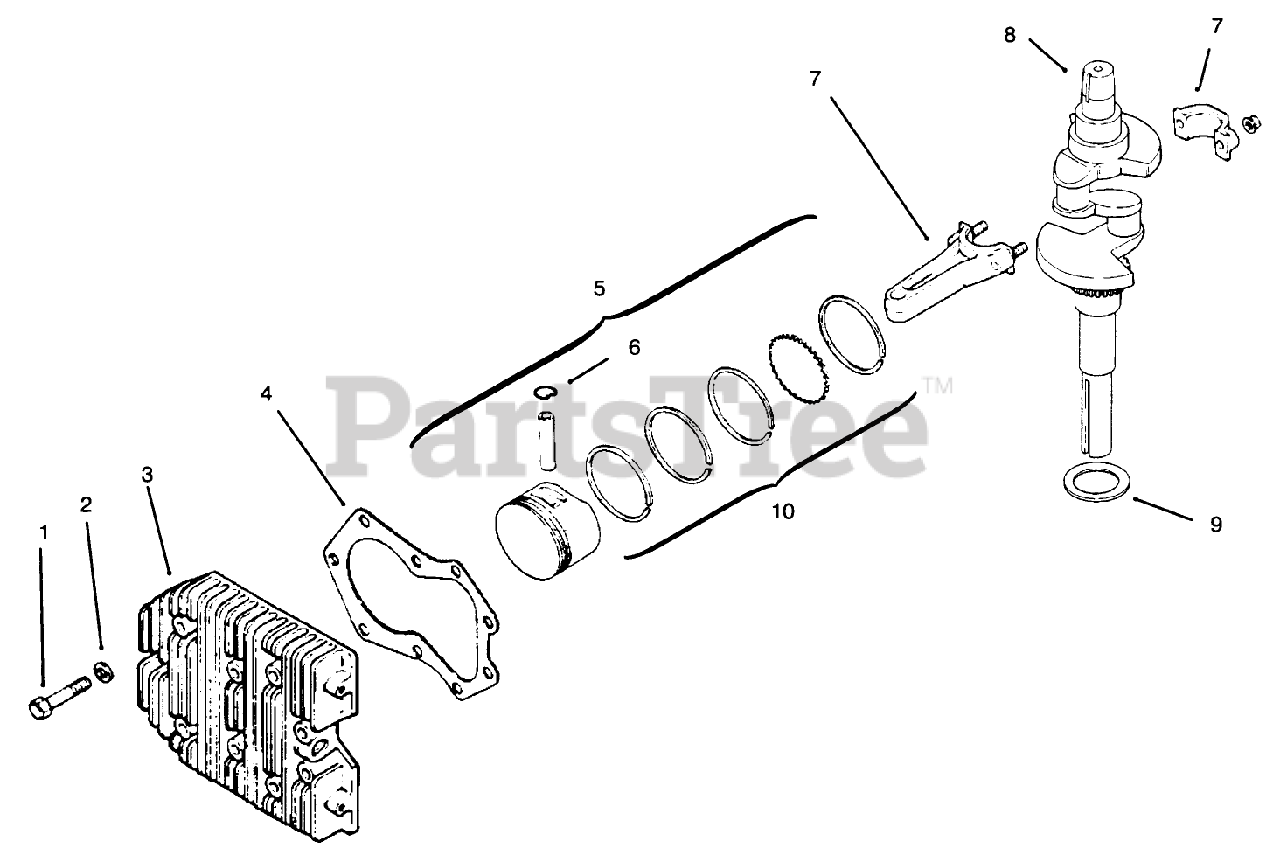

CYLINDER HEAD, CRANKSHAFT, PISTONS AND CONNECTING RODS Parts Diagram

  • Title

1

4108602

Screw-Hex. Hd.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

Kohler 220534

Washer
(Superseded to 220534-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$5.49

$

In Stock, Qty 5

0

3

5201510

Head-Cylinder

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

5204120

Gasket-Head

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

5287411

Piston-w/Ring Set (Std.)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5287412

Piston-w/Ring Set (.003)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5287412

Piston-w/Ring Set (.003)

Note: Not illustrated

$

$

Not available

5287413

Piston-w/Ring Set (.010)

Note: Not illustrated

$

$

Not available

5287413

Piston-w/Ring Set (.010)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5287414

Piston-w/Ring Set (.020)

Note: Not illustrated

$

$

Not available

5287414

Piston-w/Ring Set (.020)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5287415

Piston-w/Ring Set (.030)

Note: Not illustrated

$

$

Not available

5287415

Piston-w/Ring Set (.030)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

Kohler 230004

Retainer, Pin
(Superseded to 230004-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$6.49

$

In Stock, only 2 left!

0

7

5206767

Rod-Connecting (Std.)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5206768

Rod-Connecting (.010)

Note: Not illustrated

$

$

Not available

5206768

Rod-Connecting (.010)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

5201493

Crankshaft

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

5246803

Washer-.119/.122

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5246804

Washer-.128/.131

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5246804

Washer-.128/.131

Note: Not illustrated

$

$

Not available

5246805

Washer-.137/.140

Note: Not illustrated

$

$

Not available

5246805

Washer-.137/.140

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

10

5210809

Ring-Set (Std. & .003)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

Kohler 52 108 10

Ring-Set(.010)
(Superseded to 52 108 10-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

Kohler 52 108 10

Ring-Set(.010)
(Superseded to 52 108 10-S)

Note: Not illustrated

$

$

Not available

Kohler 52 108 11

Ring-Set(.020)
(Superseded to 52 108 11-S)

Note: Not illustrated

$147.99

$

Usually ships in 2-5 days

0

Kohler 52 108 11

Ring-Set(.020)
(Superseded to 52 108 11-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$147.99

$

Usually ships in 2-5 days

0

5210812

Ring-Set (.030)

Note: Not illustrated

$

$

Not available

5210812

Ring-Set (.030)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
