30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) OIL PUMP AND DIPSTICK Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

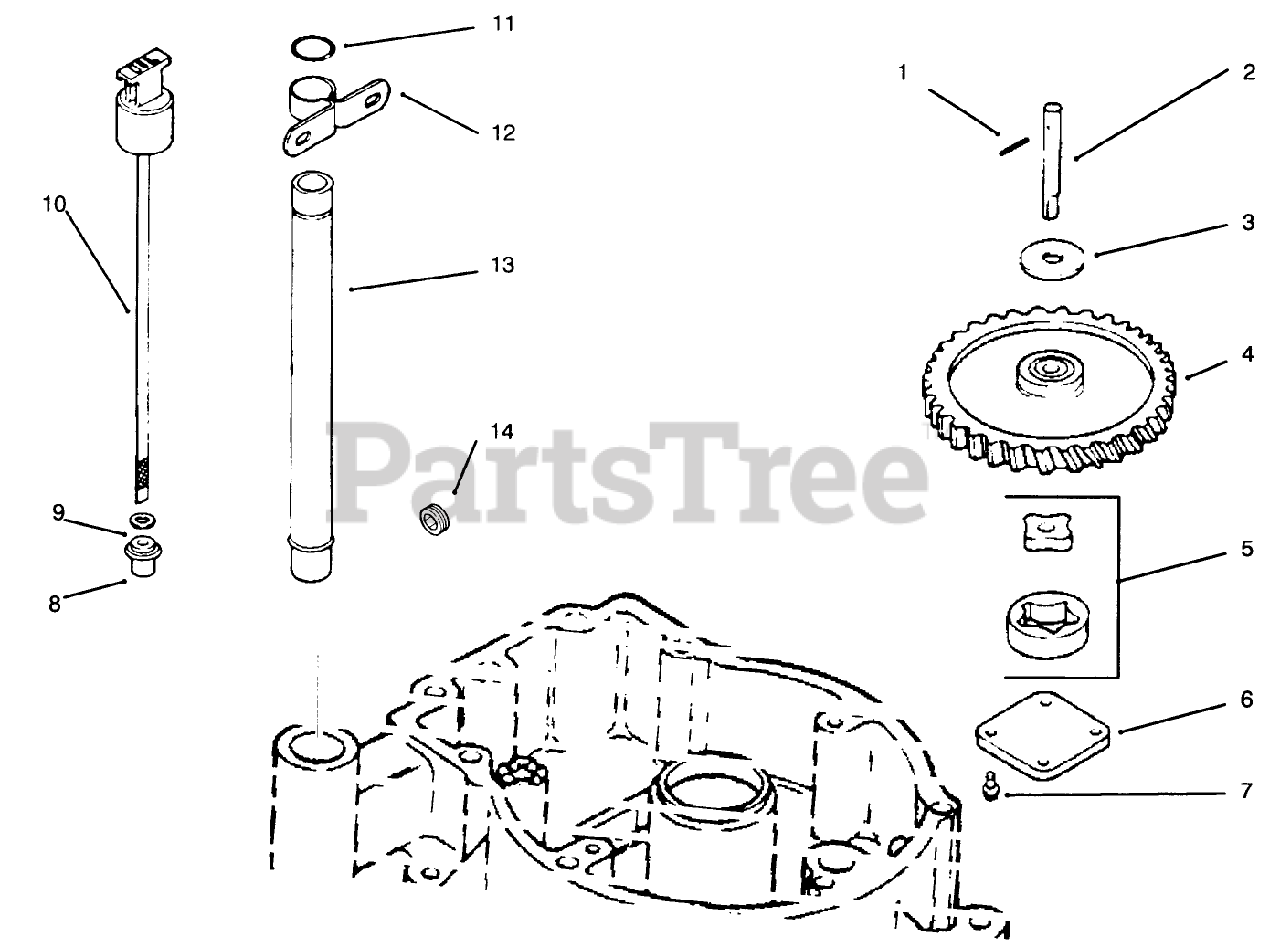

OIL PUMP AND DIPSTICK Parts Diagram

  • Title

1

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

In Stock, Qty 11

0

2

5214423

Shaft-Oil Pump

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

5242201

Spacer-Shim

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

Kohler 52 043 05

Gear-OiIPump
(Superseded to 52 043 05-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

5239323

Rotor Set

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

5209650

Cover-Oil Pump

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

5208621

Screw-Hex. Washer Hd.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

5203214

Seal-Rubber

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

Kohler X-25-44

Screw
(Superseded to X-25-44-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

Usually ships in 2-5 days

0

10

5203814

Dipstick (Incl. Ref. #8-9)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

11

Kohler 41 153 01

O-Ring
(Superseded to 41 153 01-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$5.49

$

Usually ships in 2-5 days

0

12

5212611

Bracket-OilTubeSupport

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

5212320

Tube-Oil Fill

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

14

4713901

Plug-Countersunk Hex.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
