30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) STARTER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

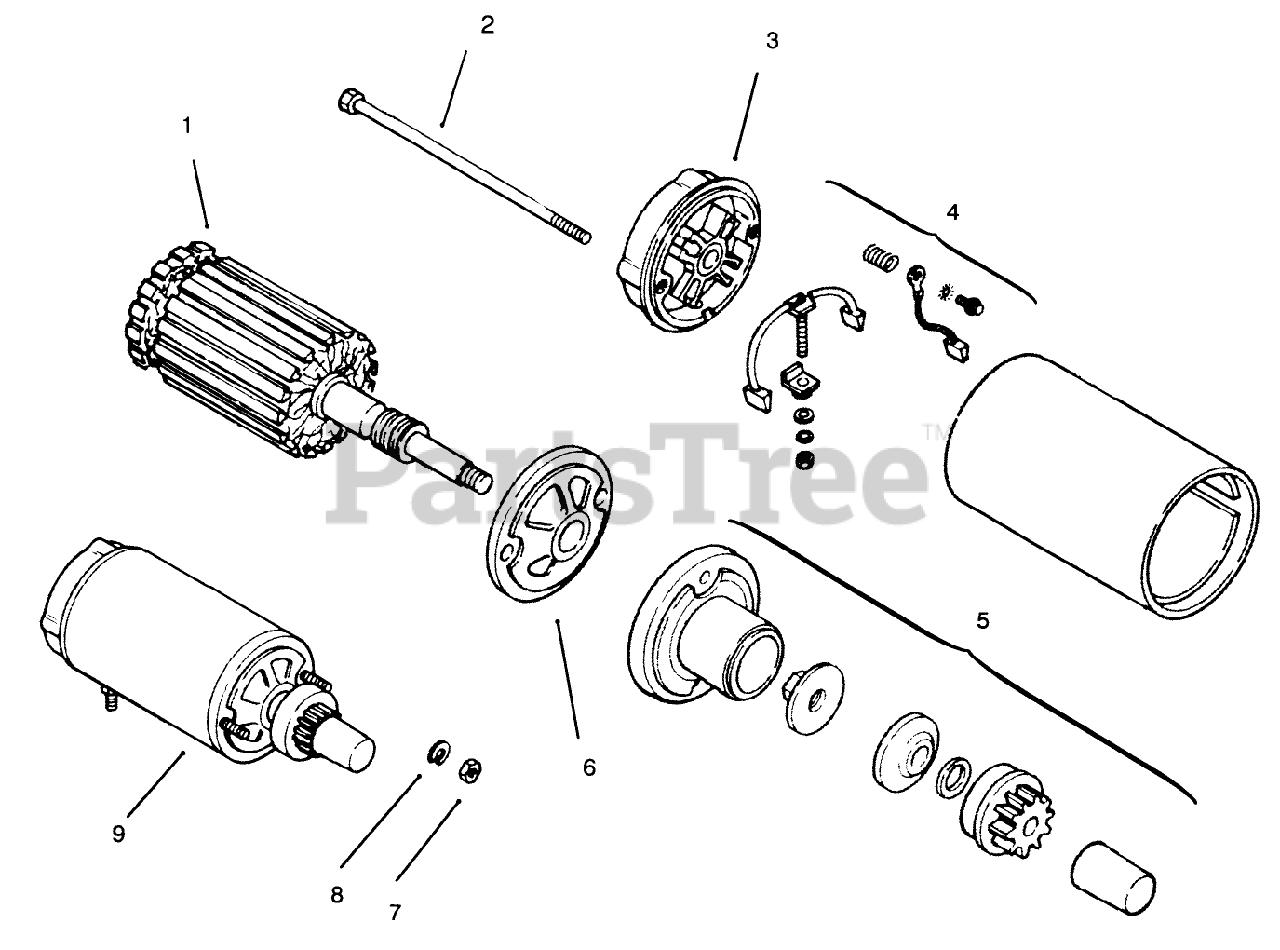

STARTER Parts Diagram

  • Title

1

5217005

Armature

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

5221101

Bolt

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

5222710

Cap-Commutator End

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

4875528

Kit-Brush

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

5275526

Kit-Drive

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

5208107

Cap-Drive End

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

Toro x-81-1

Nut

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Currently unavailable

8

Toro X-20-1

Washer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Currently unavailable

9

5209812

Starter Assembly (Incl. Ref.#1-8)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5235701

Lubricant

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5235701

Lubricant

Note: Not illustrated

$

$

Not available
