30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) TRANSMISSION, IDLER, DRIVE PULLEYS & DRIVE BELT Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

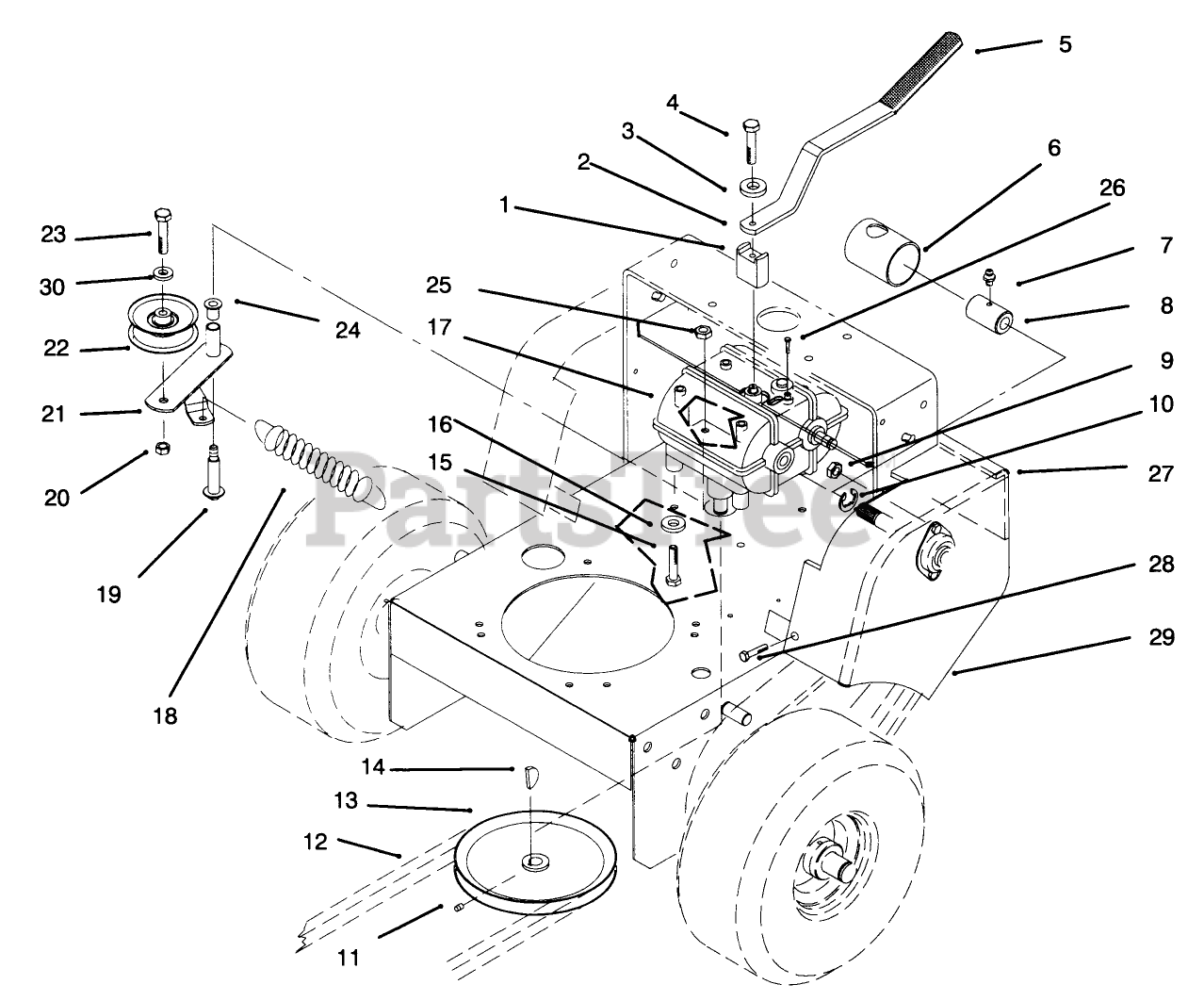

TRANSMISSION, IDLER, DRIVE PULLEYS & DRIVE BELT Parts Diagram

  • Title

1

Toro 72-2190

MOUNT-LEVER, SHIFT

$31.99

$

In Stock, only 1 left!

0

2

Toro 74-0320

Lever-Shift
(Superseded to 74-0320-01)

$52.99

$

Usually ships in 3-6 days

0

3

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

4

Toro 329-10

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

5

Toro 47-1970

GRIP

$17.99

$

Usually ships in 3-6 days

0

6

Toro 51-4220

GUARD-COUPLER

$21.99

$

In Stock, only 1 left!

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 51-4260

COUPLER

$70.99

$

In Stock, Qty 7

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, only 1 left!

0

11

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

12

Toro 26-9671

BELT V

$37.99

$

In Stock, only 1 left!

0

13

Toro 51-4190

PULLEY-DRIVEN

$99.99

$

In Stock, only 2 left!

0

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

17

Toro 74-0610

TRANSMISSION

$

$

Not available

18

Toro 68-2190

SPRING

$81.99

$

Usually ships in 3-6 days

0

19

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 82-4800

Lever-Idler (Incl. Ref. #24)
(Superseded to 16-7509)

$204.99

$

Usually ships in 3-6 days

0

22

Toro 62-4540

PULLEY

$101.99

$

In Stock, only 2 left!

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 256-155

BUSHING-FLANGE

$2.49

$

In Stock, only 2 left!

0

25

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

26

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

27

Toro 93-7431

Guard-Shaft Trans.
(Superseded to 93-7431-03)

$

$

Not available

28

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

29

Toro 93-7434

GUARD - LH BELT

$

$

Not available

Toro 93-7433

GUARD - RH BELT

$

$

Not available

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
