30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) Carburetor/fuel Pump Kohler Engine Cv18s - Ps 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

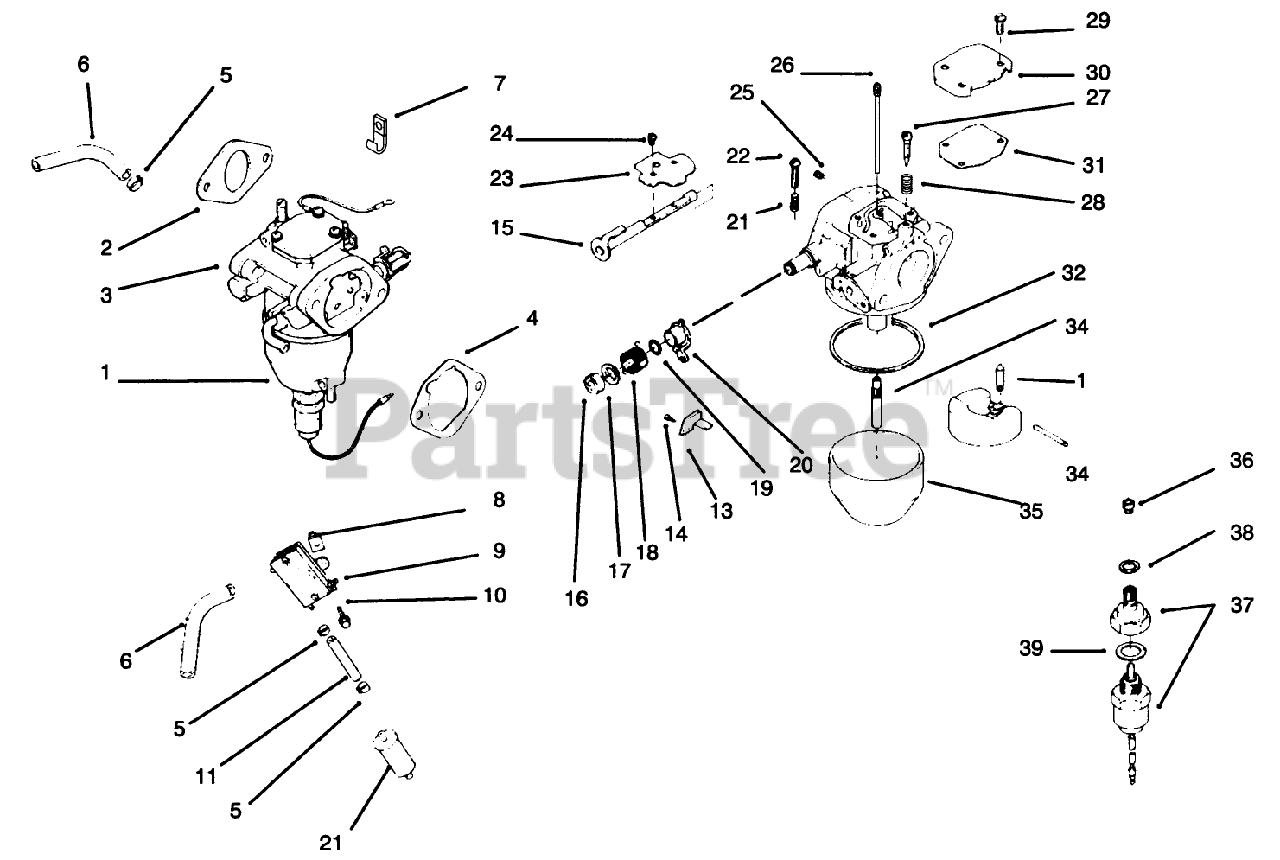

Carburetor/fuel Pump Kohler Engine Cv18s - Ps 61521 Parts Diagram

  • Title

1

Toro 24 853 22

Kit-Carburetor (Incl. Ref.#2-4)

$

$

Currently unavailable

2

Toro 24_041_15

Gasket-Carburetor (Only On: 72103)

$

$

Currently unavailable

3

Toro 24 053 17

Carburetor (Ref. Only) (Inc. Ref.15-39)

$

$

Currently unavailable

4

Toro 24 041 14

Gasket-A/C Base (Only On: 72103, 72083)

$

$

Currently unavailable

5

Toro X-426-9

Clamp

$

$

Currently unavailable

6

Toro 52_353_22

Line-Fuel 12" (Only On: 72103)

$

$

Currently unavailable

7

Toro 47 154 01

Clip-Cable (Only On: 72103)

$

$

Currently unavailable

8

Toro 24_100_01

Nut

$

$

Currently unavailable

9

Toro 24_393_04

Pump-Fuel

$

$

Currently unavailable

10

Toro 24_086_12

Screw

$

$

Currently unavailable

11

Toro 24 353 03

Line-Fuel 10 1/2" (Only On: 72103, 72083)

$

$

Currently unavailable

12

Toro 25_050_03

Filter-Fuel

$

$

Currently unavailable

13

Toro 24 126 29

Bracket-Throttle Stop (Only On: 72103, 72083)

$

$

Currently unavailable

14

Toro M-0259006

Screw M2.5X45X5.5 (Only On: 72103)

$

$

Currently unavailable

15

Toro 24 144 15

Shaft-Choke (Only On: 72103, 72083)

$

$

Currently unavailable

16

Toro 24 468 05

Washer (Only On: 72103, 72083)

$

$

Currently unavailable

17

Toro 24 241 01

Collar-Choke (Only On: 72103, 72083)

$

$

Currently unavailable

18

Toro 24 089 22

Spring-Choke Return (Only On: 72103, 72083)

$

$

Currently unavailable

19

Toro 24_141_04

Ring-Choke Lever (Only On: 72103)

$

$

Currently unavailable

20

Toro 24_090_10

Lever-Choke (Only On: 72103)

$

$

Currently unavailable

21

Toro 24 089 24

Spring-Throttle Screw (Only On: 72103, 72083)

$

$

Currently unavailable

22

Toro 24 086 19

Screw-Throttle Adjust (Only On: 72103, 72083)

$

$

Currently unavailable

23

Toro 24_462_02

Valve-Choke (Only On: 72103)

$

$

Currently unavailable

24

Toro 24 086 20

Screw-Throttle Shaft (Only On: 72103, 72083)

$

$

Currently unavailable

25

Toro 24_337_27

Jet-Air Bleed (Only On: 72103)

$

$

Currently unavailable

26

Toro 24_337_11

Jet-Slow (Only On: 72103)

$

$

Currently unavailable

27

Toro 24 086 22

Screw-Idle Adjust (Only On: 72103, 72083)

$

$

Currently unavailable

28

Toro 24_089_23

Spring-Idle Adjust Screw (Only On: 72103)

$

$

Currently unavailable

29

Toro 24_086_21

Screw (Only On: 72103)

$

$

Currently unavailable

30

Toro 24 096 13

Cover-Passage (Only On: 72103, 72083)

$

$

Currently unavailable

31

Toro 24 041 18

Gasket-Passage Cover (Only On: 72103, 72083)

$

$

Currently unavailable

32

Toro 24_041_19

Gasket-Float Chamber (Only On: 72103)

$

$

Currently unavailable

33

Toro 24_757_05

Kit-Float Repair (Only On: 72103)

$

$

Currently unavailable

34

Toro 24 369 01

Nozzle-Main (Only On: 72103,72083)

$

$

Currently unavailable

35

Toro 24_234_01

Chamber-Float (Only On: 72103)

$

$

Currently unavailable

36

Toro 24_337_20

Jet-Main (Only On: 72103)

$

$

Currently unavailable

37

Toro 24 755 15

Kit-Solenoid INC 41-42 (Only On: 72103, 72083)

$

$

Currently unavailable

38

Toro 24_041_21

Gasket-Chamber Screw (Only On: 72103)

$

$

Currently unavailable

39

Toro 24 041 20

Gasket-Solenoid (Only On: 72103, 72083)

$

$

Currently unavailable

Toro X-25-52

Washer

Note: Not illustrated

$

$

Currently unavailable

Toro 24_041_15

Gasket-Carburetor (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_25

Kit-Hi Alt 1500-3000 M (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 755 26

Kit-Hi Alt Over 3000 M (Only On: 72103, 72083)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 06

Kit-Carburetor Repair (Only On: 72103, 72083)

$

$

Currently unavailable
