30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

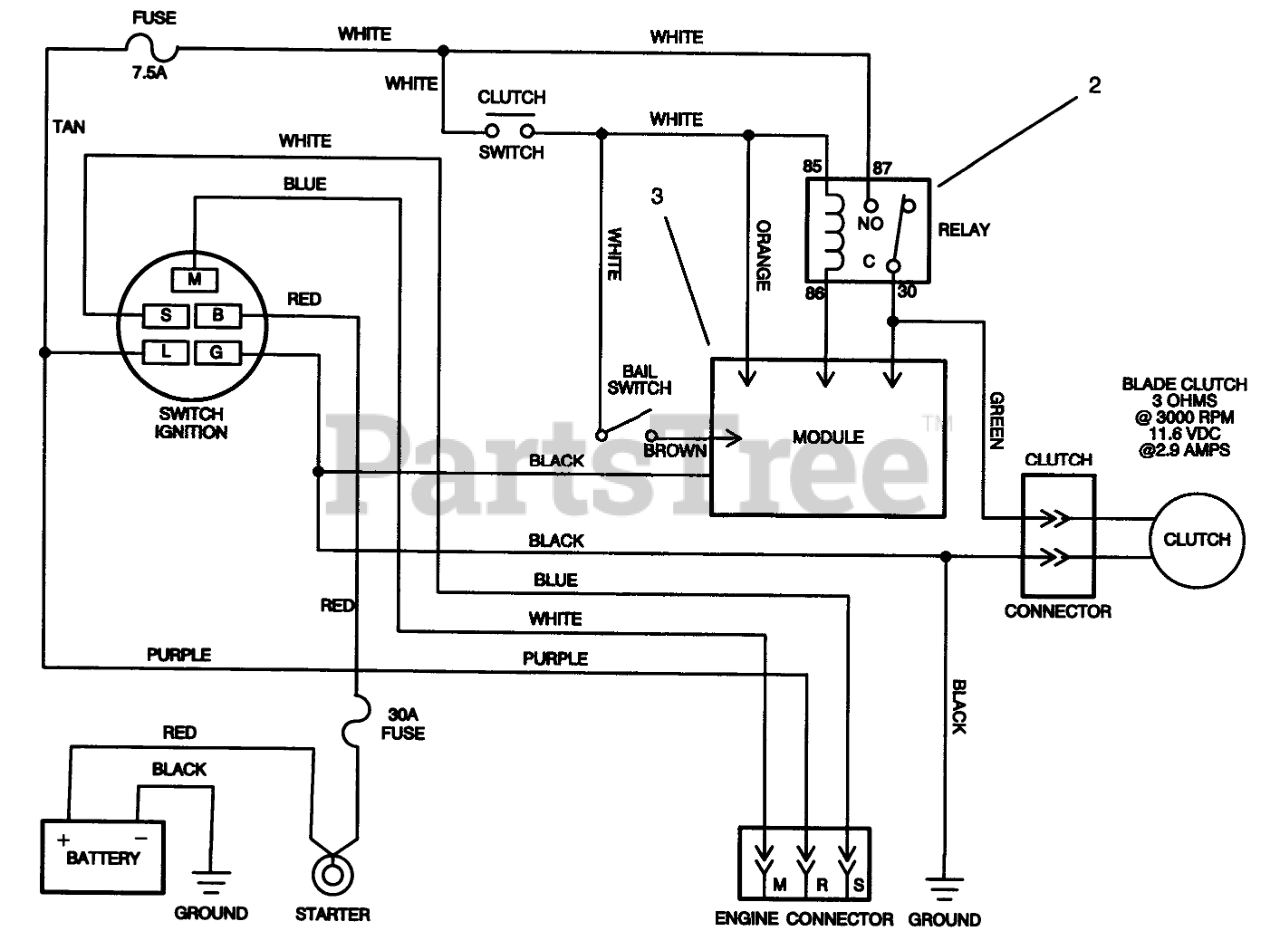

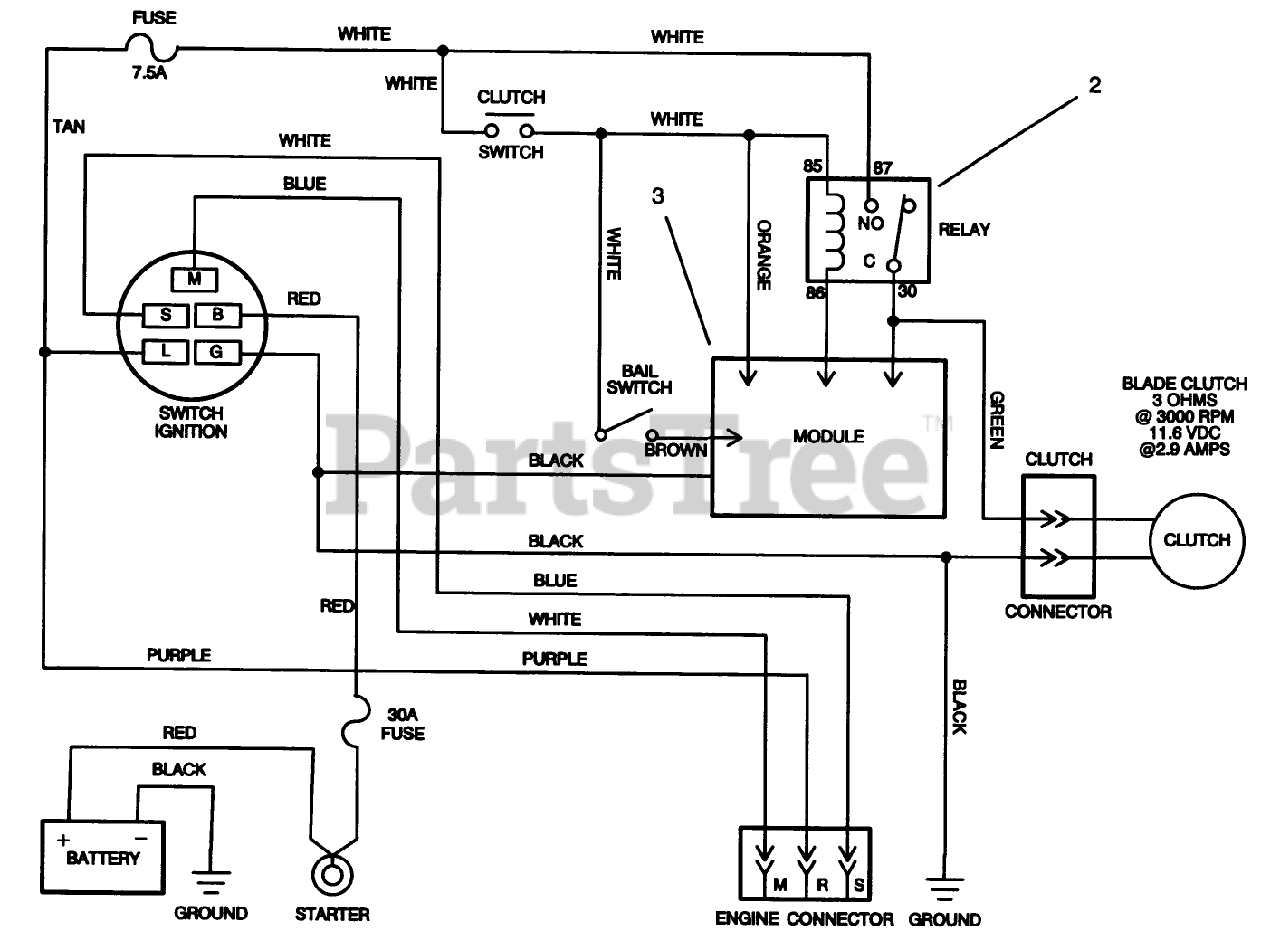

ELECTRIC SCHEMATIC Parts Diagram

  • Title

1

Toro 93-1158

WIRE HARNESS-18HP ELECT.

$

$

Not available

2

Toro 63-7590

RELAY

$79.99

$

In Stock, only 1 left!

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available
