30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) STARTING SYSTEM KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

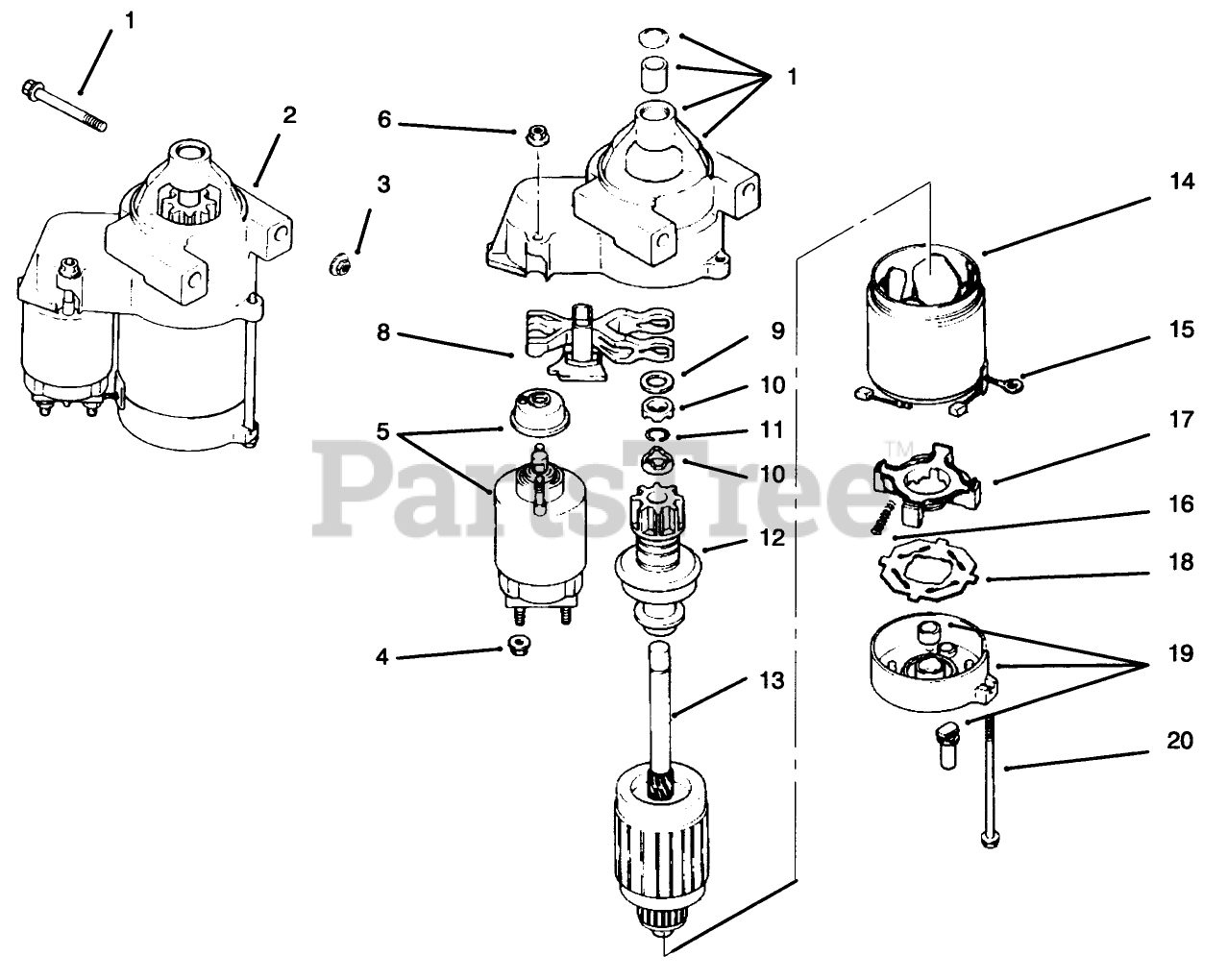

STARTING SYSTEM KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

Kohler M-0839080

Scew

$

$

Not available

2

1209803

Starter Solenoid Shift (Incl. Ref. #4-20)

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

In Stock, Qty 13

0

4

5210010

Nut

$

$

Not available

5

1208102

Cap Drive End

$

$

Not available

6

5210009

Nut

$

$

Not available

7

5243502

Solenoid

$

$

Not available

8

1209010

Lever Starter Drive

$

$

Not available

9

5246814

Washer

$

$

Not available

10

5210008

Nut

$

$

Not available

11

5214103

Ring-Retainer

$

$

Not available

12

1223901

Drive Pinion

$

$

Not available

13

1217003

Armature

$

$

Not available

14

1247101

Frame

$

$

Not available

15

5222101

Kit-Brush (Incl. Ref. #16)

$

$

Not available

16

5208909

Spring Brush

$

$

Not available

17

5232303

Holder-Brush

$

$

Not available

18

5216801

Insulator

$

$

Not available

19

1230101

Cap-Commutator End

$

$

Not available

20

5221105

Bolt

$

$

Not available
