30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) AXLE, BRAKE AND WHEEL DRIVE AND BELTS Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

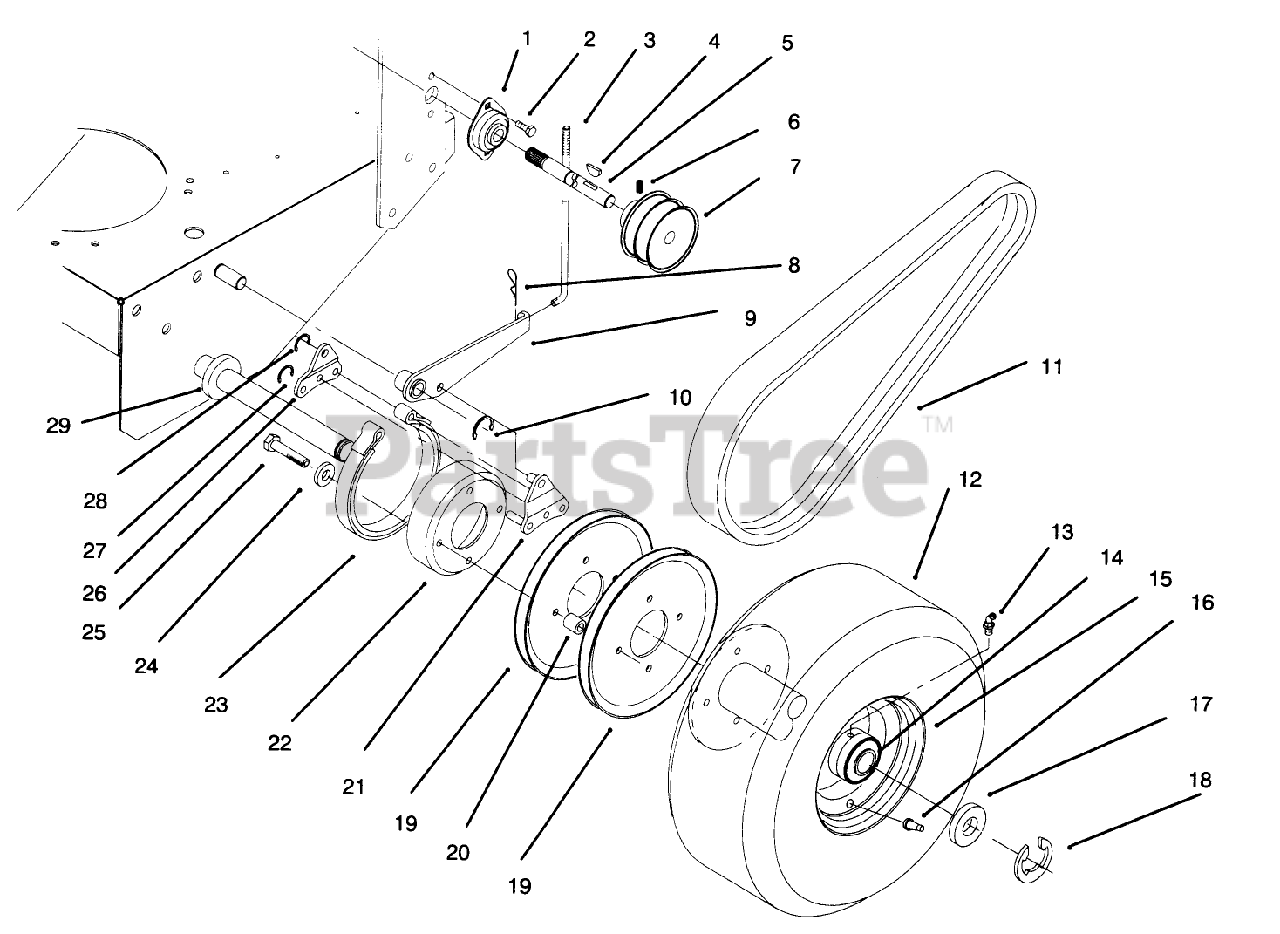

AXLE, BRAKE AND WHEEL DRIVE AND BELTS Parts Diagram

  • Title

1

Toro 51-4270

BEARING-EXTERNAL SHAFT

$46.99

$

In Stock, only 2 left!

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 51-4580

ROD-BRAKE

$63.99

$

Usually ships in 3-6 days

0

4

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

5

Toro 51-4240

SHAFT-EXTENSION, RH

$76.99

$

In Stock, only 2 left!

0

Toro 51-4250

SHAFT-EXTENSION, LH

Note: Not illustrated

$68.99

$

In Stock, only 1 left!

0

6

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

7

Toro 74-0480

Pulley-Drive
(Superseded to 105-2698)

$59.99

$

In Stock, only 3 left!

0

8

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

9

Toro 51-4610

Brake Arm-LH
(Superseded to 106-5537-01)

$146.99

$

Usually ships in 3-6 days

0

Toro 51-4600

Brake Arm-RH
(Superseded to 106-5537-01)

Note: Not illustrated

$146.99

$

Usually ships in 3-6 days

0

10

Toro 32151-40

RING-RETAINING

$7.99

$

In Stock, Qty 5

0

11

Toro 51-4290

V-BELT

$100.99

$

In Stock, Qty 6

0

12

Toro 231-117

TIRE

$

$

Not available

13

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0

14

Toro 92-1746

BEARING-BALL

$111.99

$

Usually ships in 3-6 days

0

15

Toro 242-80

WHEEL AND HUB ASM

$

$

Not available

16

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, only 3 left!

0

17

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 18

0

18

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 16

0

19

Toro 51-4160

Pulley-Wheel
(Superseded to 51-4160-03)

$68.99

$

In Stock, only 2 left!

0

20

Toro 51-4170

SPACER-PULLEY

$

$

Not available

21

Toro 51-4650

LINK-Brake
(Superseded to 51-4650-01)

$

$

Not available

22

Toro 51-4180

Drum-Brake
(Superseded to 51-4180-03)

$78.99

$

Usually ships in 3-6 days

0

23

Toro 51-4700

BAND-BRAKE

$74.99

$

In Stock, Qty 10

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 51-4660

Plate-Link
(Superseded to 51-4660-01)

$38.99

$

Usually ships in 3-6 days

0

27

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

28

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

In Stock, only 4 left!

0

29

Toro 51-4230

WASHER-WHEEL

$14.99

$

In Stock, only 1 left!

0

Toro 54-2750

V-BELT, DRIVE

Note: Not illustrated

$55.99

$

In Stock, only 2 left!

0

Toro 55-7660

V-BELT

Note: Not illustrated

$60.99

$

In Stock, only 1 left!
