30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) CRANKCASE Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

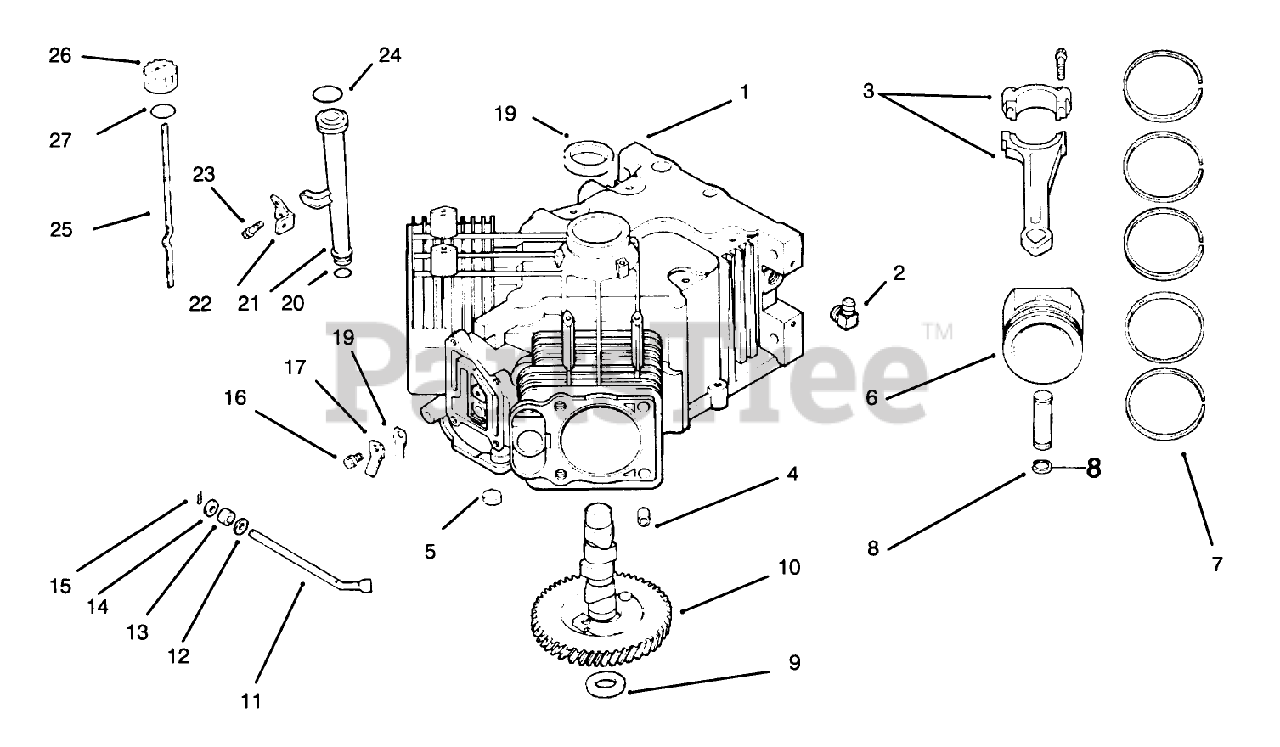

CRANKCASE Parts Diagram

  • Title

1

2478205

Miniblock

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

2

2429403

Fitting

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

3

2406701

Connecting Rod STD

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

2406702

Connecting Rod .25

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

4

1238003

Pin-Dowel

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

5

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Kohler Engine CV18S-PS 61521

$4.99

$

In Stock, Qty 7

0

6

Kohler 24 874 01

Set-Piston w/Ring (Incl. Ref. #7-8)
(Superseded to 24 874 01-S)

Note: Kohler Engine CV18S-PS 61521

$199.99

$

Usually ships in 2-5 days

0

2487402

Set-Piston w/Ring (.25) (Incl. Ref. #7-8)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

Kohler 24 874 03

Set-Piston w/Ring (.50) (Incl. Ref. #7-8)
(Superseded to 24 874 49-S)

Note: Kohler Engine CV18S-PS 61521

$189.99

$

Usually ships in 2-5 days

0

7

2410801

Ring Set(Std.)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

2410802

Set-Ring .25

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

2410803

Set-Ring .50

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

8

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Kohler Engine CV18S-PS 61521

$3.49

$

In Stock, Qty 14

0

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Kohler Engine CV18S-PS 61521

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Kohler Engine CV18S-PS 61521

$4.49

$

In Stock, only 2 left!

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

In Stock, Qty 11

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Kohler Engine CV18S-PS 61521

$2.99

$

Usually ships in 2-5 days

0

10

2401205

Camshaft

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

11

2414401

Shaft-Governor Cross

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

12

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

Usually ships in 2-5 days

0

13

1203201

Seal-Cross Shaft

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

In Stock, only 2 left!

0

15

1238004

Pin-Hitch

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

16

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CV18S-PS 61521

$4.49

$

Usually ships in 2-5 days

0

17

2401804

Retainer-Reed

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

18

2440201

Beed-Breather

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

19

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Kohler Engine CV18S-PS 61521

$9.49

$

In Stock, Qty 20+

0

20

1215301

"O"Ring

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

21

1212304

Tube-Oil Fill

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

22

2412619

Bracket-Oil Tube

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

23

Kohler M-0549016

Screw

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

24

1215302

"O"Ring

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

25

2403804

Dipstick Assembly (Incl. Ref. #26-27)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

26

2575513

Kit-Fill Cap (Incl. Ref. #27)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

27

1215303

"O"Ring

Note: Kohler Engine CV18S-PS 61521

$

$

Not available
