30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

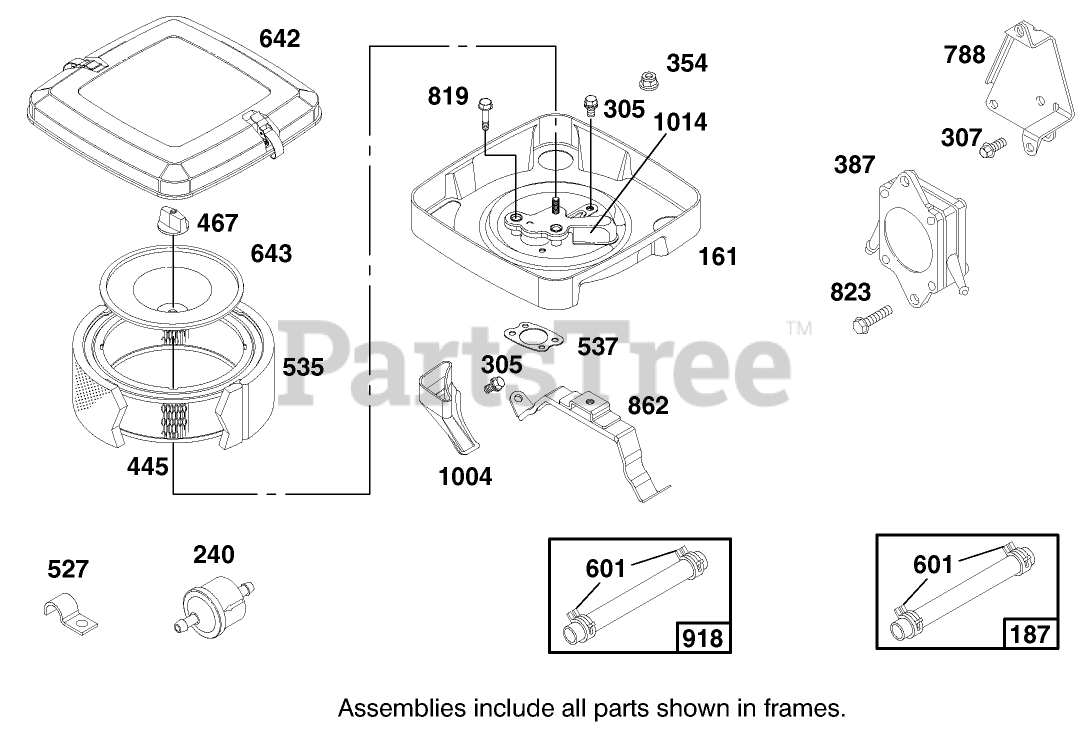

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

161

Briggs & Stratton 807857

Base-Air Cleaner
(Superseded to 846046)

$96.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Fuel-Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

240

Briggs & Stratton 493629

Filte-Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

305

Briggs & Stratton 805406

Screw
(Superseded to 841233)

$3.49

$

In Stock, Qty 6

0

307

Briggs & Stratton 805025

Screw
(Superseded to 692056)

$5.99

$

In Stock, Qty 6

0

354

Briggs & Stratton 810078

Nut-Hex.
(Superseded to 690939)

$3.49

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808322

Pump-Fuel
(Superseded to 808656)

$27.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394018

Filter-Air
(Superseded to 394018S)

$25.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 491875

Knob
(Superseded to 691985)

$7.99

$

In Stock, Qty 7

0

527

Briggs & Stratton 223167

Clamp-Tube
(Superseded to 690423)

$4.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272490

Filter-Air
(Superseded to 272490S)

$5.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 808655

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 495993.

$82.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 807862

Cover-Air Cleaner
(Superseded to 699959)

$59.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 805631

Plate-Element
(Superseded to 844932)

$22.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 807685

Bracket-Pump
(Superseded to 691559)

$24.99

$

In Stock, only 2 left!

0

819

Briggs & Stratton 805057

Screw
(Superseded to 691492)

$3.99

$

Usually ships in 2-12 days

0

823

Briggs & Stratton 805317

Screw-HFH
(Superseded to 807084)

$3.49

$

In Stock, Qty 17

0

862

Briggs & Stratton 807859

Strap-Cleaner Mounting
(Superseded to 692542)

$8.49

$

In Stock, only 1 left!

0

918

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 805632

Duct-Air
(Superseded to 690743)

$

$

Not available

1014

Briggs & Stratton 807797

Shield-Assy.
(Superseded to 844930)

$36.99

$

Usually ships in 2-12 days

0
