30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

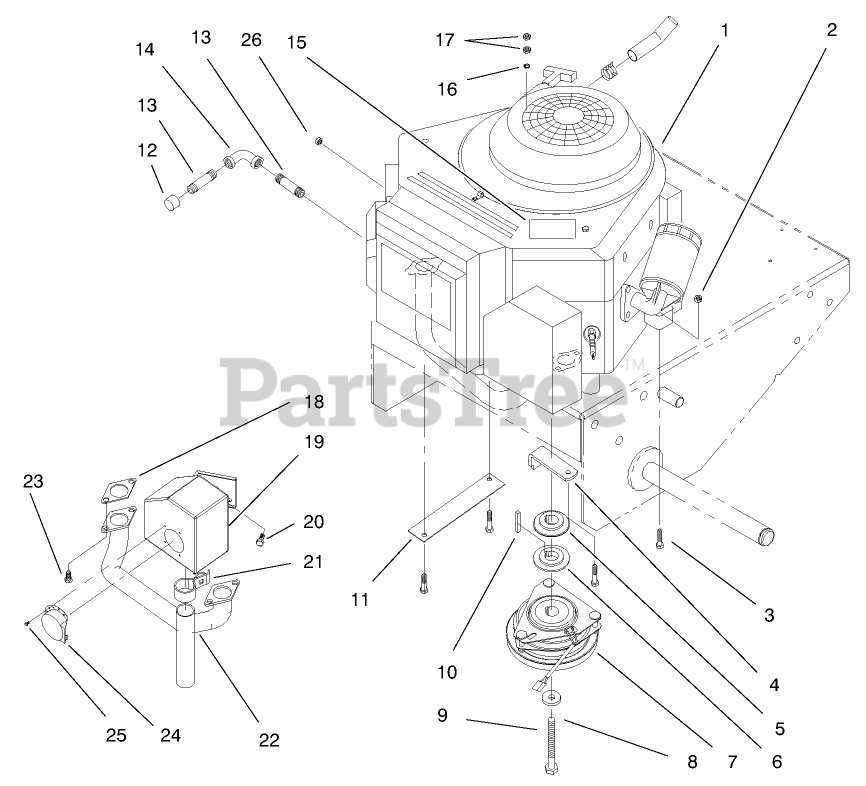

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-16hp B&S

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

4

Toro 51-4540-03

RETAINER-CLUTCH

$19.99

$

Usually ships in 3-6 days

0

5

Toro 74-0060

SHEAVE-UPPER HALF

$18.99

$

Usually ships in 3-6 days

0

6

Toro 74-0050

SHEAVE-LOWER HALF

$18.99

$

Usually ships in 3-6 days

0

7

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

Usually ships in 3-6 days

0

8

Toro 112843

WASHER

$3.49

$

In Stock, Qty 19

0

9

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 1 left!

0

10

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

11

Toro 94-5847-01

COVER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

12

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

13

Toro 289-46

NIPPLE-PIPE

$

$

Not available

14

Toro 94-9650

ELBOW-90 DEG

$36.99

$

Usually ships in 3-6 days

0

15

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

16

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

17

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

18

Toro 94-5844

GASKET F/W 94-4194

$13.99

$

Usually ships in 3-6 days

0

19

Toro 94-5841

MUFFLER F/W 94-4194

$345.99

$

Usually ships in 3-6 days

0

20

Toro 94-5846

SCREW F/W 94-4194

$

$

Not available

21

Toro 94-5843

ASM-MUFF. CLAMP W/94-4194

$26.99

$

Usually ships in 3-6 days

0

22

Toro 94-5842

MANIFOLD-EXH. F/W 94-4194

$

$

Not available

23

Toro 94-5845

SCREW F/W 94-4194

$

$

Not available

24

Toro 94-6782

DEFLECTOR F/W 94-4194

$

$

Not available

25

Toro 94-6783

SCREW F/W 94-4194

$

$

Not available

26

Toro 3217-25

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
