30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

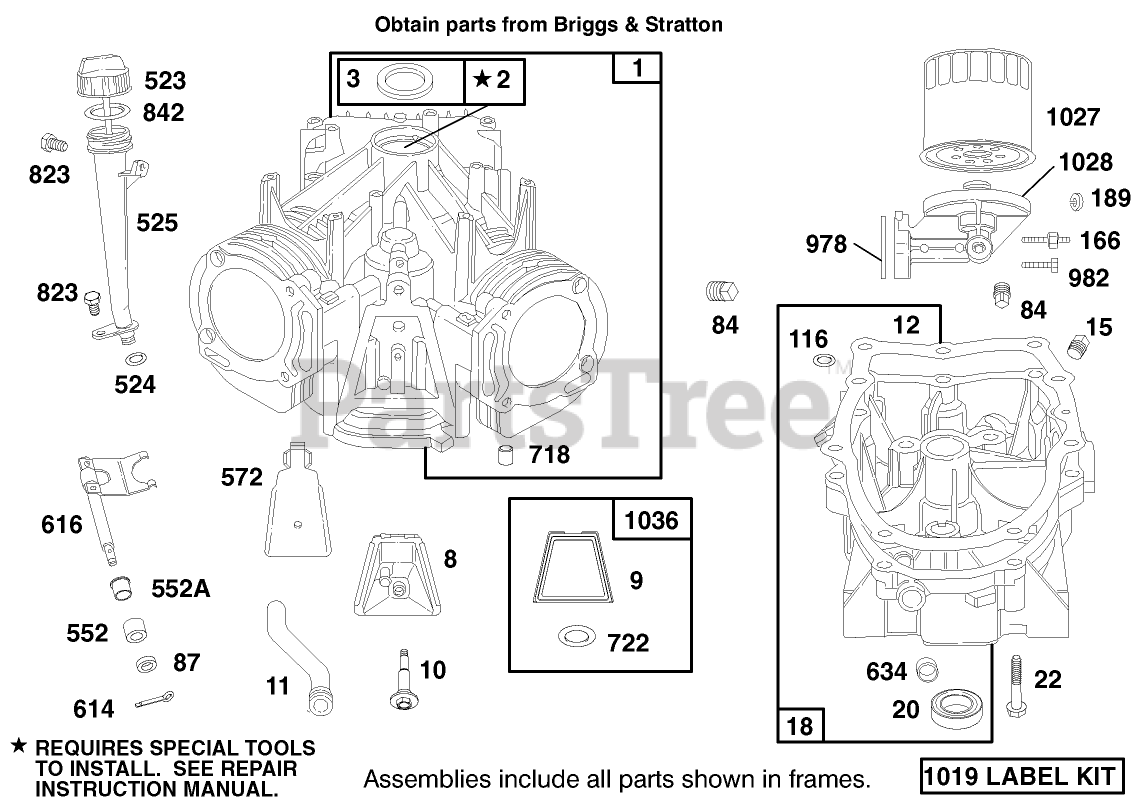

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

1

Toro 805511

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 805107

Bearing-Cylinder
(Superseded to 807687)

$

$

Not available

3

Briggs & Stratton 805101

Seal-Oil
(Superseded to 805101S)

Note: Included in Gasket Set-Part No. 807989.

$

$

Not available

8

Briggs & Stratton 807795

Breather Assembly
(Superseded to 808988)

$41.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 805379

Gasket-Breather
(Superseded to 844986)

Note: Included in Gasket Set-Part No. 807989.

$8.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 805751

Screw
(Superseded to 690751)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 805362

Tube-Breather
(Superseded to 806083S)

$17.99

$

In Stock, Qty 15

0

12

Briggs & Stratton 805112

Gasket-Crankcase
(Superseded to 845254)

Note: Included in Gasket Set-Part No. 807989.

$47.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 805048

Plug-Oil Drain
(Superseded to 690946)

$6.49

$

In Stock, Qty 8

0

18

Briggs & Stratton 807638

Sump-Engine
(Superseded to 843954)

$229.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049

Seal-Oil
(Superseded to 805049S)

Note: Included in Gasket Set-Part No. 807989.

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 805696

Screw-Hex.
(Superseded to 807362)

$3.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 91488

Plug-Oil
(Superseded to 794903)

$5.99

$

In Stock, Qty 8

0

87

Briggs & Stratton 805054

Seal-Governor Shaft
(Superseded to 842826)

Note: Included in Gasket Set-Part No. 807989.

$7.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 805198

Seal-O-Ring

Note: Included in Gasket Set-Part No. 807989.

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 805073

Stud-Hex. Drive
(Superseded to 690682)

$4.49

$

In Stock, only 1 left!

0

189

Briggs & Stratton 805449

Washer
(Superseded to 690706)

$4.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 807985

Cap-Oil Fill
(Superseded to 692101)

$26.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 805011

SeaI-FilITube
(Superseded to 692053)

Note: Included in Gasket Set-Part No. 807989.

$6.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 807611

Tube-Oil Fill
(Superseded to 692093)

$22.99

$

In Stock, only 2 left!

0

552

Briggs & Stratton 805412

Bushing-Govemor Shaft
(Superseded to 690701)

$8.49

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 805413

Bushing-Govemor Shaft
(Superseded to 806686)

$8.99

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 805197

Baffle-Oil
(Superseded to 690686)

$16.99

$

In Stock, only 1 left!

0

614

Briggs & Stratton 805417

Pin-Cotter
(Superseded to 691550)

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 807596

Fork-Govemor

$

$

Not available

634

Briggs & Stratton 805416

Seal-Governor
(Superseded to 690704)

$5.99

$

In Stock, only 2 left!

0

718

Briggs & Stratton 805103

Pin-Dowel
(Superseded to 806469)

$6.49

$

In Stock, only 2 left!

0

722

Seal-O-Ring (Sold in Kit Only)

Note: Included in Gasket Set-Part No. 807989.

$

$

Not available

823

Briggs & Stratton 805317

Screw-HFH
(Superseded to 807084)

$3.99

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 807989.

$4.49

$

In Stock, Qty 7

0

978

Briggs & Stratton 805250

Gasket-Adapter
(Superseded to 692063)

Note: Included in Gasket Set-Part No. 807989.

$4.49

$

In Stock, Qty 15

0

982

Briggs & Stratton 805030

Screw
(Superseded to 690679)

$3.99

$

In Stock, only 2 left!

0

1019

Toro 808036

Label Kit

$

$

Currently unavailable

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 805292

Adapter-Filter
(Superseded to 808235)

$80.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 807688

Gasket-Breather
(Superseded to 844986)

$8.99

$

In Stock, only 3 left!

0
