30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 079000001 - 079999999) (1997) CARBURETOR / FUEL PUMP KOHLER ENGINE CV18S - PS61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

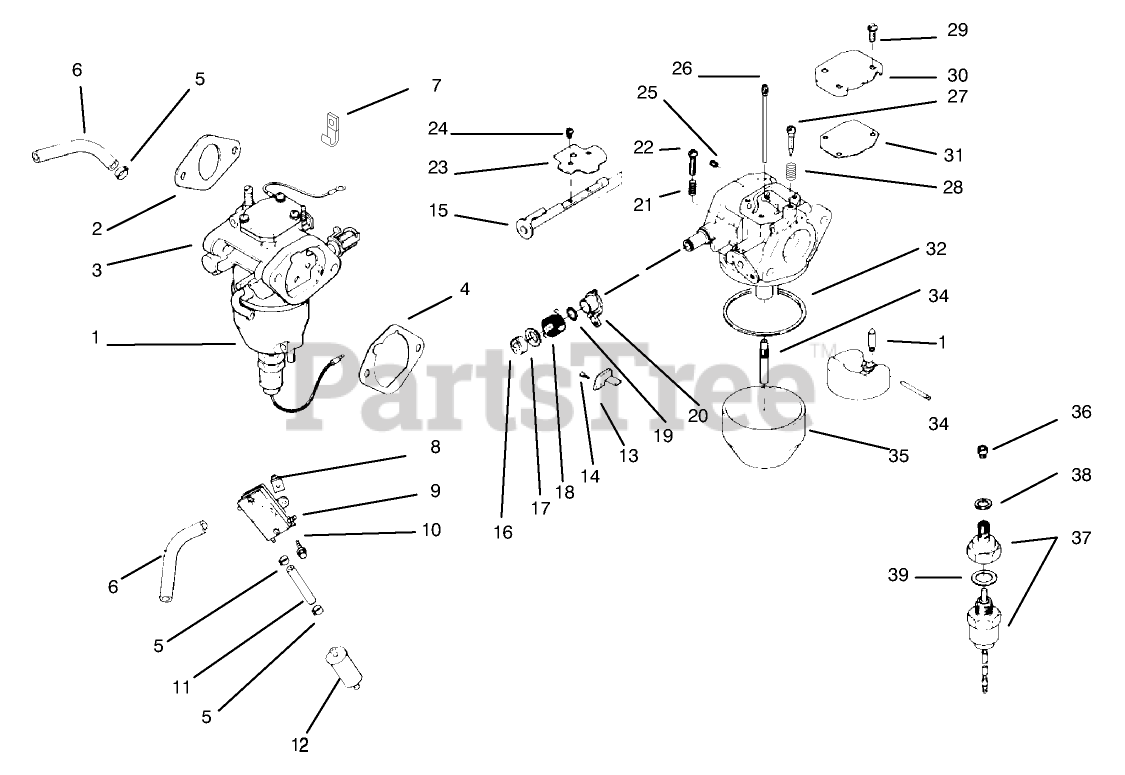

CARBURETOR / FUEL PUMP KOHLER ENGINE CV18S - PS61521 Parts Diagram

  • Title

1

2485322

Kit-Carburetor Incl.2-4

Note: Order Parts from Kohler

$

$

Not available

2

2404115

Kit-Carburetor

Note: Order Parts from Kohler

$

$

Not available

3

2405317

Carburetor (Ref)

Note: Order Parts from Kohler

$

$

Not available

4

2404114

Gasket-A/C Base

Note: Order Parts from Kohler

$

$

Not available

5

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Order Parts from Kohler

$5.99

$

In Stock, only 2 left!

0

6

5235322

Line-Fuel 12"

Note: Order Parts from Kohler

$

$

Not available

7

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Order Parts from Kohler

$5.49

$

In Stock, only 2 left!

0

8

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 4 left!

0

9

2439304

Pump-Fuel

Note: Order Parts from Kohler

$

$

Not available

10

2408612

Screw

Note: Order Parts from Kohler

$

$

Not available

11

2435303

Line-Fuel

Note: Order Parts from Kohler

$

$

Not available

12

2505003

Filter-Fuel

Note: Order Parts from Kohler

$

$

Not available

13

Kohler 2412629

Bracket-Throttle Stop

Note: Order Parts from Kohler

$

$

Not available

14

Kohler M-0259006

Screw

Note: Order Parts from Kohler

$0.99

$

Usually ships in 2-5 days

0

15

2414415

Shaft-Choke

Note: Order Parts from Kohler

$

$

Not available

16

2446805

Washer

Note: Order Parts from Kohler

$

$

Not available

17

2424101

Collar-Coke

Note: Order Parts from Kohler

$

$

Not available

18

2408922

Spring-Choke Return

Note: Order Parts from Kohler

$

$

Not available

19

2414104

Ring-Choke Lever

Note: Order Parts from Kohler

$

$

Not available

20

2409010

Lever-Choke

Note: Order Parts from Kohler

$

$

Not available

21

2408924

Sprin-Throttle Screw

Note: Order Parts from Kohler

$

$

Not available

22

2408619

Screw-Throttle Adjust

Note: Order Parts from Kohler

$

$

Not available

23

2446202

Valve-Choke

Note: Order Parts from Kohler

$

$

Not available

24

2408620

Screw

Note: Order Parts from Kohler

$

$

Not available

25

2433727

Jet-Air Bleed

Note: Order Parts from Kohler

$

$

Not available

26

2433711

Jet-Slow

Note: Order Parts from Kohler

$

$

Not available

27

2408622

Screw

Note: Order Parts from Kohler

$

$

Not available

28

2408923

Spring-idler Screw

Note: Order Parts from Kohler

$

$

Not available

29

2408621

Screw

Note: Order Parts from Kohler

$

$

Not available

30

2409613

Cover-Passage

Note: Order Parts from Kohler

$

$

Not available

31

Kohler 24 041 18

Gasket-PassageCover
(Superseded to 24 757 20)

Note: Order Parts from Kohler

$71.99

$

In Stock, only 2 left!

0

32

Kohler 24 041 19

Gasket-FloatChamber
(Superseded to 24 757 20)

Note: Order Parts from Kohler

$71.99

$

In Stock, only 2 left!

0

33

2475705

Kit-Float Repair

Note: Order Parts from Kohler

$

$

Not available

34

2339601

Nozzle-Main

Note: Order Parts from Kohler

$

$

Not available

35

2423401

Chamber-Float

Note: Order Parts from Kohler

$

$

Not available

36

2433720

Jet-Main

Note: Order Parts from Kohler

$

$

Not available

37

Kohler 24 755 15

Kit-Solenoid INC41-42
(Superseded to 24 757 22)

Note: Order Parts from Kohler

$250.99

$

In Stock, only 1 left!

0

38

Kohler 24 041 21

Gasket-ChamberScrew
(Superseded to 24 041 21-S)

Note: Order Parts from Kohler

$

$

Not available

39

2404120

Gasket-Solenoid

Note: Order Parts from Kohler

$

$

Not available

2404115

Kit-Carburetor

Note: Order Parts from Kohler

$

$

Not available

Kohler 24 755 25

Kit-Hi Alt 1500-3000M
(Superseded to 24 755 25-S)

Note: Order Parts from Kohler

$

$

Not available

Kohler 24 755 26

Kit-Hi Alt Over 3000M
(Superseded to 24 755 26-S)

Note: Order Parts from Kohler

$

$

Not available

2475706

Kit-Carburetor Repair

Note: Order Parts from Kohler

$

$

Not available

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 2 left!

0
