30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 079000001 - 079999999) (1997) HEAD / VALVE / BREATHER KOHLER ENGINE CV18S - PS61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

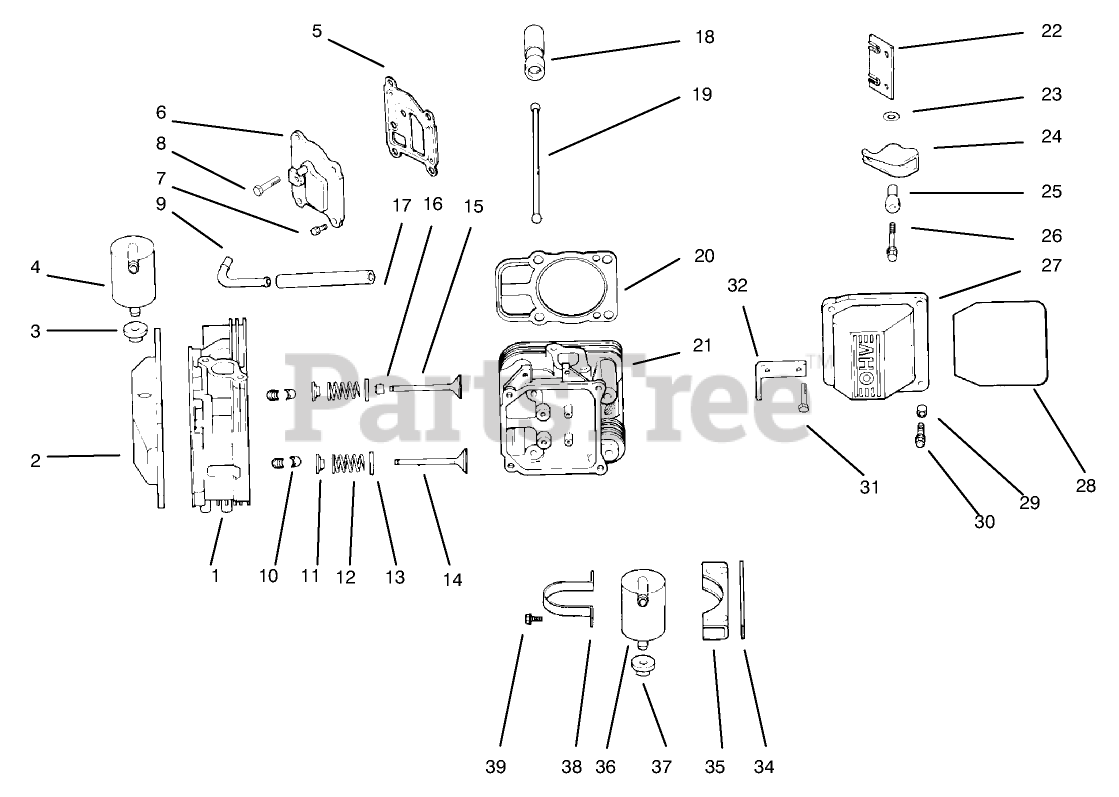

HEAD / VALVE / BREATHER KOHLER ENGINE CV18S - PS61521 Parts Diagram

  • Title

1

2431811

#1 Cyl. Head Asm

Note: Order Parts from Kohler

$

$

Not available

2

2475576

Kit-Valve Incl 6 20-22

Note: Order Parts from Kohler

$

$

Not available

3

2531302

Grommet-Rubber

Note: Order Parts from Kohler

$

$

Not available

4

2475520

Kit-Breather INC 4

Note: Order Parts from Kohler

$

$

Not available

5

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

Note: Order Parts from Kohler

$15.99

$

In Stock, Qty 5

0

6

2409615

Cover-Breather

Note: Order Parts from Kohler

$

$

Not available

7

Kohler SM-0645020

Screw
(Superseded to M-645020)

Note: Order Parts from Kohler

$2.99

$

In Stock, Qty 7

0

8

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Order Parts from Kohler

$3.49

$

In Stock, only 2 left!

0

9

2429401

Fitting

Note: Order Parts from Kohler

$

$

Not available

10

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Order Parts from Kohler

$5.99

$

In Stock, Qty 11

0

11

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Order Parts from Kohler

$8.49

$

Usually ships in 2-5 days

0

12

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

Note: Order Parts from Kohler

$10.99

$

In Stock, Qty 7

0

13

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

Note: Order Parts from Kohler

$6.49

$

In Stock, only 2 left!

0

14

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

Note: Order Parts from Kohler

$15.99

$

In Stock, only 4 left!

0

14

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

Note: Order Parts from Kohler

$15.99

$

In Stock, only 3 left!

0

15

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

Note: Order Parts from Kohler

$38.99

$

In Stock, Qty 8

0

15

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Order Parts from Kohler

$

$

Not available

16

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

Note: Order Parts from Kohler

$11.99

$

In Stock, Qty 10

0

17

2432603

Hose

Note: Order Parts from Kohler

$

$

Not available

18

1235101

Lifter-Valve

Note: Order Parts from Kohler

$

$

Not available

19

2441104

Rod-Push

Note: Order Parts from Kohler

$

$

Not available

20

2404108

Gasket-Cylinder Head

Note: Order Parts from Kohler

$

$

Not available

21

2431812

#2 Cyl. Head Asm,

Note: Order Parts from Kohler

$

$

Not available

22

2414609

Plate-Guide

Note: Order Parts from Kohler

$

$

Not available

23

Kohler SM-0631005

Washer

Note: Order Parts from Kohler

$

$

Not available

24

2418602

Arm-Rocker

Note: Order Parts from Kohler

$

$

Not available

25

2419402

Pivot-Rocker Arm

Note: Order Parts from Kohler

$

$

Not available

26

Kohler M-0640034

Screw

Note: Order Parts from Kohler

$

$

Not available

27

Kohler 24 755 74

Valve Kit
(Superseded to 24 755 74-S)

Note: Order Parts from Kohler

$35.99

$

In Stock, Qty 10

0

28

2415311

"O"Ring

Note: Order Parts from Kohler

$

$

Not available

29

Kohler 24 112 08

Spacer
(Superseded to 24 112 08-S)

Note: Order Parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

30

Kohler M-0651030

Screw
(Superseded to M-651030-S)

Note: Order Parts from Kohler

$

$

Not available

31

1208616

Screw

Note: Order Parts from Kohler

$

$

Not available

32

2444501

Strap-Lifting

Note: Order Parts from Kohler

$

$

Not available

33

2475557

Kit-Breather Incl 3-9

Note: Order Parts from Kohler

$

$

Not available

34

2411212

Spacer

Note: Order Parts from Kohler

$

$

Not available

35

2412644

Bracket

Note: Order Parts from Kohler

$

$

Not available

36

2459502

Separator-Oil Breather

Note: Order Parts from Kohler

$

$

Not available

37

2431302

Grommet

Note: Order Parts from Kohler

$

$

Not available

38

2444502

Strap-Lifting

Note: Order Parts from Kohler

$

$

Not available

39

Kohler M-0549016

Screw

Note: Order Parts from Kohler

$

$

Not available
