30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 099000001 - 099999999) (1999) BLOWER HOUSING & BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

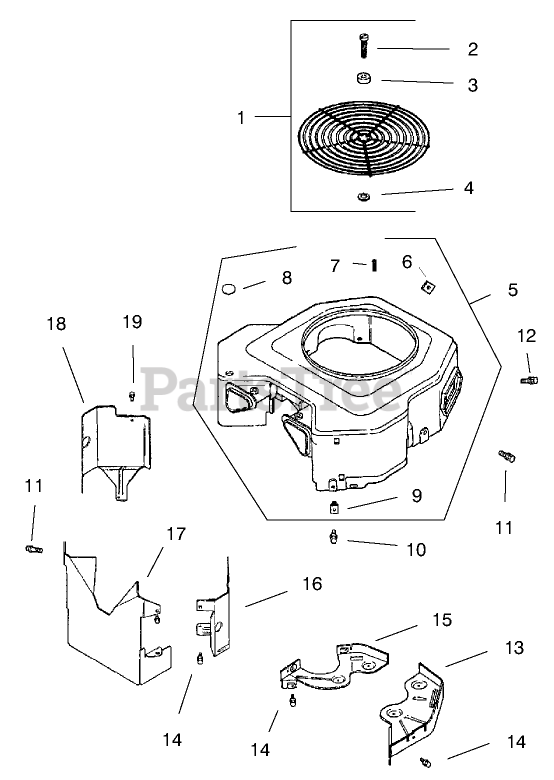

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

2475594

Kit-Guard (Incl. Ref. #2-4)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

2

Kohler 24 086 39

Screw
(Superseded to 25 086 160-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.99

$

In Stock, only 4 left!

0

3

2411209

Spacer

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

4

2446810

Washer

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

5

2402728

Housing-Blower (Incl. Ref. #6-9)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

6

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 3 left!

0

7

Toro 24 086 43

Screw-Set

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Currently unavailable

8

Kohler 25 139 16

Plug-Button
(Superseded to 25 139 16-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

10

Kohler M-0545020

Screw

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

11

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, Qty 15

0

12

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 1 left!

0

13

2414602

Plate-Backing #2 Side

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

14

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$3.99

$

In Stock, Qty 20+

0

15

2414608

Plate-Backing #1

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

16

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$28.99

$

In Stock, only 1 left!

0

17

2406329

Baffle-Valley

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

18

2406330

Baffle-Cyl. #1 Side

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

19

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$4.49

$

In Stock, Qty 13

0

2411311

Decal-HP

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

2411311

Decal-HP

Note: Not illustrated

$

$

Not available
