30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) UPPER HANDLE ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

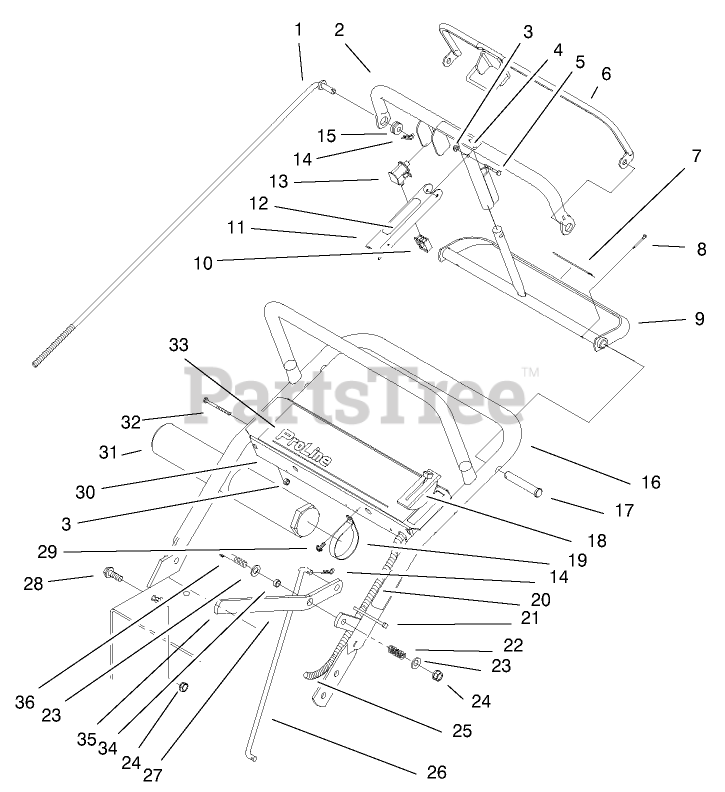

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro E323569

Rod-Control
(Superseded to 98-3282)

$50.99

$

Usually ships in 3-6 days

0

2

Toro E322215

Control Bar
(Superseded to 95-5522-03)

$304.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

4

Toro 93-7298

DECAL-BAR, CONTROL

$42.99

$

In Stock, only 1 left!

0

5

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 6

0

6

Toro E322208

Bail ASM
(Superseded to 82-7680-03)

$166.99

$

Usually ships in 3-6 days

0

7

Toro 93-7299

DECAL-REVERSE

$36.99

$

Usually ships in 3-6 days

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 15

0

9

Toro 99-8501

Control Pivot
(Superseded to 106-5477-03)

$222.99

$

Usually ships in 3-6 days

0

10

Toro 218-595

CONNECTOR-BODY

$

$

Not available

11

Toro E323614

Lever-Parking Brake
(Superseded to 98-3261-03)

$41.99

$

Usually ships in 3-6 days

0

12

Toro 98-3268

DECAL-PARKING BRAKE CE

$

$

Not available

13

Toro 740275

SWITCH

$21.99

$

In Stock, only 2 left!

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

15

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 7

0

16

Toro E322216

Upper Handle ASM
(Superseded to 98-3267-03)

$309.99

$

Usually ships in 3-6 days

0

17

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

18

Toro E323637

Throttle Control
(Superseded to 1-323637)

$115.99

$

In Stock, only 2 left!

0

19

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

20

Toro E323563

Decal-Blade Engagement
(Superseded to 95-5537)

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

22

Toro E303160

Spring
(Superseded to 1-303160)

$6.99

$

Usually ships in 3-6 days

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 98-3258

HARNESS-WIRE

$

$

Not available

26

Toro E323576

Linkage-Blade Drive
(Superseded to 98-3279)

$37.99

$

Usually ships in 3-6 days

0

27

Toro E323573

Lever-Blade Engagement
(Superseded to 98-3287-03)

$52.99

$

Usually ships in 3-6 days

0

28

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

30

Toro E304260

Control Panel ASM
(Superseded to 1-304260)

$

$

Not available

31

Toro 74-0720

TUBE-MANUAL

$26.99

$

Usually ships in 3-6 days

0

32

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

33

Toro 98-3262

DECAL-CONTROL PANEL

$

$

Not available

34

Toro 99-8509

SPACER

$15.99

$

Usually ships in 3-6 days

0

35

Toro E303020

Grip
(Superseded to 1-303020)

$2.99

$

In Stock, only 2 left!

0

36

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0
