30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 020000001 - 029999999) (1992) IGNITION/ELECTRICAL-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

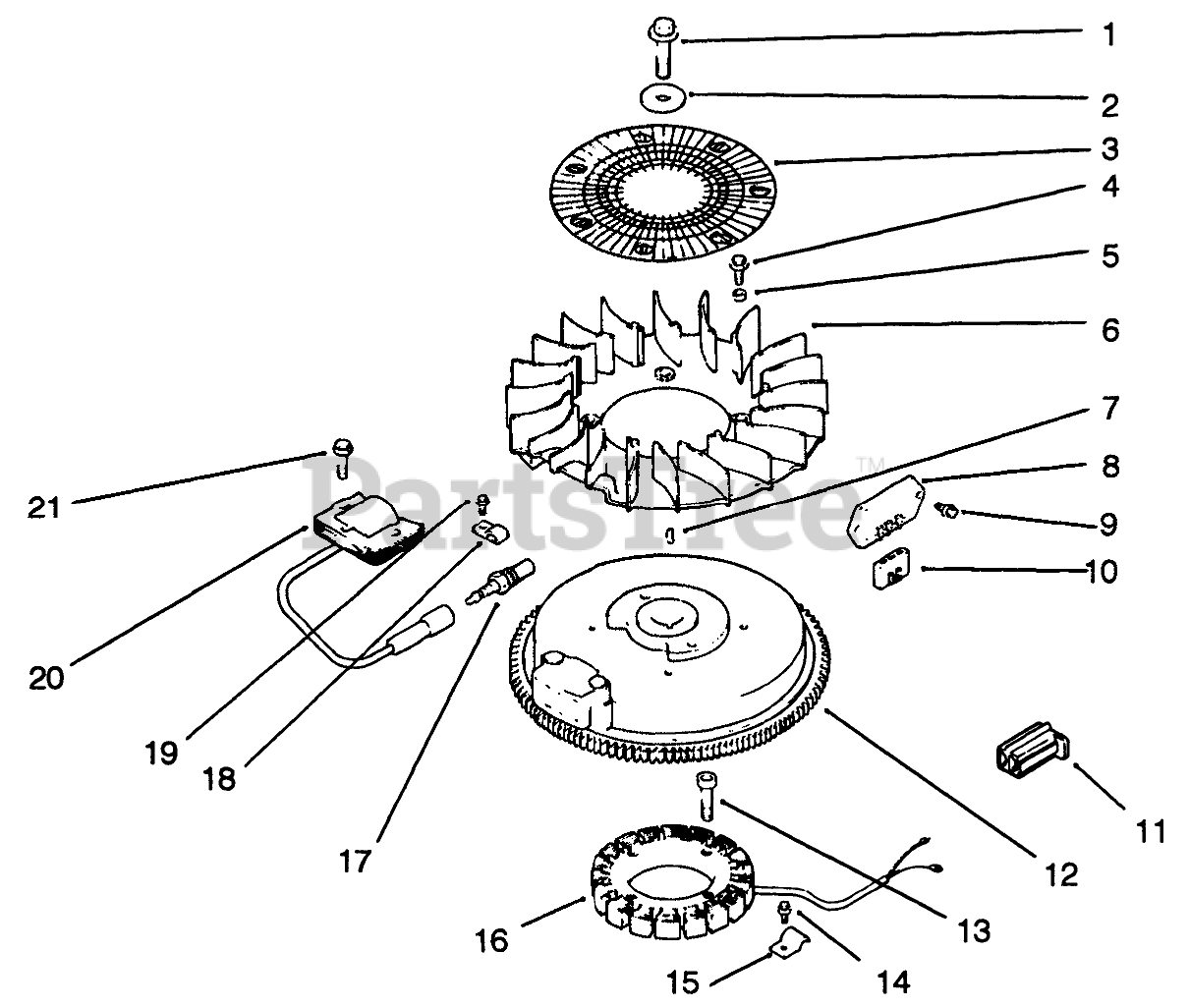

IGNITION/ELECTRICAL-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

$

$

Currently unavailable

3

12_162_01

Screen-Grass

$

$

Not available

4

Toro SM-0651016

Screw-Fan

$

$

Currently unavailable

5

12_112_01

Spacer-Fan

$

$

Not available

6

12_157_02

Fan

$

$

Not available

7

$

$

Currently unavailable

8

Toro 12_403_09

Rectifier-Unregulator

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 236602

Connector

$

$

Currently unavailable

11

41_155_03

Connector

$

$

Not available

12

12_025_08

Flywheel

$

$

Not available

13

$

$

Currently unavailable

14

$

$

Currently unavailable

15

12_154_02

Clip

$

$

Not available

16

Toro 41_085_07

Stator 15 amp.

$

$

Currently unavailable

17

12_132_02

Spark Plug

$

$

Not available

18

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Toro 12_584_01

Module-Ignition

$

$

Currently unavailable

21

$

$

Currently unavailable

Toro 25_518_05

Lead-Black

Note: Not Illustrated.

$

$

Currently unavailable

Connector (5"-14 Gauge)

Note: Not Illustrated.

$

$

Not available

Toro 12_518_01

Lead-White

Note: Not Illustrated.

$

$

Currently unavailable
