30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 089000001 - 089999999) (1998) CLUTCH ASSEMBLY NO. 54-3200 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

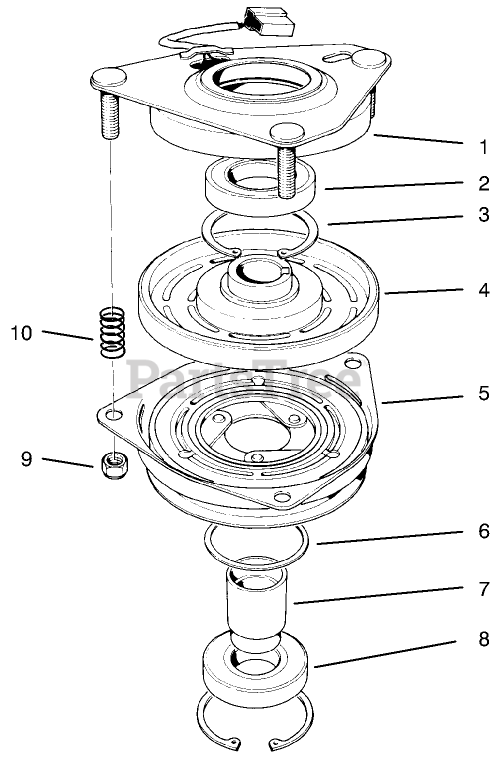

CLUTCH ASSEMBLY NO. 54-3200 Parts Diagram

  • Title

1

Toro 54-0230

Field Ass-y (Incl. Ref. #2 & 3)

$439.99

$

Usually ships in 3-6 days

0

2

Toro 251-292

BEARING-FIELD

$142.99

$

Usually ships in 3-6 days

0

3

Toro 44-8310

RING-RETAINING

$

$

Not available

4

Toro 44-8360

Field Coil, Rotor & Bearing Assembly (Incl. Ref. #1)

$709.99

$

Usually ships in 3-6 days

0

5

Toro 55-7410

Armature & Pulley Assemble (Incl. Ref. #3,6,7, & 8)
(Superseded to 105-2635)

$611.99

$

Usually ships in 3-6 days

0

6

Toro 44-8330

SPACER-BEARING, PULLEY

$

$

Not available

7

Toro 44-8340

COLLAR-BEARING

$

$

Not available

8

Toro 251-291

BEARING-PULLEY
(Superseded to 251-312)

$25.99

$

Usually ships in 3-6 days

0

9

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

10

Toro 44-8320

SPRING

$

$

Not available
