30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 089000001 - 089999999) (1998) FUEL TANK, HYDRO PUMP & PTO Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

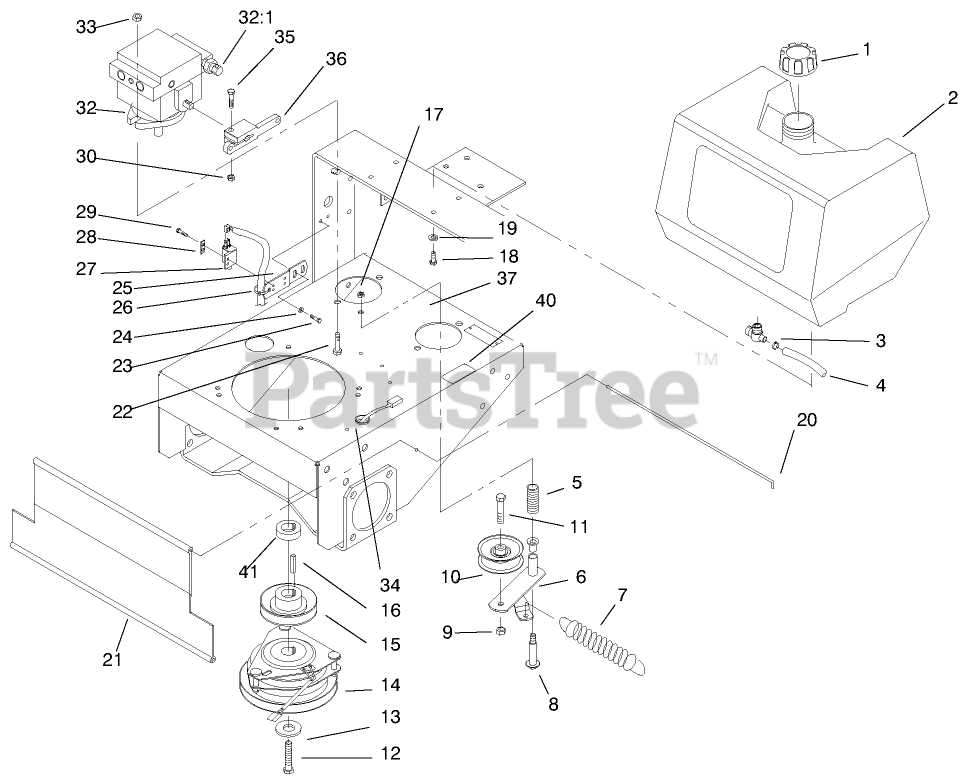

FUEL TANK, HYDRO PUMP & PTO Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

2

Toro 95-2802

TANK-FUEL

$

$

Not available

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$8.49

$

In Stock, only 1 left!

0

5

Toro 88-1880

SPRING-COMPRESSION

$42.99

$

Usually ships in 3-6 days

0

6

Toro 86-4770-03

Lever-Idler
(Superseded to 86-4770)

$104.99

$

Usually ships in 3-6 days

0

7

Toro 68-2190

SPRING

$64.99

$

In Stock, only 3 left!

0

8

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 62-4540-03

Pulley-Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 2 left!

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

13

Toro 3219-9

Nut
(Superseded to 01-188-1614)

$

$

Not available

14

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

Usually ships in 3-6 days

0

15

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

16

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

21

Toro 95-1526

SHIELD-TRAILING

$78.99

$

Usually ships in 3-6 days

0

22

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 32144-3

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 82-4580-03

Bracket-Neutral

$

$

Not available

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

27

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 13

0

28

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

29

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 95-1538

HYD PUMP ASM

$1513.99

$

In Stock, only 1 left!

0

32:1

Toro 95-1539

ASSEMBLY - VALVE

$

$

Not available

33

Toro 32128-42

NUT-HF

$1.49

$

In Stock, Qty 5

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

35

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 82-3790

ARM-PUMP

$

$

Not available

37

Toro 95-1543

DECAL-ADJUSTMENT, VALVE

$4.49

$

Usually ships in 3-6 days

0
