30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) HYDRAULIC PUMP ASSEMBLY NO. 95-1538 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

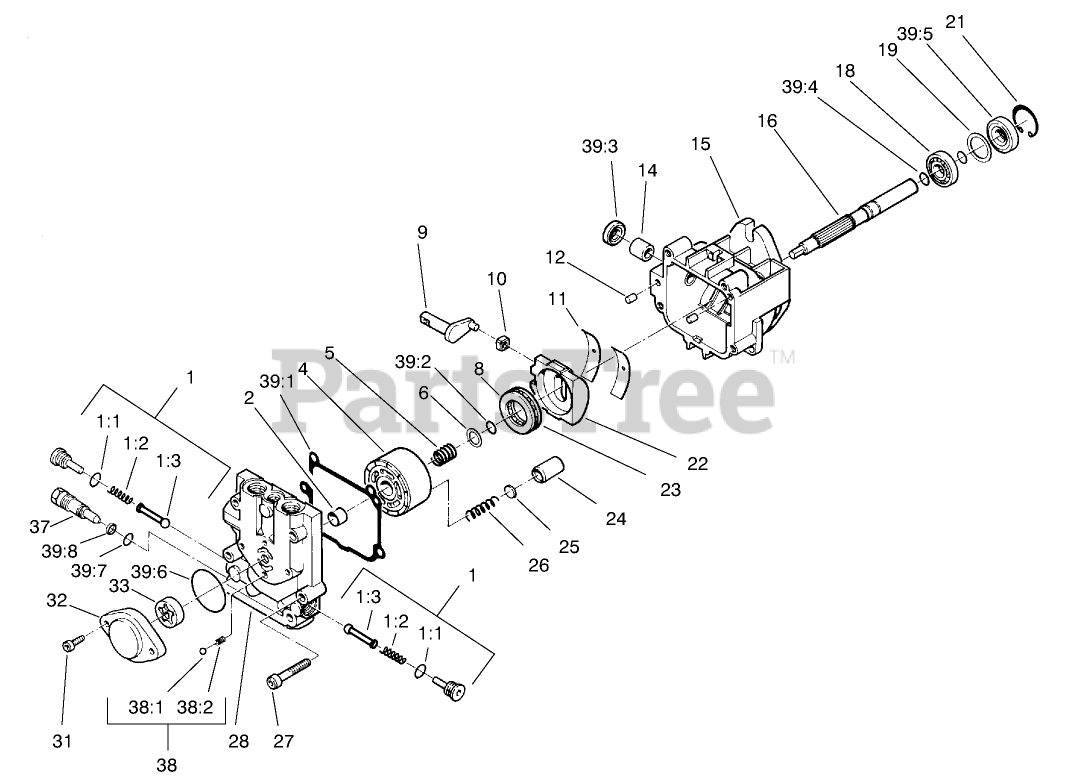

HYDRAULIC PUMP ASSEMBLY NO. 95-1538 Parts Diagram

  • Title

1

Toro 80-6120

CHECK VALVE KIT

$141.99

$

Usually ships in 3-6 days

0

1:1

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:2

Spring

Note: Not serviced separately

$

$

Not available

1:3

Poppet

Note: Not serviced separately

$

$

Not available

2

Journal-Bearing

Note: Not serviced separately

$

$

Not available

4

Cylinder Block

Note: Not serviced separately

$

$

Not available

5

Spring

Note: Not serviced separately

$

$

Not available

6

Washer

Note: Not serviced separately

$

$

Not available

8

Plate-Thrust

Note: Not serviced separately

$

$

Not available

9

Arm-Trunion

Note: Not serviced separately

$

$

Not available

10

Guide-Slot

Note: Not serviced separately

$

$

Not available

11

Cradle-Bearing

Note: Not serviced separately

$

$

Not available

14

Journal-Bearing

Note: Not serviced separately

$

$

Not available

15

Housing

Note: Not serviced separately

$

$

Not available

16

Shaft

Note: Not serviced separately

$

$

Not available

18

Bearing-Ball

Note: Not serviced separately

$

$

Not available

21

Ring-Retaining

Note: Not serviced separately

$

$

Not available

22

Swashplate ASM

Note: Not serviced separately

$

$

Not available

23

Roller-Thrust

Note: Not serviced separately

$

$

Not available

25

Washer-Thrust

Note: Not serviced separately

$

$

Not available

26

Spring-Piston

Note: Not serviced separately

$

$

Not available

28

End Cap

Note: Not serviced separately

$

$

Not available

32

Housing-Charge Pump

Note: Not serviced separately

$

$

Not available

33

Gerotor ASM

Note: Not serviced separately

$

$

Not available

37

Valve-Bypass

Note: Not serviced separately

$

$

Not available

38

Toro 80-6110

RELIEF VALVE CHARGE KIT

$

$

Not available

38:1

Ball

Note: Not serviced separately

$

$

Not available

38:2

Spring

Note: Not serviced separately

$

$

Not available

39:1

Gasket-End Cap

Note: Not serviced separately

$

$

Not available

39:2

Ring-Retaining

Note: Not serviced separately

$

$

Not available

39:3

Seal-Lip

Note: Not serviced separately

$

$

Not available

39:4

Ring-Retaining

Note: Not serviced separately

$

$

Not available

39:5

Seal-Lip

Note: Not serviced separately

$

$

Not available

39:6

Seal-Dust

Note: Not serviced separately

$

$

Not available

39:7

Seal-Dust

Note: Not serviced separately

$

$

Not available

39:8

Ring-Back Up

Note: Not serviced separately

$

$

Not available

39

Toro 80-6130

SEAL KIT

Note: Not illustrated

$80.99

$

In Stock, Qty 6

0
