30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 200000001 - 200999999) (2000) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

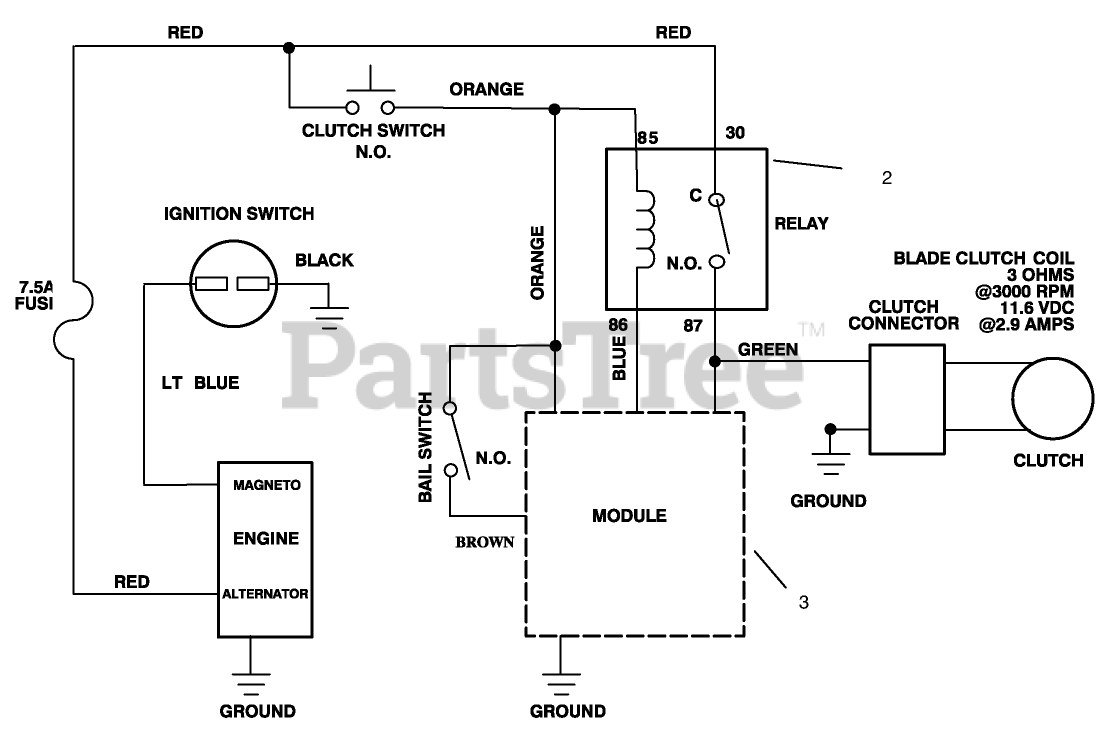

ELECTRIC SCHEMATIC Parts Diagram

  • Title

1

Toro 95-2806

HARNESS - WIRE

$

$

Not available

2

Toro 63-7590

RELAY

$79.99

$

Usually ships in 3-6 days

0

3

Toro 94-9666

MODULE
(Superseded to 107-4113)

$

$

Not available
