30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 200000001 - 200999999) (2000) PARKING BRAKES Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

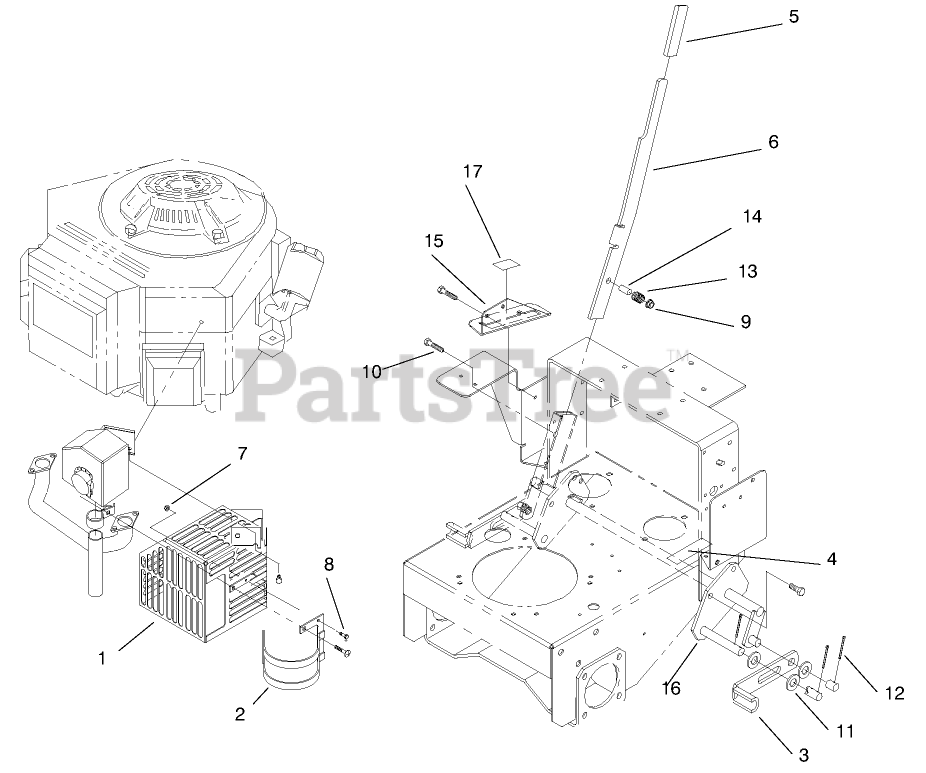

PARKING BRAKES Parts Diagram

  • Title

1

Toro 95-5889

Muffler Guard
(Superseded to 95-5889-03)

$

$

Not available

2

Toro 95-5864

WA - PIPE GUARD

$

$

Not available

3

Toro 95-5885

Stop Arm

$

$

Not available

4

Toro 94-0317

Decal-CE

$

$

Currently unavailable

5

Toro 103712

GRIP

$9.49

$

In Stock, only 3 left!

0

6

Toro 95-5871

Lever-Brake
(Superseded to 95-5871-01)

$

$

Not available

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

9

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

12

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 37-9150

SPRING

$9.49

$

In Stock, only 1 left!

0

14

Toro 40-8130

SPACER

$9.49

$

In Stock, only 1 left!

0

15

Toro 95-5872

Plate-Selector

$191.99

$

Usually ships in 3-6 days

0

16

Toro 95-5877

Brake

$

$

Not available

17

Toro 95-5879

Decal-Parking Brake

$

$

Currently unavailable
