30189 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

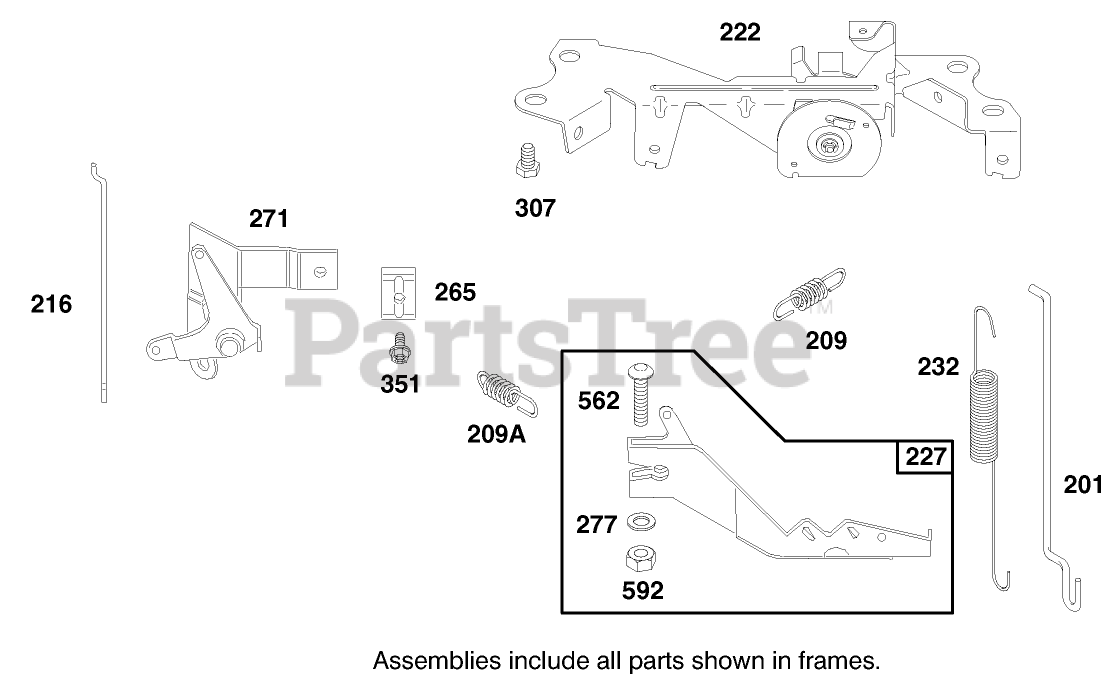

ENGINE BRIGGS & STRATTON MODEL Parts Diagram

  • Title

201

Briggs & Stratton 805480

Link
(Superseded to 847015)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 805463

Governor Spring
(Superseded to 691508)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 805453

Spring-Governor
(Superseded to 692069)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

216

Briggs & Stratton 805439

Link
(Superseded to 690705)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 808195

Bracket-Control
(Superseded to 808454)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 807528

Lever-Governor
(Superseded to 690236)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 805465

Spring-Link
(Superseded to 692073)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 7

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

271

Briggs & Stratton 808145

Lever-Control
(Superseded to 690923)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

277

Briggs & Stratton 805018

Washer
(Superseded to 842122)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

307

Briggs & Stratton 805025

Screw
(Superseded to 692056)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 5

0

351

Briggs & Stratton 805169

Screw-Hex.
(Superseded to 841552)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 805381

Bolt
(Superseded to 690239)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 805383

Nut
(Superseded to 690238)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0
