30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 069000372 - 699999999) (1996) OIL PAN/LUBRICATION Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

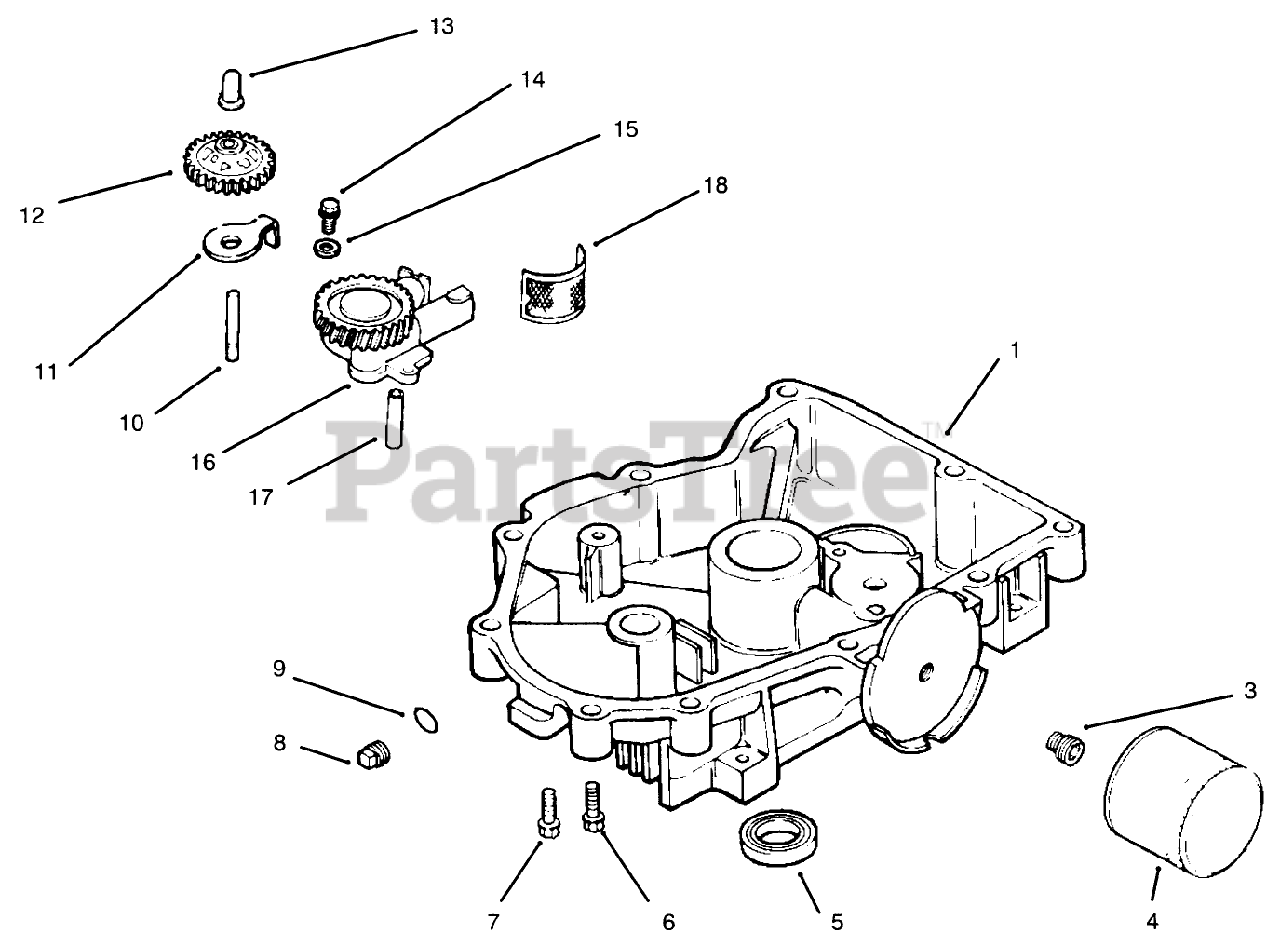

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

2419907

Oil Pan

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

3

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$5.99

$

Usually ships in 2-5 days

0

4

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$13.99

$

In Stock, Qty 20+

0

5

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$10.99

$

In Stock, Qty 20+

0

6

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 20+

0

7

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 20+

0

8

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 14

0

9

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$4.49

$

In Stock, Qty 6

0

11

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 043 12

Kit-Governor Gear (Incl. Ref. #13)
(Superseded to 24 043 12-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$68.99

$

In Stock, Qty 5

0

13

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$3.49

$

In Stock, Qty 16

0

14

Kohler M-645025

Screw
(Superseded to M-645025-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 12

0

15

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 8

0

16

2439308

Oil Pump Assembly (Incl. Ref. #17)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

17

2412305

Tube-Oil Pickup

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

18

2516207

Screen-Oil

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available
