30192 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 079000001 - 079999999) (1997) 20 HP ENGINE & OIL COOLER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

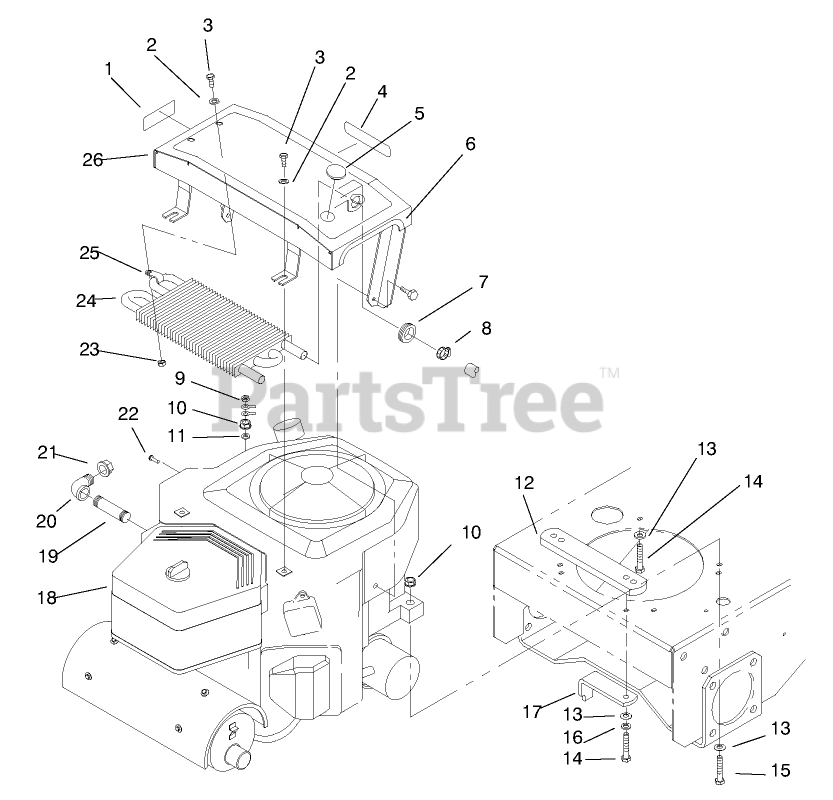

20 HP ENGINE & OIL COOLER Parts Diagram

  • Title

1

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 13

0

3

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 54-0890

DECAL-ROTATING

$

$

Not available

5

Toro 2410-71

PLUG-PLASTIC

$

$

Not available

6

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

7

Toro 240-9

GROMMET

$4.99

$

In Stock, only 1 left!

0

8

Toro 2412-136

CLAMP-HOSE

$

$

Not available

9

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 5

0

10

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.99

$

Usually ships in 3-6 days

0

11

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

12

Toro 93-1176

SPACER - ENGINE

$

$

Not available

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

15

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 15

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

17

Toro 51-4540-03

RETAINER-CLUTCH

$23.99

$

In Stock, only 2 left!

0

18

Toro 93-1169

ENGINE - 20HP KOHLER

$

$

Not available

19

Toro 289-42

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

20

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

21

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

22

Toro 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 82-4220

Cooler-Oil
(Superseded to 105-4609)

$

$

Not available

25

Toro 2412-134

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

26

Toro 93-1183-03

MOUNT-20HP COOLER

$

$

Not available
