30192 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 200000001 - 200999999) (2000) Traction Drive Motor Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

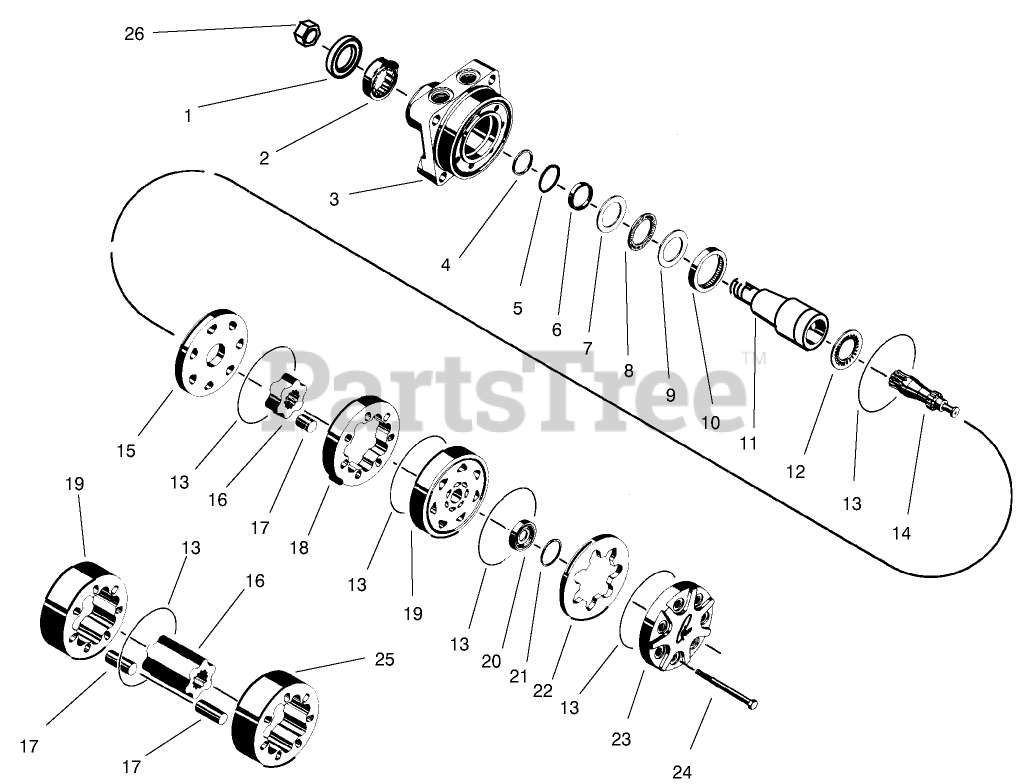

Traction Drive Motor Parts Diagram

  • Title

1

Seal ASM

$

$

Not available

4

Washer-Back Up

$

$

Not available

5

Washer-Back Up

$

$

Not available

6

Seal ASM

$

$

Not available

10

Bearing-Inner

$

$

Not available

11

Coupling-Shaft

$

$

Not available

13

"O"Ring

$

$

Not available

14

Link-Drive

$

$

Not available

15

Plate Wear

$

$

Not available

19

Manifold

$

$

Not available

22

Commutator-Ring

$

$

Not available

23

Cover-End

$

$

Not available

24

Bolt-Special

$

$

Not available

25

Stator Half

$

$

Not available

26

Toro 85-7310

NUT-MOTOR, WHEEL

$30.99

$

Usually ships in 3-6 days

0

Toro 85-7320

See Supercession: 106-1989
(Superseded to 106-1989)

Note: Not illustrated

$194.99

$

Usually ships in 3-6 days

0
