30192100 - Gravely EZT Hydro-Gear Transmission 30192100 -EZT Transmission Parts Diagram

EZT Hydro-Gear Transmission

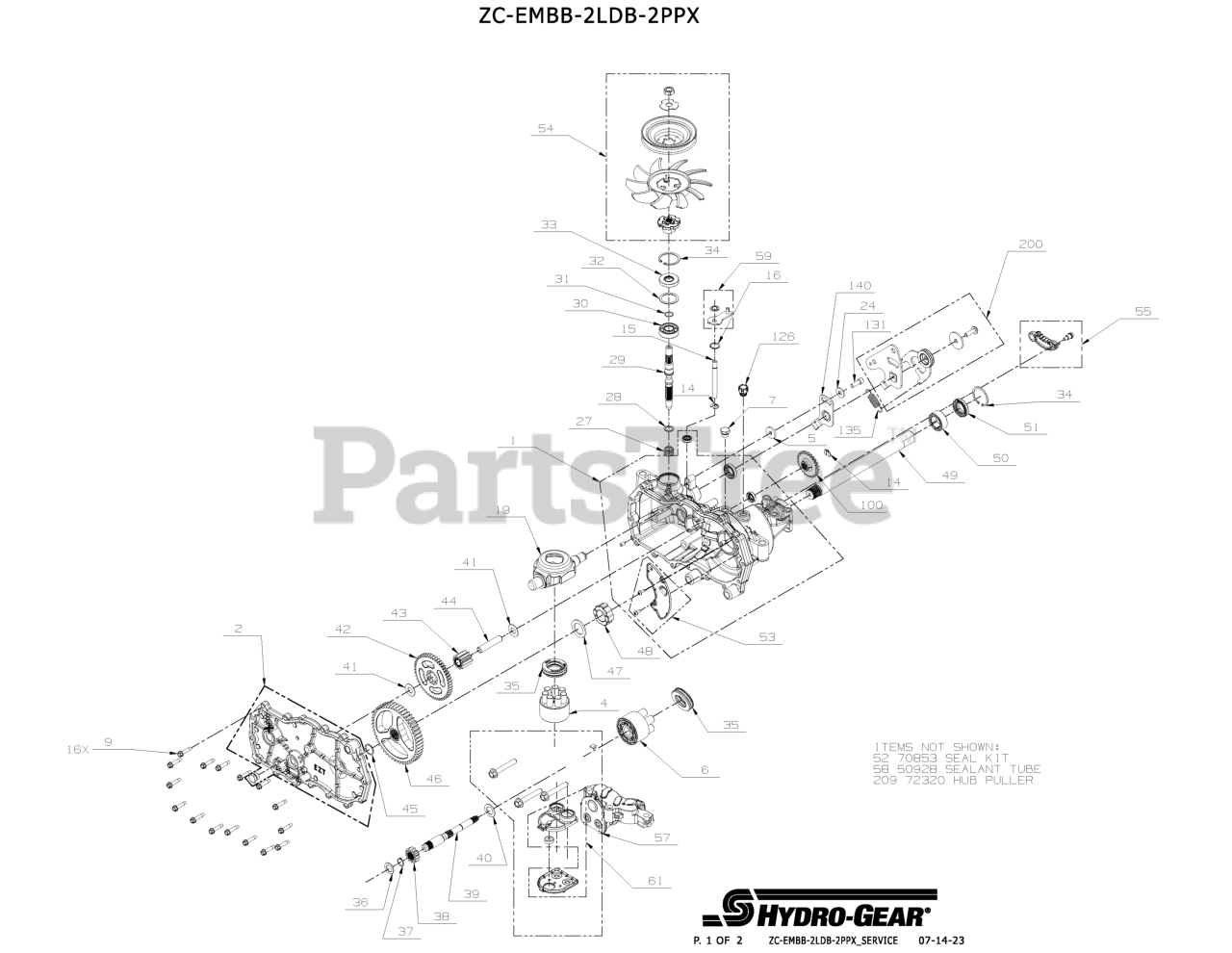

30192100 -EZT Transmission Parts Diagram

  • Title

Not Shown

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Recommended Transmission Oil. Approximately 53 to 59oz

$14.99

$

Usually ships in 4-12 days

0

Not Shown

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Optional Transmission Oil. Approximately 53 to 59oz

$14.99

$

In Stock, Qty 20+

0

1

Gravely 21543947

ASSEMBLY, MAIN HOUSING

$399.99

$

Usually ships in 4-12 days

0

2

KIT, SIDE HOUSING, RH W/DRAIN

Note: Hydro-Gear Part 73395

$

$

Not available

4

Gravely 21543921

ASSY, BLOCK 7 PISTON

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 21543870

SPACER

$

$

Not available

6

Gravely 21543889

KIT, 10 CC BLOCK

$103.99

$

Usually ships in 4-12 days

0

7

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 3 left!

0

14

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 9

0

15

Gravely 21543844

ROD, BYPASS

$

$

Not available

16

Gravely 21543846

RING, RET .750

$

$

Not available

19

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

24

Gravely 08611200

WASHER

$4.49

$

Usually ships in 4-12 days

0

27

Gravely 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

28

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

29

Gravely 21543785

SHAFT, INPUT

$106.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BRG, BALL 17X40X12

$21.99

$

Usually ships in 4-12 days

0

31

Gravely 21543960

RING, RET WIRE .561 ID

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 1 left!

0

33

Gravely 21543816

SEAL, LIP 17X40X7

$15.99

$

Usually ships in 4-12 days

0

34

Gravely 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

35

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

36

Gravely 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 21543704

RING, RET 62 EXT

$1.99

$

Usually ships in 4-12 days

0

38

Gravely 21543807

GEAR, 13T PINNION

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 21543859

SHAFT, MOTOR

$

$

Not available

40

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

41

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

42

Gravely 21543806

GEAR, 10T/48T

$44.99

$

In Stock, only 1 left!

0

43

Gravely 21543781

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

Note: Hydro-Gear Part 55710

$

$

Not available

45

RING, SPIRAL RETAINING-87

Note: Hydro-Gear Part 52531

$

$

Not available

46

GEAR, BULL 52T

Note: Hydro-Gear Part 52541

$

$

Not available

47

WASHER, 1.018 X 1.571 X .105 FLAT

Note: Hydro-Gear Part 52532

$

$

Not available

48

BUSHING, SLEEVE (INBOARD)

Note: Hydro-Gear Part 52542

$

$

Not available

49

Gravely 21500031

SHAFT 1.00 X 11.7 D AXLE

$63.99

$

Usually ships in 4-12 days

0

50

BUSHING, 1.003 x 1.571 x .625

Note: Hydro-Gear Part 51517

$

$

Not available

51

SEAL, LIP, TC4 1.00 X 1.577 X .27

Note: Hydro-Gear Part 51518

$

$

Not available

52

Gravely 21543935

KIT, SEALS AND RETAINING

$82.99

$

In Stock, Qty 5

0

53

Gravely 21543988

KIT, EXPANSION PLATE RH

$

$

Not available

54

Gravely 21543736

FAN PULLEY KIT 4.5X1.625

$87.99

$

In Stock, Qty 20+

0

55

Gravely 00362500

BRAKE ARM-LH, EZT
(Superseded to 51514100)

$59.99

$

In Stock, Qty 18

0

57

Gravely 21500060

KIT, CENTER SECTION RH

$185.99

$

Usually ships in 4-12 days

0

58

Gravely 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

59

KIT, BYPASS

$

$

Not available

61

Gravely 21543958

KIT, FILTER

$19.99

$

Usually ships in 4-12 days

0

100

Gravely 21543851

DISC, COG BRAKE

$22.99

$

In Stock, only 2 left!

0

126

ASSEMBLY, FITTING 9/16-18 BREATHER

Note: Hydro-Gear Part 55465

$

$

Not available

131

KIT, RTN SCREWS

Note: Hydro-Gear Part 71341

$

$

Not available

135

Gravely TCU19204

SPRING, EXTENSION

$

$

Not available

140

Gravely 21543866

ARM, NEUTRAL RIGHT

$26.99

$

Usually ships in 4-12 days

0

200

KIT RTN BIDIRECTIONAL

Note: Hydro-Gear Part 71588

$

$

Not available

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Optional Service Tool

$461.99

$

Usually ships in 4-12 days

0
