30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 099000251 - 099999999) (1999) STARTER Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

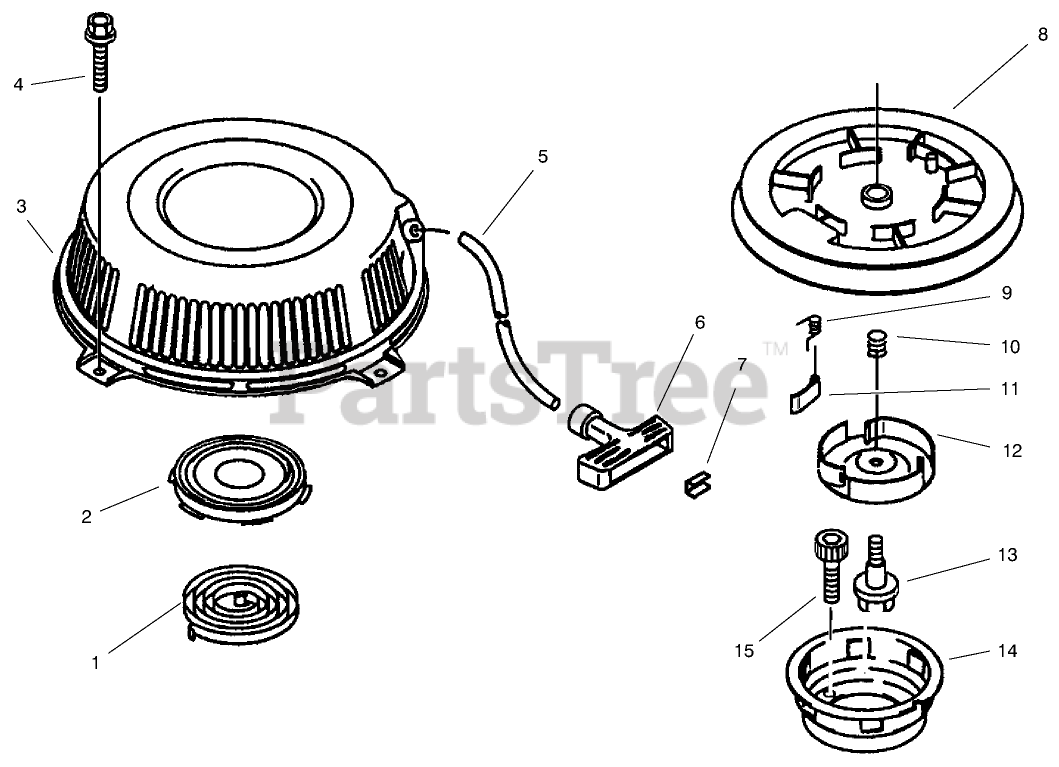

STARTER Parts Diagram

  • Title

1

Toro 90281-2267

Spring-Recoil

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

2

Kawasaki 32099-2060

Case

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$8.49

$

In Stock, only 3 left!

0

3

Toro 32099-2239-yk

Case-Recoil Starter

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

5

Kawasaki 59106-2060

Rope

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Not available

6

Kawasaki 46075-2059

Grip
(Superseded to 46075-2016)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$8.49

$

Usually ships in 2-5 days

0

7

Kawasaki 92022-2248

Washer

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$2.49

$

In Stock, only 4 left!

0

8

Kawasaki 59101-2054

Reel

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Not available

9

Kawasaki 92081-2021

Spring

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 19

0

10

Toro 92081-2268

Spring

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

11

Kawasaki 13165-2073

Pawl
(Superseded to 13165-2057)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 12

0

12

Kawasaki 14020-2054

Retainer

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Not available

13

Kawasaki 92001-2027

Bolt
(Superseded to 314501-3447A)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$3.99

$

In Stock, only 3 left!

0

14

Toro 49080-2144

Pulley-Starting

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

15

Toro 120p0620

Bolt-Socket

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

16

Kawasaki 49088-2412-YK

Starter-Recoil

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$193.99

$

In Stock, Qty 5

0
