30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 099000251 - 099999999) (1999) Starter Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

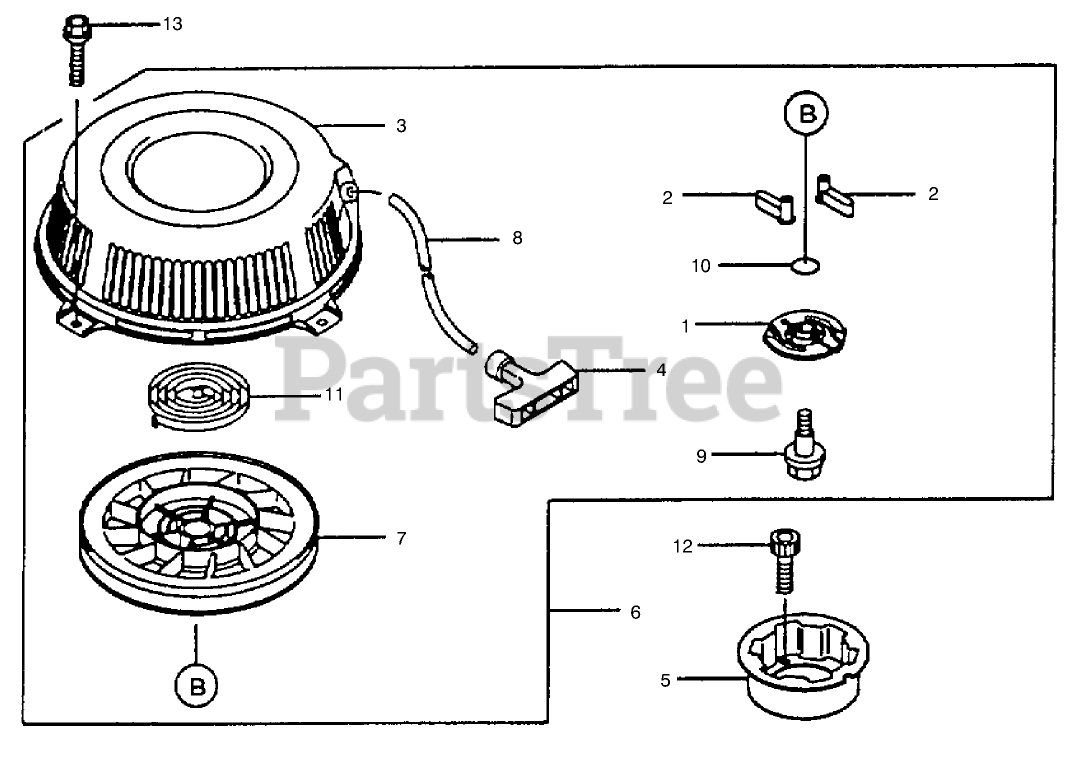

Starter Parts Diagram

  • Title

1

Toro 90281-2267

Spring-Recoil

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

2

Toro 32099-2060

Case

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

3

Toro 32099-2239-yk

Case-Recoil Starter

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Toro 130B0610

BOLT-FLANGED (6X10)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

5

Toro 59106-2060

Rope

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

6

Toro 46075-2059

Grip

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

7

Toro 92022-2248

Washer

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

8

Toro 59101-2054

Reel

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

9

Toro 92081-2021

Spring

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

10

Toro 92081-2268

Spring

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

11

Toro 13165-2073

Pawl

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

12

Toro 14020-2054

Retainer

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

13

Toro 92001-2027

Bolt

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

14

Toro 49080-2144

Pulley-Starting

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

15

Toro 120p0620

Bolt-Socket

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$

$

Currently unavailable

16

Toro 49088-2412-YK

Starter-Recoil (Incl. Ref. #1-5 8-14)

Note: KAWASAKI MODEL FB460V-MS14 Obtain Parts From Kawasaki

$193.99

$

In Stock, Qty 5
