30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) ELECTRIC EQUIPMENT Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

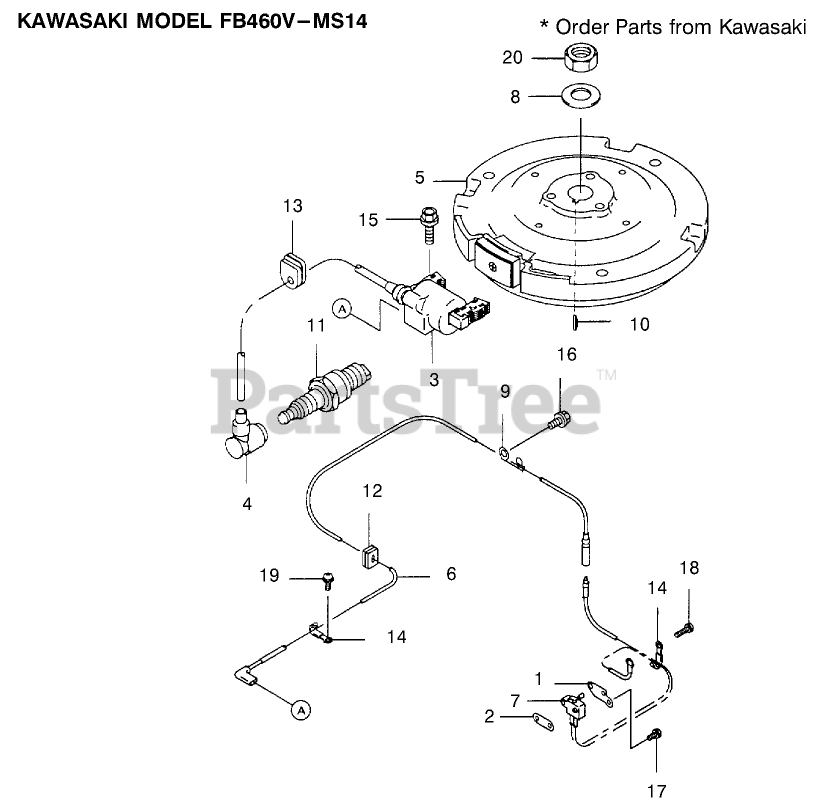

ELECTRIC EQUIPMENT Parts Diagram

  • Title

1

Kawasaki 13183-2373

Plate

$2.99

$

Usually ships in 2-5 days

0

2

Toro 13183-2374

Plate

$

$

Currently unavailable

3

Kawasaki 21121-2086

Coil-Ignition

$108.99

$

In Stock, only 1 left!

0

4

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

$14.99

$

In Stock, only 1 left!

0

5

Toro 21194-2324

Flywheel-Comp

$

$

Currently unavailable

6

Toro 26011-2326

Wire-Lead L530

$

$

Currently unavailable

7

Toro 27010-2167

Switch

$

$

Currently unavailable

8

Kawasaki 92022-2178

Washer

$2.99

$

Usually ships in 2-5 days

0

9

Kawasaki 92037-2011

Clamp

$1.99

$

Usually ships in 2-5 days

0

10

Kawasaki 92038-2094

Key

$2.49

$

In Stock, only 2 left!

0

11

Toro 92070-2105

Plug-Spark BMR4A (NGK)

$

$

Currently unavailable

12

Kawasaki 92071-2099

Grommet

$

$

Not available

13

Kawasaki 92071-2100

Grommet

$1.99

$

In Stock, only 1 left!

0

14

Kawasaki 92170-2029

Clamp

$6.49

$

Usually ships in 2-5 days

0

15

Toro 130b0520

Bolt-Flange

$

$

Currently unavailable

16

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 14

0

17

Kawasaki 223B0410

Screw-Pan Ws Cros
(Superseded to 223AA0410)

$0.99

$

Usually ships in 2-5 days

0

18

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

19

Toro 234b0408

Screw

$

$

Currently unavailable

20

Kawasaki 314G1800

Nut

$2.49

$

In Stock, only 2 left!

0
