30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 099000201 - 099999999) (1999) ELECTRIC-EQUIPMENT Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

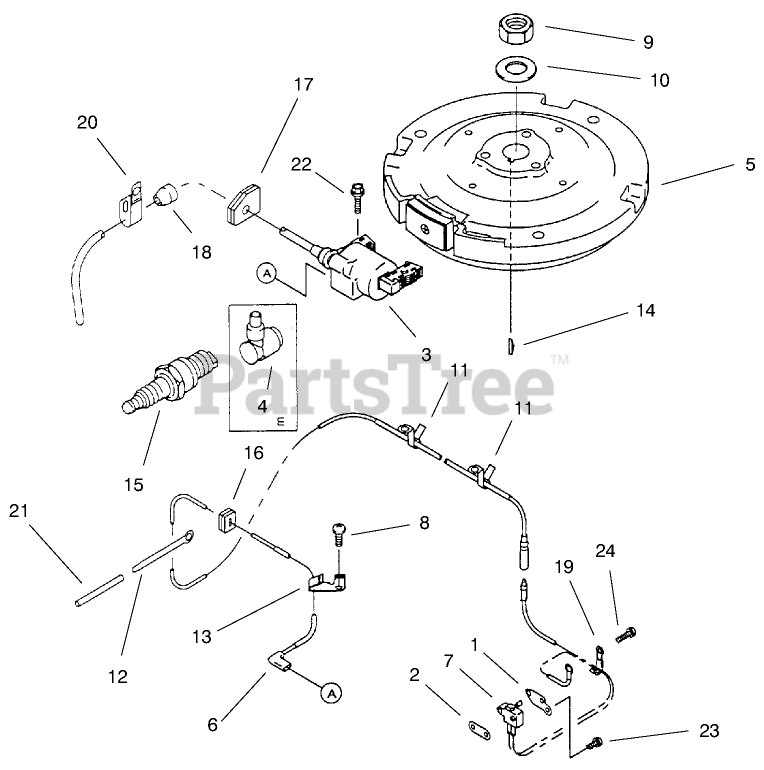

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

1

Kawasaki 13183-2373

Plate

$2.99

$

Usually ships in 2-5 days

0

2

Toro 131-2374

HYDRAULIC TUBE ASM

$

$

Currently unavailable

3

Kawasaki 21121-2086

Coil-Ignition

$108.99

$

In Stock, only 1 left!

0

4

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

$14.99

$

In Stock, only 1 left!

0

5

Kawasaki 21194-2299

Flywheel-Comp

$

$

Not available

6

Toro 26011-2327

Wire-Lead L-620

$

$

Currently unavailable

7

Toro 27010-2167

Switch

$

$

Currently unavailable

8

Kawasaki 92009-2308

Screw

$0.99

$

Usually ships in 2-5 days

0

9

Kawasaki 92015-2167

Nut

$7.49

$

Usually ships in 2-5 days

0

10

Kawasaki 92022-2229

Washer

$3.99

$

Usually ships in 2-5 days

0

11

Kawasaki 92037-2011

Clamp

$1.99

$

Usually ships in 2-5 days

0

12

Kawasaki 92037-2063

Clamp

$0.99

$

Usually ships in 2-5 days

0

13

Toro 92037-2177

Clamp

$

$

Currently unavailable

14

Kawasaki 92038-2094

Key

$2.49

$

In Stock, only 2 left!

0

15

Toro 92070-2088

SPARK PLUG, B P R 5E S (N G K) SOLID

$

$

Currently unavailable

16

Kawasaki 92071-2099

Grommet

$

$

Not available

17

Kawasaki 92071-2112

Grommet

$6.99

$

Usually ships in 2-5 days

0

18

Kawasaki 92071-517

Grommet

$

$

Not available

19

Kawasaki 92170-2029

Clamp

$6.49

$

Usually ships in 2-5 days

0

20

Kawasaki 92170-2081

Clamp
(Superseded to 92171-7008)

$1.99

$

In Stock, Qty 5

0

21

Kawasaki 92190-2167

Tube

$1.49

$

Usually ships in 2-5 days

0

22

Toro 130b0520

Bolt-Flange

$

$

Currently unavailable

23

Toro 233B0410

Screw-Pan Ws Cros

$

$

Currently unavailable

24

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0
