30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 200000001 - 200999999) (2000) CONTROL-EQUIPMENT Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

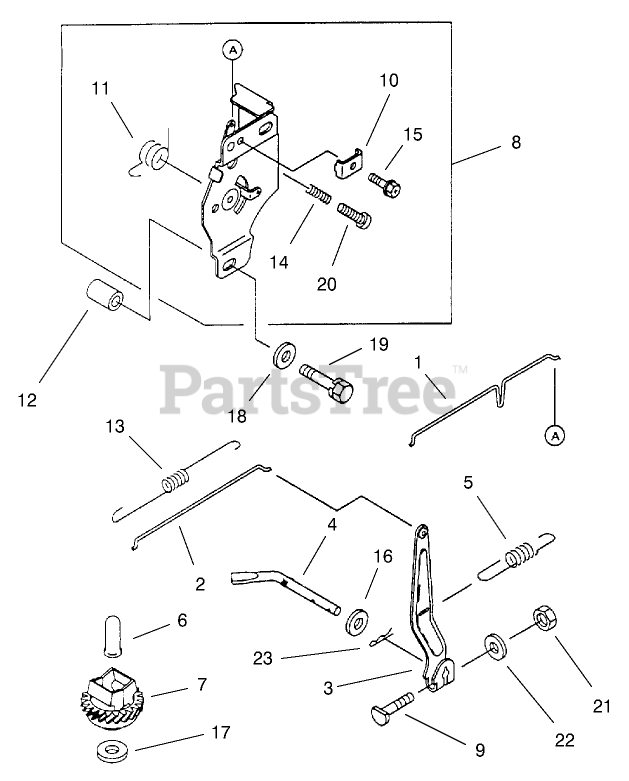

CONTROL-EQUIPMENT Parts Diagram

  • Title

1

Kawasaki 16169-2130

Link-Choke
(Superseded to 16169-2088)

$2.99

$

In Stock, only 1 left!

0

2

Kawasaki 16171-2079

Link-Governor
(Superseded to 16171-2056)

$0.99

$

In Stock, only 4 left!

0

3

Toro 21187-2055

Arm Assy

$

$

Currently unavailable

4

Kawasaki 39003-2073

Arm-Pivot

$

$

Not available

5

Toro 39129-2042

Spring-Governor

$

$

Currently unavailable

6

Kawasaki 42036-2060

Sleeve
(Superseded to 42036-2059)

$4.99

$

In Stock, only 4 left!

0

7

Kawasaki 49110-2084

Governor ASM
(Superseded to 49110-2067)

$

$

Not available

8

Toro 49113-2091

Panel-Comp Control

$

$

Currently unavailable

9

Kawasaki 92002-2269

Bolt (6X28)

$1.99

$

In Stock, Qty 6

0

10

Kawasaki 92037-2020

Clamp

$1.99

$

Usually ships in 2-5 days

0

11

Kawasaki 92081-2316

Spring

$

$

Not available

12

Toro 92143-2006

Collar

$

$

Currently unavailable

13

Kawasaki 92144-2033

Spring

$

$

Not available

14

Kawasaki 92144-2266

Spring

$5.49

$

In Stock, only 1 left!

0

15

Kawasaki 92150-2182

BOLT (5X18)

$0.99

$

In Stock, Qty 18

0

16

Kawasaki 92200-2029

WASHER (6.5X11.5X2.0)

$0.99

$

In Stock, only 3 left!

0

17

Kawasaki 92200-2036

Washer (6.2X20X0.5)

$1.49

$

In Stock, Qty 5

0

18

Toro 92200-2070

Washer

$

$

Currently unavailable

19

Kawasaki 180B0635

Bolt-Upset WS
(Superseded to 180AA0635)

$2.49

$

In Stock, Qty 20+

0

20

Toro 214b0416

Screw

$

$

Currently unavailable

21

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

22

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, only 1 left!

0

23

Toro 544A0600

Pin-Snap

$

$

Currently unavailable
