30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 210000001 - 210999999) (2001) VALVE/CAMSHAFT Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

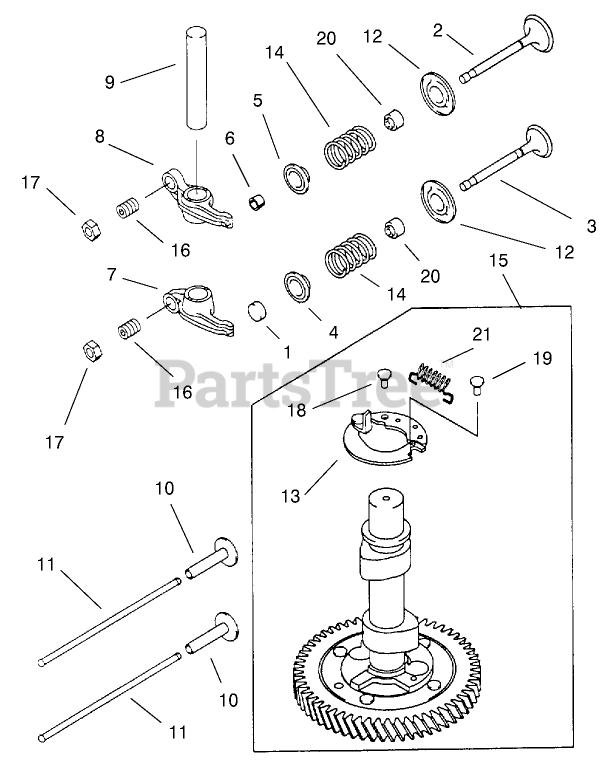

VALVE/CAMSHAFT Parts Diagram

  • Title

1

Kawasaki 11012-2189

Cap-Valve
(Superseded to 11012-2184)

$4.99

$

Usually ships in 2-5 days

0

2

Kawasaki 12004-2097

Valve-Intake
(Superseded to 12004-2085)

$

$

Not available

3

Kawasaki 12005-2086

Valve-Exhaust

$

$

Not available

4

Kawasaki 12009-2058

Retainer-Valve Spring
(Superseded to 12009-2056)

$13.99

$

Usually ships in 2-5 days

0

5

Kawasaki 12009-2060

Retainer-Spring, Valve

$5.99

$

In Stock, Qty 9

0

6

Kawasaki 12011-2052

Collet

$2.99

$

In Stock, Qty 17

0

7

Kawasaki 12016-2054

Arm-Rocker

$

$

Not available

8

Kawasaki 12016-2055

Arm-Rocker

$

$

Not available

9

Toro 12020-2058

Shaft-Rocker

$

$

Currently unavailable

10

Kawasaki 12032-2068

Tappet
(Superseded to 12032-2061)

$10.99

$

In Stock, only 1 left!

0

11

Kawasaki 13116-2056

Rod-Push

$

$

Not available

12

Toro 16007-2073

Seat-Spring

$

$

Currently unavailable

13

Kawasaki 21118-2077

Decompressor
(Superseded to 21118-2055)

$

$

Not available

14

Kawasaki 49078-2076

Spring-Engine Valve
(Superseded to 49078-2068)

$4.99

$

Usually ships in 2-5 days

0

15

Toro 49118-2133

Camshaft-Comp

$

$

Currently unavailable

16

Kawasaki 92009-2182

Screw

$

$

Not available

17

Toro 92015-2139

Nut

$

$

Currently unavailable

18

Kawasaki 92043-2113

Pin

$1.99

$

Usually ships in 2-5 days

0

19

Kawasaki 92043-2208

Pin

$13.99

$

Usually ships in 2-5 days

0

20

Kawasaki 92049-2223

Seal-Oil
(Superseded to 92049-2275)

$4.49

$

In Stock, Qty 5

0

21

Kawasaki 92144-2323

Spring

$3.99

$

Usually ships in 2-5 days

0
