30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

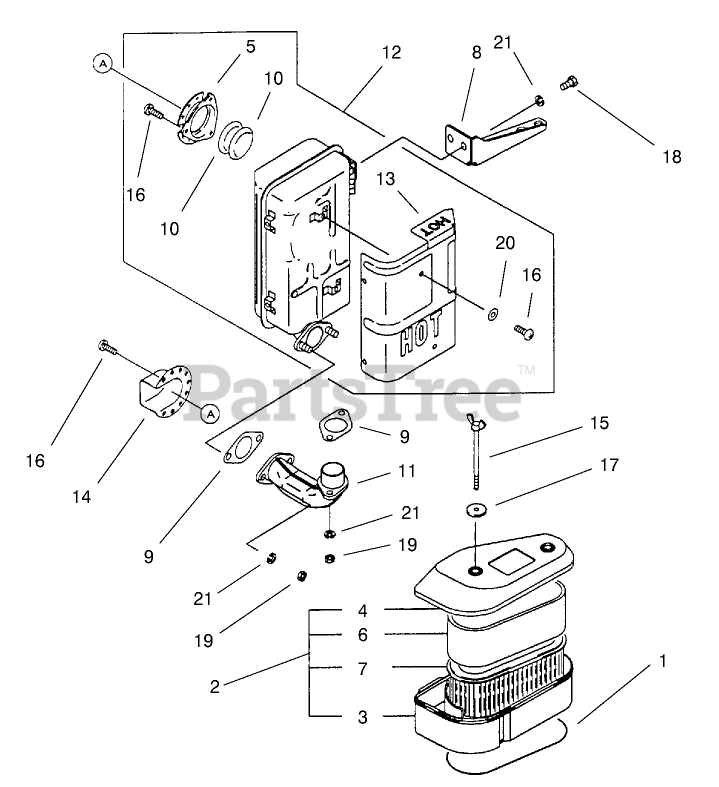

AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title

1

Kawasaki 11009-2505

Gasket-Air Filter

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 5

0

2

Kawasaki 11010-2421

Filter Assy-Air
(Superseded to 11010-2327)

Note: Obtain Parts From Kawasaki

$71.99

$

In Stock, only 3 left!

0

3

Kawasaki 11011-2227

Case-Air Filter
(Superseded to 11011-2185)

Note: Obtain Parts From Kawasaki

$

$

Not available

4

Kawasaki 11012-2223

Cap-Air Filter

Note: Obtain Parts From Kawasaki

$

$

Not available

5

Kawasaki 11012-2383-9Y

Cap
(Superseded to 11012-2258-9Y)

Note: Obtain Parts From Kawasaki

$

$

Not available

6

Kawasaki 11013-2109

Element-Air Filter
(Superseded to 11013-2140)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 9

0

7

Kawasaki 11013-2141

Element-Air Filter
(Superseded to 11013-2110)

Note: Obtain Parts From Kawasaki

$17.99

$

In Stock, Qty 12

0

8

Toro 11046-2160-9Y

Bracket

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

9

Kawasaki 11060-2382

Gasket-Muffler
(Superseded to 11009-2755)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 9

0

10

Kawasaki 18077-2052

Arrester-Spark

Note: Obtain Parts From Kawasaki

$

$

Not available

11

Kawasaki 49062-2057-9Y

Pipe-Comp Exhaust

Note: Obtain Parts From Kawasaki

$

$

Not available

12

Kawasaki 49069-2228-9Y

Muffler Assy

Note: Obtain Parts From Kawasaki

$

$

Not available

13

Toro 49106-2471-9Y

Cover-Muffler

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

14

Kawasaki 49107-2119-9Y

Cover-Exhaust Pipe

Note: Obtain Parts From Kawasaki

$12.99

$

Usually ships in 2-5 days

0

15

Kawasaki 92002-2274

Bolt
(Superseded to 92153-1971)

Note: Obtain Parts From Kawasaki

$

$

Not available

16

Kawasaki 92009-2166

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

17

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

Note: Obtain Parts From Kawasaki

$

$

Not available

18

Toro 115G816

Bolt-Small Upset

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

19

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

20

Toro 411B0500

Washer

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

21

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
