30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

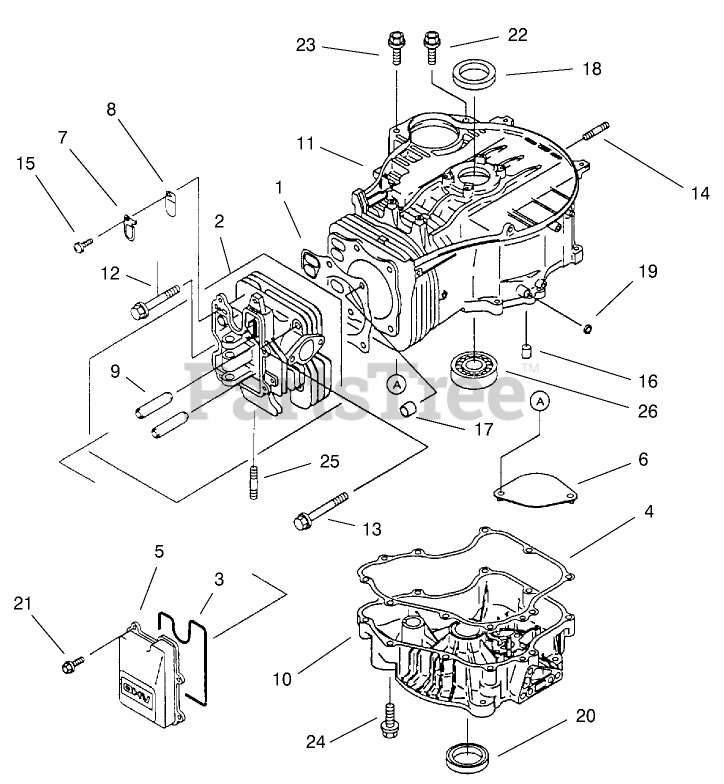

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title

1

Kawasaki 11004-2096

Gasket-Head
(Superseded to 11004-2095)

Note: Obtain Parts From Kawasaki

$11.99

$

In Stock, only 3 left!

0

2

Kawasaki 11008-6026

Head Comp-Cylinder
(Superseded to 11008-6016)

Note: Obtain Parts From Kawasaki

$284.99

$

Usually ships in 2-5 days

0

3

Kawasaki 11009-2433

Gasket-Rocker Case

Note: Obtain Parts From Kawasaki

$14.99

$

In Stock, only 2 left!

0

4

Toro 11009-2947

Gasket-Crankcase Cover

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

5

Kawasaki 11022-2070

Case-Rocker
(Superseded to 11022-2055)

Note: Obtain Parts From Kawasaki

$24.99

$

Usually ships in 2-5 days

0

6

Kawasaki 13183-2264

Plate

Note: Obtain Parts From Kawasaki

$

$

Not available

7

Kawasaki 13270-2055

Plate
(Superseded to 13169-2436)

Note: Obtain Parts From Kawasaki

$

$

Not available

8

Kawasaki 16126-2113

Valve

Note: Obtain Parts From Kawasaki

$

$

Not available

9

Kawasaki 49002-2107

Guide-Valve

Note: Obtain Parts From Kawasaki

$

$

Not available

10

Kawasaki 49015-6174

Cover-Crankcase
(Superseded to 49015-6028)

Note: Obtain Parts From Kawasaki

$

$

Not available

11

Toro 49120-2269

Crankcase-Comp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

12

Toro 92002-2273

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

13

Kawasaki 92002-2310

Bolt

Note: Obtain Parts From Kawasaki

$

$

Not available

14

Kawasaki 92004-2083

Stud

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

15

Kawasaki 92009-2308

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

16

Kawasaki 92043-1263

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

17

Kawasaki 92043-1266

Pin

Note: Obtain Parts From Kawasaki

$1.49

$

Usually ships in 2-5 days

0

18

Kawasaki 92049-2096

Oil Seal

Note: Obtain Parts From Kawasaki

$8.99

$

In Stock, only 1 left!

0

19

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 10

0

20

Kawasaki 92049-2227

Seal-Oil

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 12

0

21

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 4 left!

0

22

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

23

Kawasaki 130B0835

Bolt-Flanged
(Superseded to 130AA0835)

Note: Obtain Parts From Kawasaki

$1.49

$

Usually ships in 2-5 days

0

24

Kawasaki 130T0845

Bolt-Flanged
(Superseded to 130CA0845)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 5

0

25

Kawasaki 171G0820

Bolt-Stud
(Superseded to 171BA0820)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 6

0

26

Kawasaki 601A6307

Bearing-Ball

Note: Obtain Parts From Kawasaki

$

$

Not available
