30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

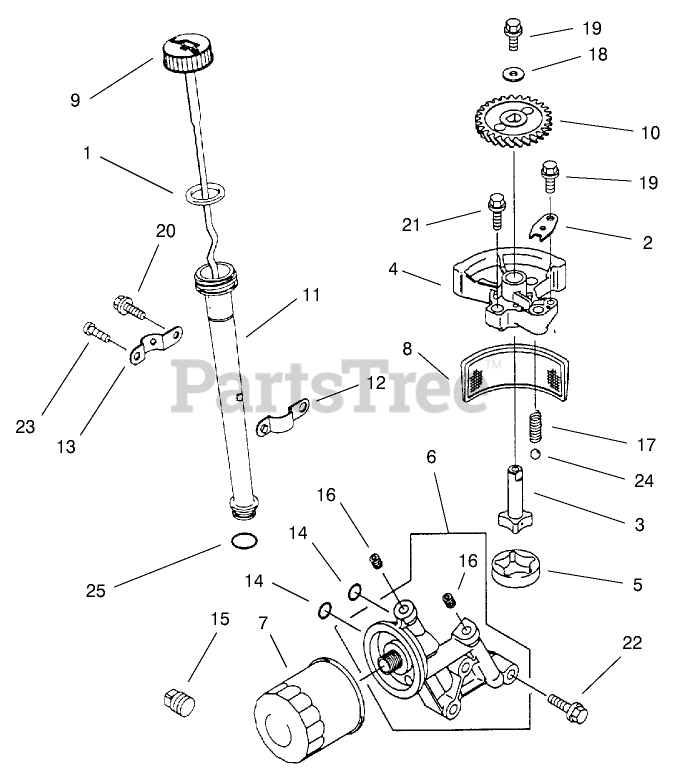

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title

1

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 4 left!

0

2

Kawasaki 13270-2054

Plate
(Superseded to 13169-2360)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

3

Toro 16082-2059

Pump Assy-Oil

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Toro 16142-2068

Cover-Pump

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

5

Kawasaki 16154-2052

Rotor-Pump

Note: Obtain Parts From Kawasaki

$

$

Not available

6

Toro 31064-6001

Pipe-Comp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

7

Kawasaki 49065-2071

Filter-Oil

Note: Obtain Parts From Kawasaki

$15.99

$

In Stock, Qty 20+

0

8

Kawasaki 49065-2073

Filter-Oil

Note: Obtain Parts From Kawasaki

$

$

Not available

9

Kawasaki 52005-2105

Gauge

Note: Obtain Parts From Kawasaki

$

$

Not available

10

Toro 59056-2090

Gear-Helical

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11

Kawasaki 59231-2062

Filler

Note: Obtain Parts From Kawasaki

$5.99

$

Usually ships in 2-5 days

0

12

Toro 92037-2199

Clamp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

13

Kawasaki 92037-2200

Clamp

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

14

Kawasaki 92055-2073

Ring-O

Note: Obtain Parts From Kawasaki

$

$

Not available

15

Toro 92066-2079

Plug

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

16

Kawasaki 92066-2211

Plug

Note: Obtain Parts From Kawasaki

$2.99

$

Usually ships in 2-5 days

0

17

Kawasaki 92144-2391

Spring

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

18

Kawasaki 92200-2035

Washer

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 8

0

19

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 14

0

20

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 4 left!

0

21

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

22

Kawasaki 130B0840

Bolt-Flanged
(Superseded to 130BA0840)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 11

0

23

Kawasaki 220B0608

Screw-Pan Cros
(Superseded to 220AA0608)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

24

Kawasaki 600A1000

Ball

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 8

0

25

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 20+

0
