30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 099000001 - 099999999) (1999) SPINDLES AND BLADES Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

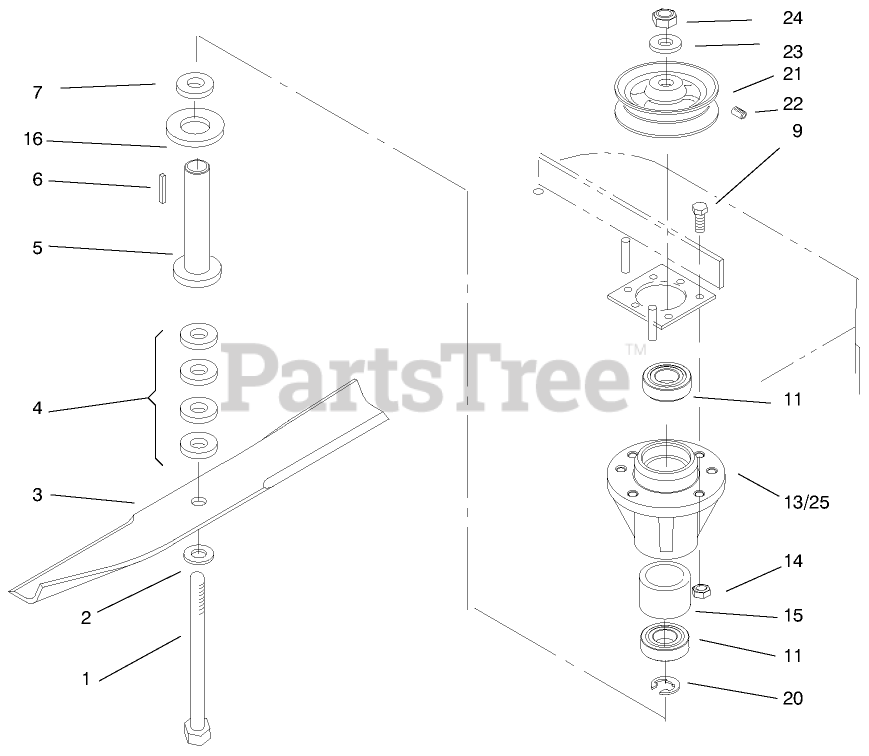

SPINDLES AND BLADES Parts Diagram

  • Title

1

Toro E800861

Screw-HH
(Superseded to 1-800861)

$19.99

$

Usually ships in 3-6 days

0

2

Toro E513208

Spring-Disk
(Superseded to 1-513208)

$8.99

$

In Stock, Qty 20+

0

3

Toro E323515

Blade-High Lift
(Superseded to 103-2527)

$31.99

$

In Stock, Qty 20+

0

3

Toro E403149

Blade-Low Lift
(Superseded to 103-2507)

$27.99

$

In Stock, only 4 left!

0

4

Toro E323539

Spacer
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

5

Toro E323529

Tube Spindle Short
(Superseded to 1-323529)

$86.99

$

In Stock, Qty 7

0

6

Toro E807267

Key
(Superseded to 1-807267)

$2.99

$

In Stock, Qty 10

0

7

Toro E323533

Spacer
(Superseded to 1-323533)

$5.49

$

In Stock, Qty 14

0

9

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro E513016

Bearing
(Superseded to 1-513016)

$79.99

$

In Stock, Qty 20+

0

13

Toro E634619

Housing-Spindle
(Superseded to 107-4065)

$159.99

$

In Stock, only 1 left!

0

14

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

15

Toro E323528

Spacer
(Superseded to 1-323528)

$9.99

$

In Stock, Qty 17

0

16

Toro E633573

Guard
(Superseded to 1-633573)

$5.49

$

In Stock, Qty 10

0

20

Toro E403167

Ring-Retaining
(Superseded to 1-403167)

$

$

Not available

21

Toro E303558

Pulley
(Superseded to 1-403183)

$69.99

$

In Stock, Qty 9

0

22

Toro E803310

Screw-Set
(Superseded to 1-803310)

$2.99

$

In Stock, only 3 left!

0

23

Toro E323399

Spacer
(Superseded to 1-323399)

$9.49

$

Usually ships in 3-6 days

0

24

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

25

Toro E323532

Housing
(Superseded to 103-7975)

$61.99

$

Usually ships in 3-6 days

0
