302 (190-302-100) - Cub Cadet 42" Snow Blade att Blade Pivot & Mounting (2010 & before) Parts Diagram

42" Snow Blade

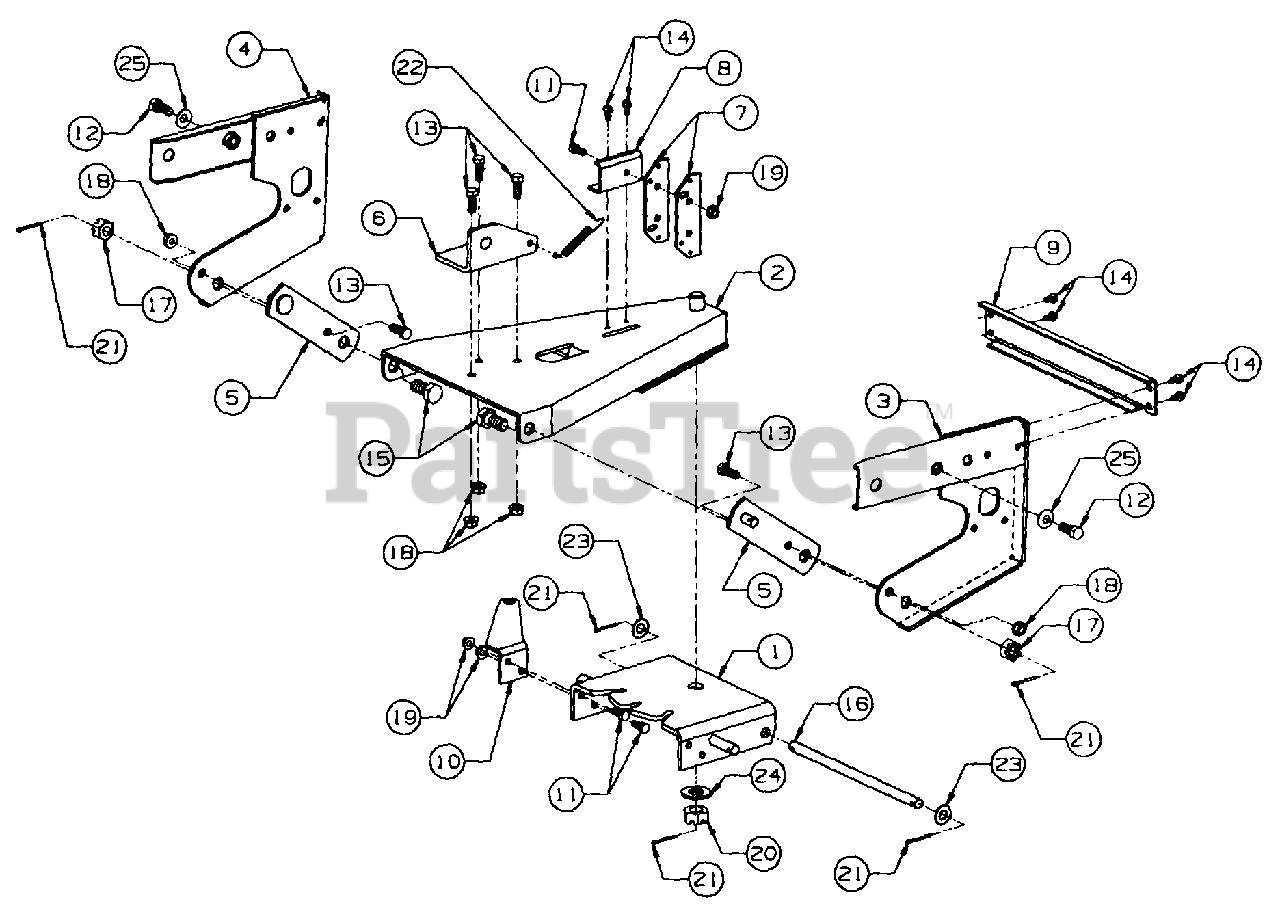

Blade Pivot & Mounting (2010 & before) Parts Diagram

  • Title

1

Cub Cadet 603-0266-0716

Pivot Assy, Blade

$142.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0267-0716

A-Frame, Blade

$

$

Not available

3

Cub Cadet 603-0268-0716

Hitch, Blade - RH

$84.99

$

In Stock, only 1 left!

0

4

Cub Cadet 603-0269-0716

Hitch, Blade - LH

$98.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0270-0716

Arm, Mounting
(Superseded to 603-0270-4021)

$44.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2679-0716

Bracket, Front Lift

$26.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2692-0637

Plate, Blade Angle Latch

$26.99

$

In Stock, Qty 10

0

8

Cub Cadet 703-2693-0716

Bracket, Latch Pivot
(Superseded to 703-2693-0637)

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2694-0716

Bracket, Blade Support

$88.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-2696A-0716

Arm, Blade Angle
(Superseded to 603-05175-4021)

$78.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0505

Screw, Hex Cap, 7/16-14 X 1.0 Lg

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4-20 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0964A

Screw, Hex Cap, 5/8-18 X 1.25 Lg GR5

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-3402A

Rod, Blade Pivot, .50 Dia X 10.22 Lg

$39.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0386A

Nut, Hex Slotted, 5/8-18

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 912-0431

Nut, Hex Flanged Lock, 3/8-16

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0359

Nut, Hex Slotted, 3/4-16 GR5

$12.99

$

In Stock, only 2 left!

0

21

Cub Cadet 914-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

22

Cub Cadet 932-0320

Spring, Extension, .38 OD X 3.25 Lg

$10.99

$

In Stock, only 3 left!

0

23

Cub Cadet 936-0272

Washer, Flat, .510 X 1.0 X .06 Thk
(Superseded to 736-0272)

$5.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0315

Washer, Flat, .750 X 1.50 X .120 Thk

$7.49

$

In Stock, only 2 left!

0

25

Cub Cadet 736-0407

Washer, Bell, .45 X 1.0 X .062 Thk

$4.49

$

In Stock, only 3 left!

0
