30250 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210005000) (2001) DECK ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

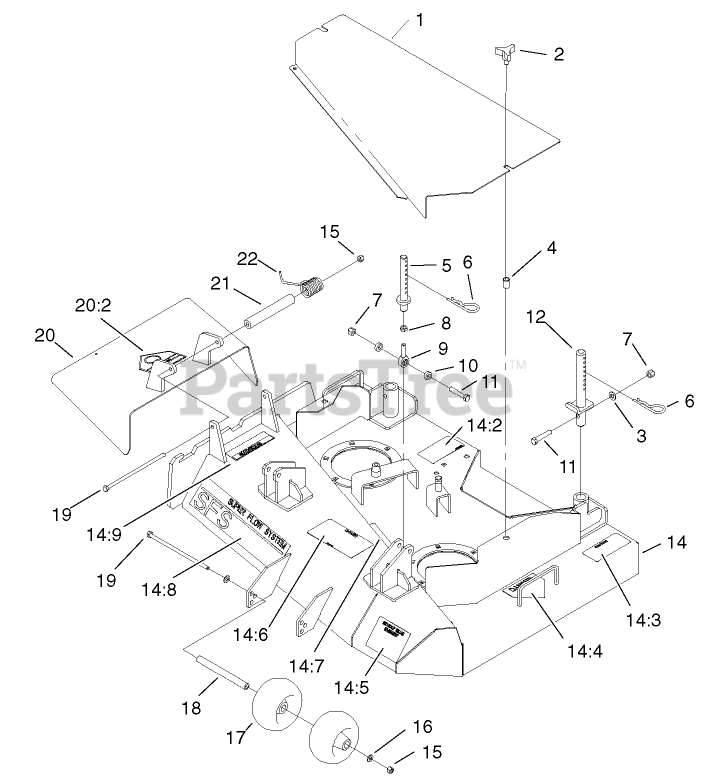

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8170-01

COVER

$

$

Not available

2

Toro 104-8587

KNOB

$18.99

$

In Stock, only 2 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

5

Toro 105-0832

LINK-SUPPORT

$128.99

$

Usually ships in 3-6 days

0

6

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 13

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 13

0

10

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

11

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 105-0831

ROD ASM

$

$

Not available

14

Toro 104-6390

DECK ASM

$5725.99

$

Usually ships in 3-6 days

0

14:2

Toro 104-8185

DECAL

$16.99

$

Usually ships in 3-6 days

0

14:3

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 3 left!

0

14:4

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

14:5

Toro 105-0840

DECAL-SCALP, ANTI

$

$

Not available

14:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

14:7

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

14:8

Toro 98-8038

DECAL-36"

$25.99

$

Usually ships in 3-6 days

0

14:9

Toro 104-8569

DECAL-WARNING

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

18

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

20

Toro 104-7753

DEFLECTOR ASM
(Superseded to 105-4623)

$313.99

$

Usually ships in 3-6 days

0

20:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

21

Toro 104-8555

SPACER-MOUNTING, DEFLECTOR
(Superseded to 105-4622)

$10.99

$

In Stock, only 4 left!

0

22

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0
