30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 220000001 - 220999999) (2002) TRANSMISSION AND IDLER PULLEY ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

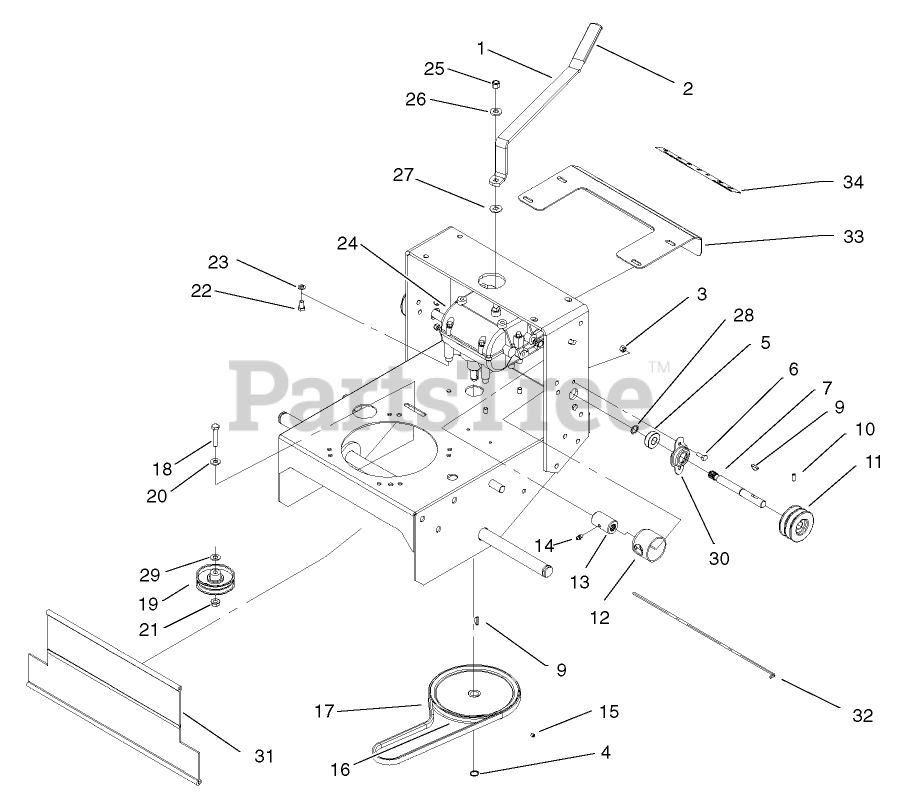

TRANSMISSION AND IDLER PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3274-03

LEVER-SHIFT

$51.99

$

In Stock, only 1 left!

0

2

Toro 47-1970

GRIP

$15.99

$

Usually ships in 3-6 days

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

5

Toro 1-323252

BEARING-SHAFT

$18.99

$

In Stock, Qty 8

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-1102

SHAFT-OUTPUT

$83.99

$

In Stock, only 1 left!

0

9

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

10

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

11

Toro 105-0828

PULLEY-TRANSMISSION
(Superseded to 105-2698)

$55.99

$

In Stock, only 1 left!

0

12

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 3 left!

0

13

Toro 98-0789

COUPLER
(Superseded to 1-323680)

$41.99

$

In Stock, only 4 left!

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 15

0

15

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

16

Toro 51-4190

PULLEY-DRIVEN

$79.99

$

In Stock, only 2 left!

0

17

Toro 26-9671

BELT V

$35.99

$

In Stock, only 3 left!

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 51-4810

PULLEY-IDLER

$41.99

$

In Stock, only 1 left!

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 1-323500

TRANSMISSION
(Superseded to 137-4105)

$620.99

$

In Stock, only 3 left!

0

25

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 1-323379

WASHER

$3.49

$

In Stock, only 1 left!

0

28

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 1-323254

FLANGE-OUTPUT

$10.99

$

In Stock, Qty 10

0

31

Toro 95-1526

SHIELD-TRAILING

$78.99

$

Usually ships in 3-6 days

0

32

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

33

Toro 104-8102-01

PLATE-GATE, SHIFT

$

$

Not available

34

Toro 98-3256

DECAL-SPEED, GROUND

$16.99

$

Usually ships in 3-6 days

0
