30257 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210005001 - 210999999) (2001) HANDLE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

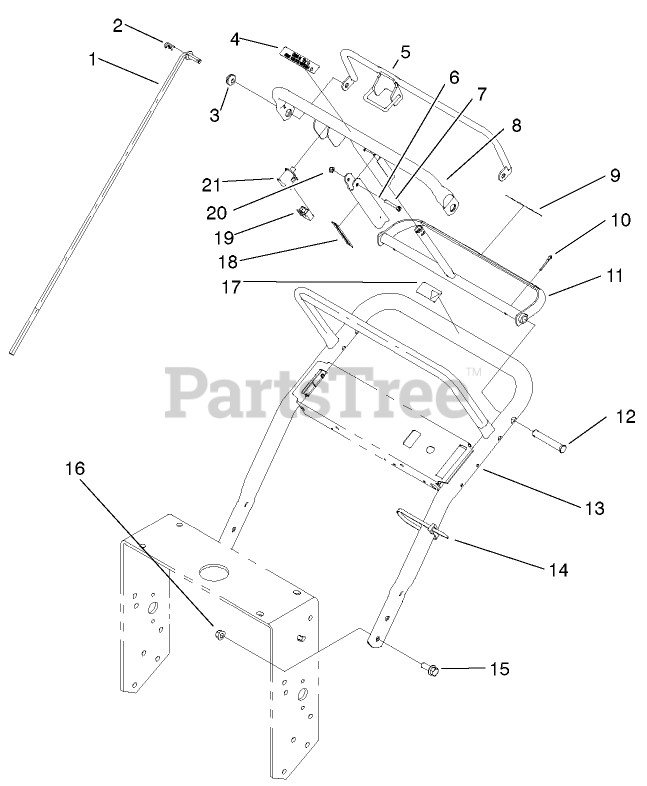

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-7631

ROD-CONTROL

$61.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

3

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

4

Toro 82-2290

DECAL

$11.99

$

Usually ships in 3-6 days

0

5

Toro 82-7680-03

BAIL

$148.99

$

Usually ships in 3-6 days

0

6

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

7

Toro 32105-1

SCREW-SHH

$1.49

$

In Stock, Qty 8

0

8

Toro 82-7690-03

BAR-CONTROL

$273.99

$

Usually ships in 3-6 days

0

9

Toro 82-2280

DECAL

$9.49

$

In Stock, only 1 left!

0

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

11

Toro 99-8501-03

CONTROL-PIVOT
(Superseded to 106-5477-03)

$196.99

$

Usually ships in 3-6 days

0

12

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

13

Toro 67-6440-03

HANDLE-UPPER

$

$

Not available

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 15

0

16

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

18

Toro 52-2010

DECAL-LEVER, PARKING

$5.49

$

Usually ships in 3-6 days

0

19

Toro 218-595

CONNECTOR-BODY

$

$

Not available

20

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

21

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0
