30260 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 210005001 - 210010000) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 17hp

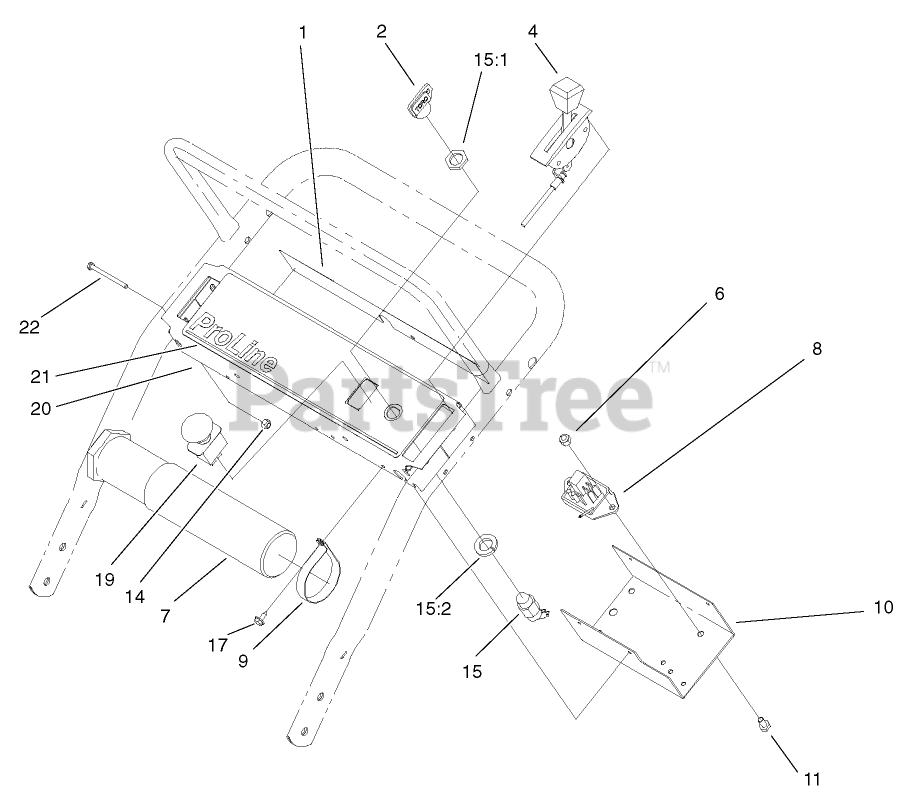

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0884

DECAL-DANGER

$18.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

4

Toro 100-6450

CONTROL-THROTTLE

$143.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 74-0720

TUBE-MANUAL

$25.99

$

Usually ships in 3-6 days

0

8

Toro 104-8141

MODULE-DELAY

$72.99

$

In Stock, Qty 8

0

9

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

10

Toro 93-1187-03

PANEL-BOTTOM

$52.99

$

Usually ships in 3-6 days

0

11

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, Qty 6

0

15:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

15:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 17

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-8140

SWITCH-PTO

$84.99

$

In Stock, only 4 left!

0

20

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

21

Toro 104-8180

DECAL-PANEL, CONTROL

$

$

Not available

22

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0
