30261 TE - Toro 91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp (SN: 230000001 - 230999999) (2003) CONTROL PANEL ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp

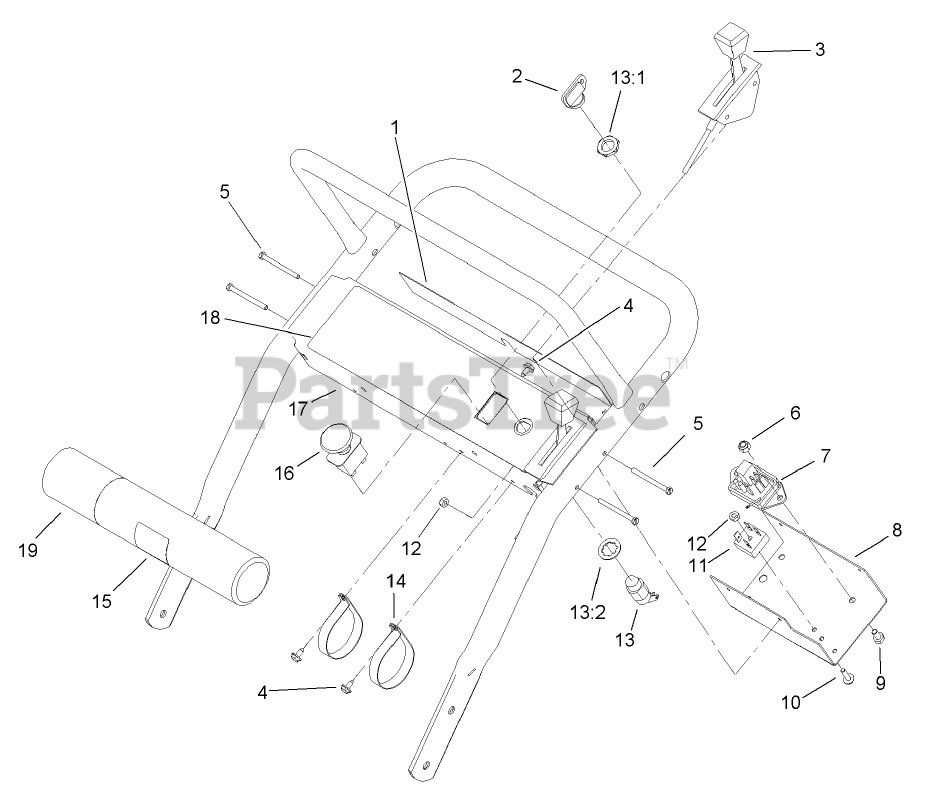

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5519

DECAL-DANGER
(Superseded to 140-1877)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

3

Toro 74-0740

CONTROL-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 104-8141

MODULE-DELAY

$65.99

$

In Stock, Qty 11

0

8

Toro 93-1187-03

PANEL-BOTTOM

$48.99

$

Usually ships in 3-6 days

0

9

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

11

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 2 left!

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

13:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 11

0

14

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

15

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

16

Toro 104-8140

SWITCH-PTO

$77.99

$

In Stock, only 1 left!

0

17

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

18

Toro 106-5500

DECAL

$

$

Not available

19

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0
