30280 - Toro 60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY NO. 112-9701 Parts Diagram

60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

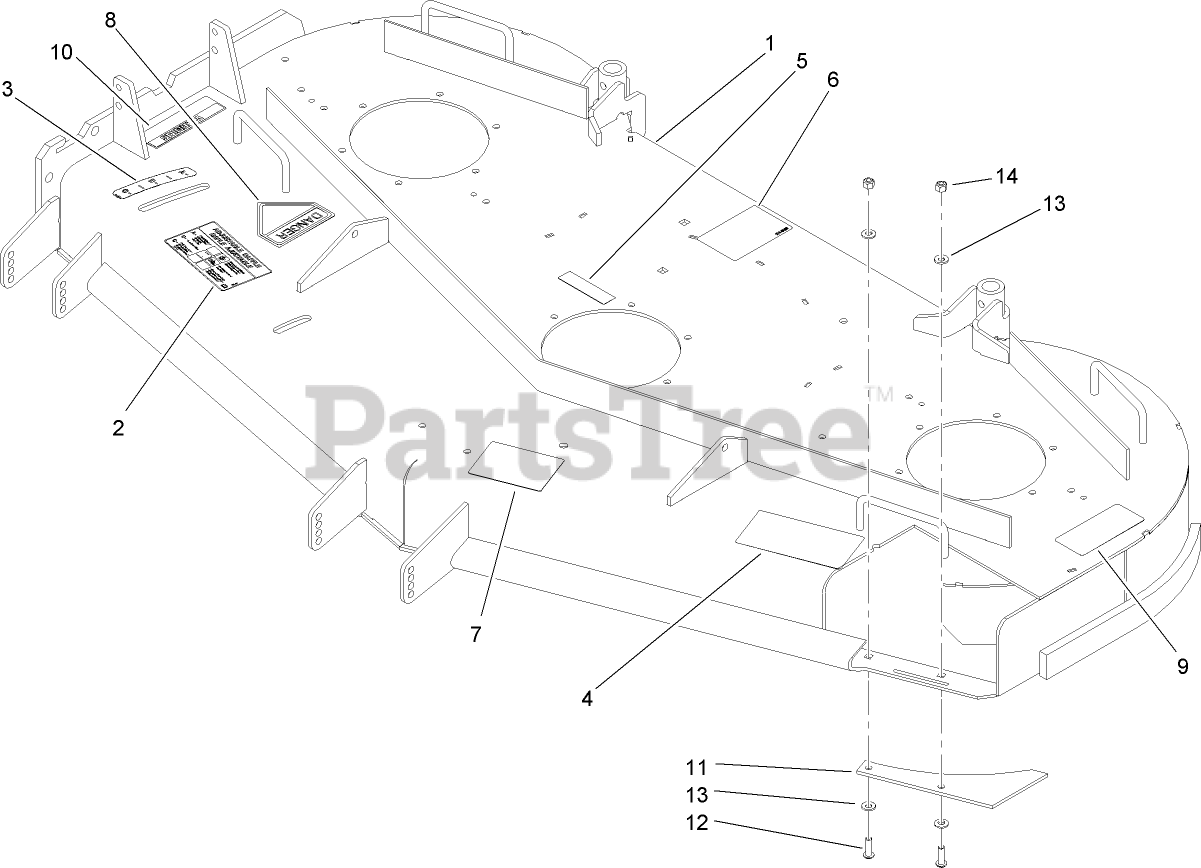

DECK ASSEMBLY NO. 112-9701 Parts Diagram

  • Title

1

Deck ASM

Note: Not serviced separately

$

$

Not available

2

Toro 110-2068

DECAL-ADJUSTMENT, BAFFLE

$12.99

$

In Stock, only 4 left!

0

3

Toro 110-2067

DECAL-SETTING, BAFFLE

$8.49

$

In Stock, Qty 5

0

4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, only 4 left!

0

5

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 2 left!

0

6

Toro 104-8186

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 105-7798

DECAL-SCALP, ANTI

$28.99

$

In Stock, only 2 left!

0

8

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 4 left!

0

9

Toro 68-8340

DECAL-TORQUE

$22.99

$

In Stock, only 2 left!

0

10

Toro 104-8569

DECAL-WARNING

$

$

Not available

11

Toro 107-3137

PLATE-TURBO

$51.99

$

Usually ships in 3-6 days

0

12

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

13

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 18

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
