30280 - Toro 60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) WHEEL MOTOR ASSEMBLY NO. 112-8722 Parts Diagram

60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

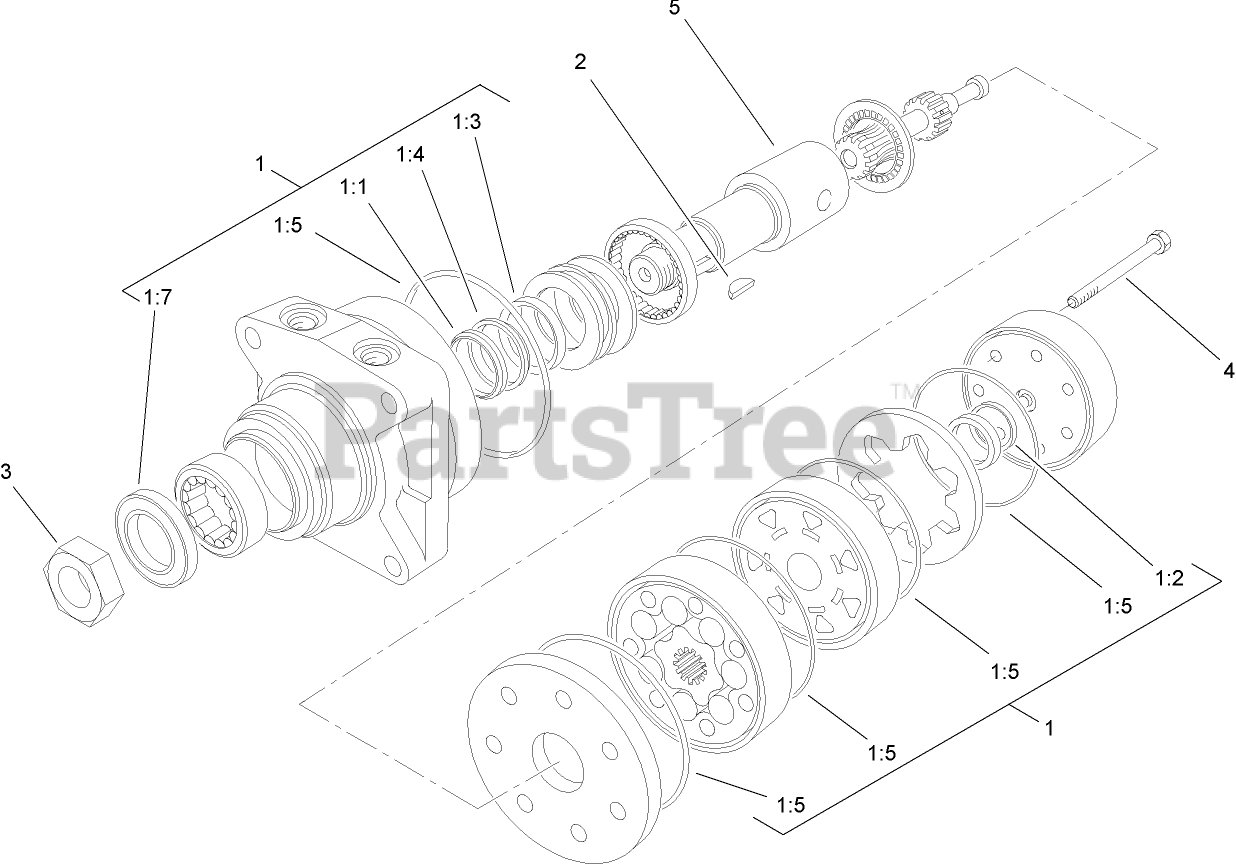

WHEEL MOTOR ASSEMBLY NO. 112-8722 Parts Diagram

  • Title

1

Toro 1-000119

SEAL KIT

$201.99

$

In Stock, only 1 left!

0

1:1

Ring-Back Up

Note: Not serviced separately

$

$

Not available

1:2

Seal-Commutator

Note: Not serviced separately

$

$

Not available

1:3

SEAL-SHAFT (VITON)

Note: Not serviced separately

$

$

Not available

1:4

WASHER-BACK UP, STEEL

Note: Not serviced separately

$

$

Not available

1:5

RING-SEAL (VITON)

Note: Not serviced separately

$

$

Not available

1:7

SEAL-DIRT AND WATER

Note: Not serviced separately

$

$

Not available

2

Toro 3257-8

KEY-WOODRUFF

$5.99

$

In Stock, Qty 5

0

3

Toro 85-7310

NUT-MOTOR, WHEEL

$28.99

$

Usually ships in 3-6 days

0

4

Toro 114-3412

BOLT-SPECIAL

$

$

Not available

5

Toro 106-8764

SHAFT-COUPLING

$1026.99

$

Usually ships in 3-6 days

0
