30290 - Toro 36" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210005001 - 210999999) (2001) SPINDLES, PULLEYS AND BELTS ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Hydro Drive, 15hp

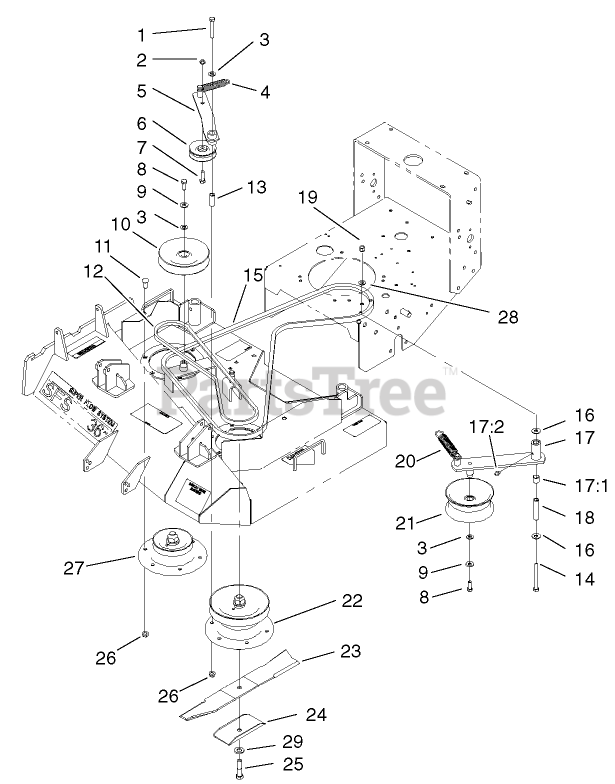

SPINDLES, PULLEYS AND BELTS ASSEMBLY Parts Diagram

  • Title

1

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

2

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 105-2673

SPRING-EXTENSION

$30.99

$

Usually ships in 3-6 days

0

5

Toro 105-0889

IDLER ARM ASM

$172.99

$

Usually ships in 3-6 days

0

6

Toro 51-3660

PULLEY-IDLER

$43.99

$

In Stock, only 2 left!

0

7

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Toro 1-633166

PULLEY-IDLER

$63.99

$

In Stock, Qty 20+

0

11

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 51-3530

V-BELT-DRIVE, DECK

$35.99

$

In Stock, Qty 5

0

13

Toro 51-3641

SLEEVE-PIVOT, IDLER

$21.99

$

In Stock, only 2 left!

0

14

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

15

Toro 105-0886

BELT-DRIVE, PTO

$218.99

$

Usually ships in 3-6 days

0

16

Toro 1-809107

WASHER-HARDENED

$5.99

$

In Stock, only 2 left!

0

17

Toro 104-6370

IDLER ARM ASM

$

$

Not available

17:1

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

17:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 104-6377

TUBE-IDLER

$22.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 104-8161

SPRING-EXTENSION
(Superseded to 105-8443)

$41.99

$

In Stock, only 2 left!

0

21

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$72.99

$

In Stock, only 2 left!

0

22

Toro 104-6315

SPINDLE HOUSING ASM
(Superseded to 106-0802)

$

$

Not available

23

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$21.99

$

In Stock, Qty 5

0

24

Toro 92-9820

STIFFENER-BLADE

$68.99

$

Usually ships in 3-6 days

0

25

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, only 3 left!

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 104-6317

SPINDLE HOUSING ASM
(Superseded to 106-0804)

$747.99

$

Usually ships in 3-6 days

0

28

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0
