30291 TE - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) PARKING BRAKE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

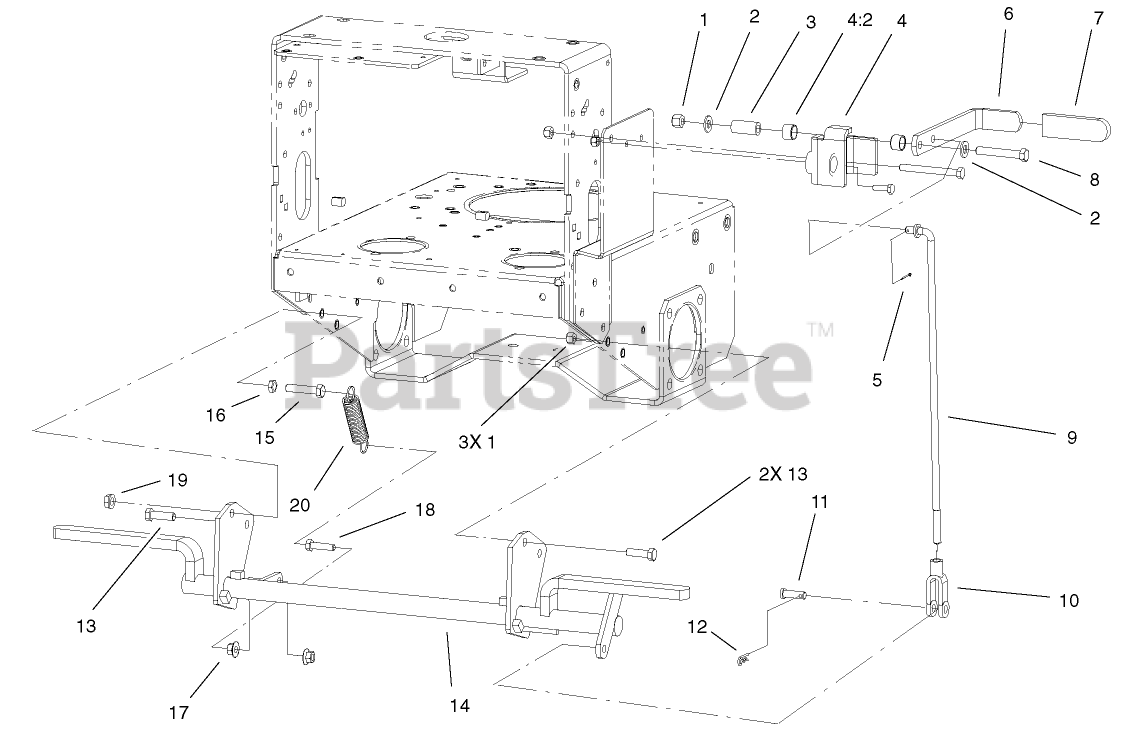

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 105-0897

BUSHING-PIVOT

$

$

Not available

4

Toro 105-2674

BRACKET ASM

$199.99

$

Usually ships in 3-6 days

0

4:2

Toro 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

5

Toro 3272-4

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

6

Toro 105-0881-01

HANDLE-PARKING BRAKE

$

$

Not available

7

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 8

0

8

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 105-0880

ROD-LINK

$

$

Not available

10

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, only 1 left!

0

11

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

12

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-0865-01

BRAKE ASM

$560.99

$

Usually ships in 3-6 days

0

15

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-323161

SPRING-IDLER

$11.99

$

In Stock, Qty 6

0
