30291 TE - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) WHEEL MOTOR AND TIRE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

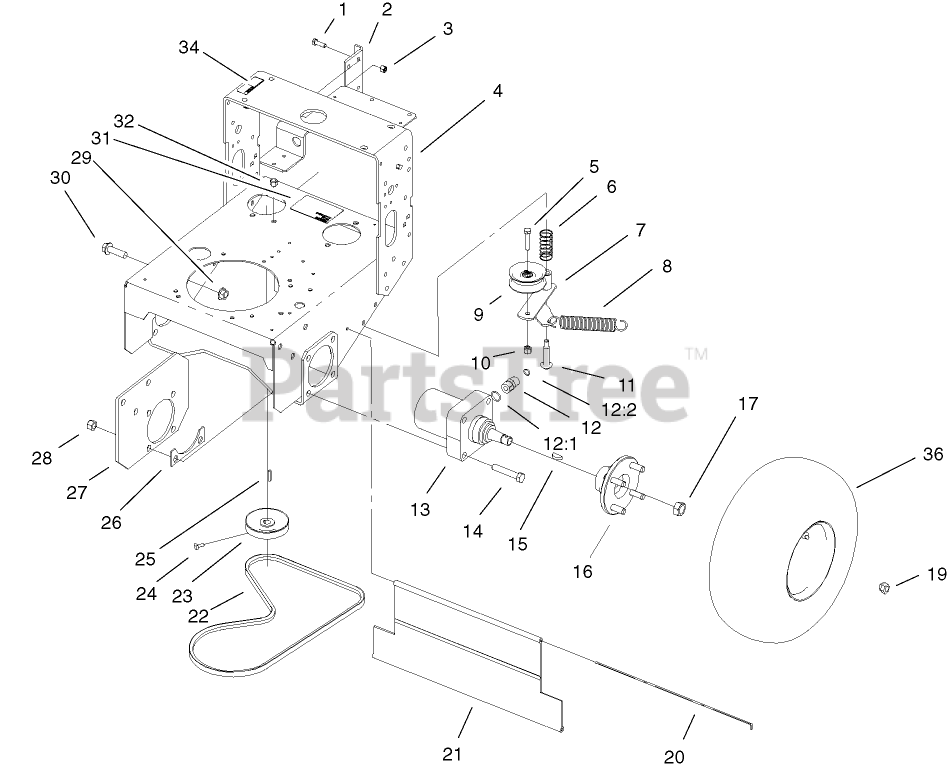

WHEEL MOTOR AND TIRE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-0876-01

BRACKET-BUSHING

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-1100-01

FRAME ASM

$

$

Not available

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 88-1880

SPRING-COMPRESSION

$

$

Not available

7

Toro 86-4770

IDLER LEVER ASM

$117.99

$

Usually ships in 3-6 days

0

8

Toro 68-2190

SPRING

$81.99

$

Usually ships in 3-6 days

0

9

Toro 62-4540

PULLEY

$101.99

$

In Stock, only 2 left!

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

12

Toro 340-6

FITTING-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

12:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

13

Toro 104-1171

HYD MOTOR ASM

$1264.99

$

Usually ships in 3-6 days

0

14

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

0

15

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 3 left!

0

16

Toro 105-0800

WHEEL HUB ASM

$341.99

$

Usually ships in 3-6 days

0

17

Toro 85-7310

NUT-MOTOR, WHEEL

$28.99

$

Usually ships in 3-6 days

0

19

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 16

0

20

Toro 95-1529

ROD-SHIELD

$5.99

$

Usually ships in 3-6 days

0

21

Toro 95-1526

SHIELD-TRAILING

$87.99

$

Usually ships in 3-6 days

0

22

Toro 82-4110

BELT-V

$

$

Not available

23

Toro 95-1528

PULLEY-PUMP

$

$

Not available

24

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

25

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

26

Toro 86-4740-01

SPACER-FRAME

$

$

Not available

27

Toro 104-6326-01

PLATE-FRAME

$

$

Not available

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 9

0

30

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

31

Toro 95-5851

DECAL-VALVE

$

$

Not available

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

34

Toro 93-9353

DECAL-SHUT OFF, FUEL

$

$

Not available

36

Toro 104-1198

WHEEL AND TIRE ASM

$382.99

$

Usually ships in 3-6 days

0
